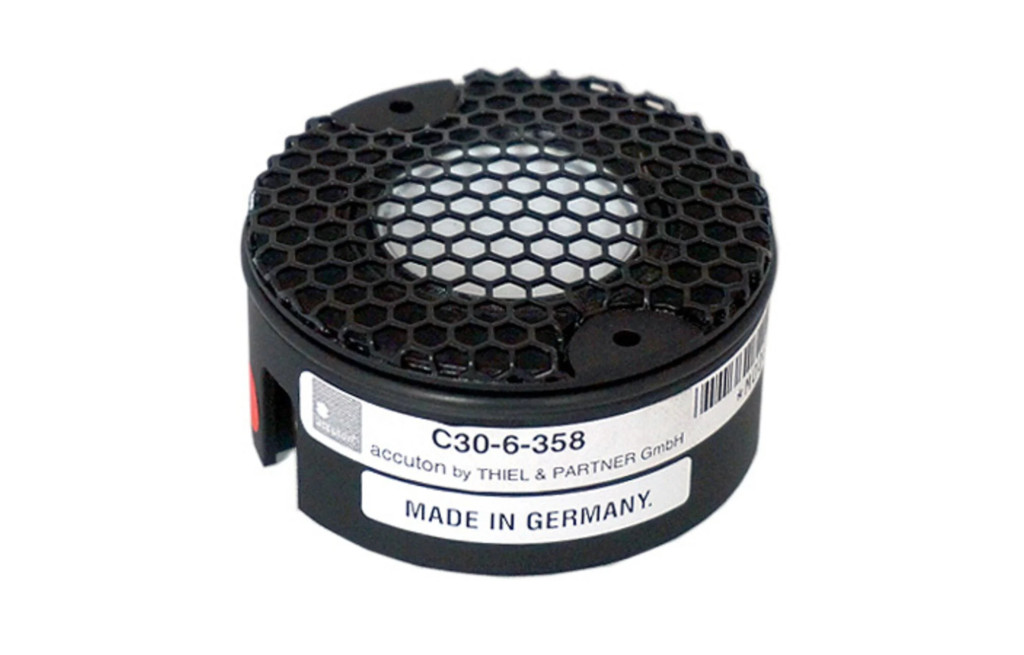

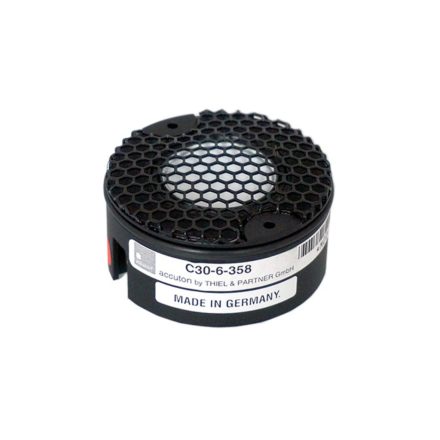

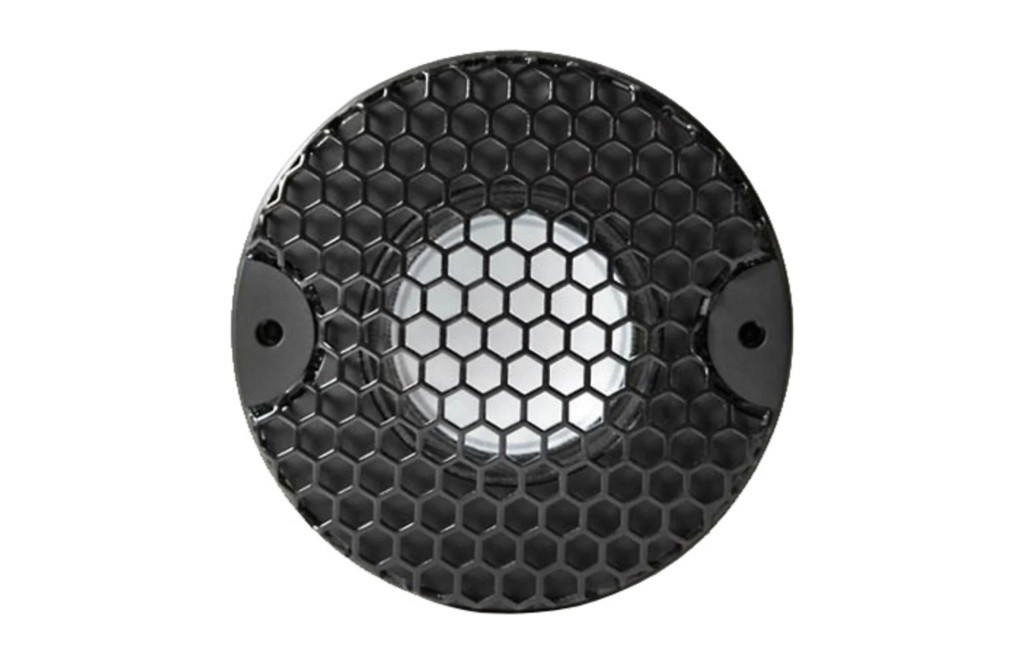

The C30-6-358 is a 1.2 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required.
Highlights
full featured cell concept
underhung motor design
vented vc & pole piece
no ferrofluid filling
1800 HZ - 25000 HZ
Product details

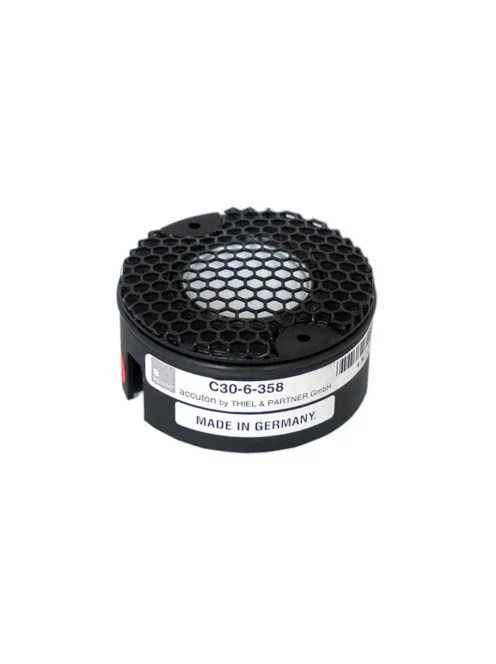

Accuton C30-6-358 1,2'' Ceramic Cell Tweeter
The Accuton C30-6-358 features an unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion around 0.07% @ 2.83V and 0.5% max. @ 110dB. The new designed soft fabric surround centers the moving parts with improved linearity.
The C30-6-358 is part of the Cell Concept series of drivers from Accuton. The Cell Concept is a unique approach to driver design that uses a series of small cells to create a large diaphragm area. This allows for greater control over the diaphragm movement and results in improved sound quality
Cone / Dome Diameter1.2" (30 mm)
Power Handling (RMS)120 Watts
Impedance (Z)6 Ω
Sensitivity (SPL at 1m / 2.83V)93.5 dB
Resonant Frequency (Fs)826 Hz
DC Resistance (Re)5.8 Ω
Voice Coil Inductance (Le)0.01 mH
Mechanical Q (Qms)2.54
Electromagnetic Q (Qes)0.81
Total Q (Qts)0.62
Overall Outside Diameter57.6 mm
Cutout Diameter58 mm
Depth28mm
Diaphragm MaterialCeramic
Recommended cut frequency1800 Hz
