Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use or maybe even all of them? Then boy, do I have news for you! The brand new Up2Stream Amp V3 is here to satisfy all your needs!
Highlights
- Wireless streamer and amplifier in one
- Bluetooth 5.0 and Wi-Fi streaming using the free app
- Supports multi-room use.
Product details

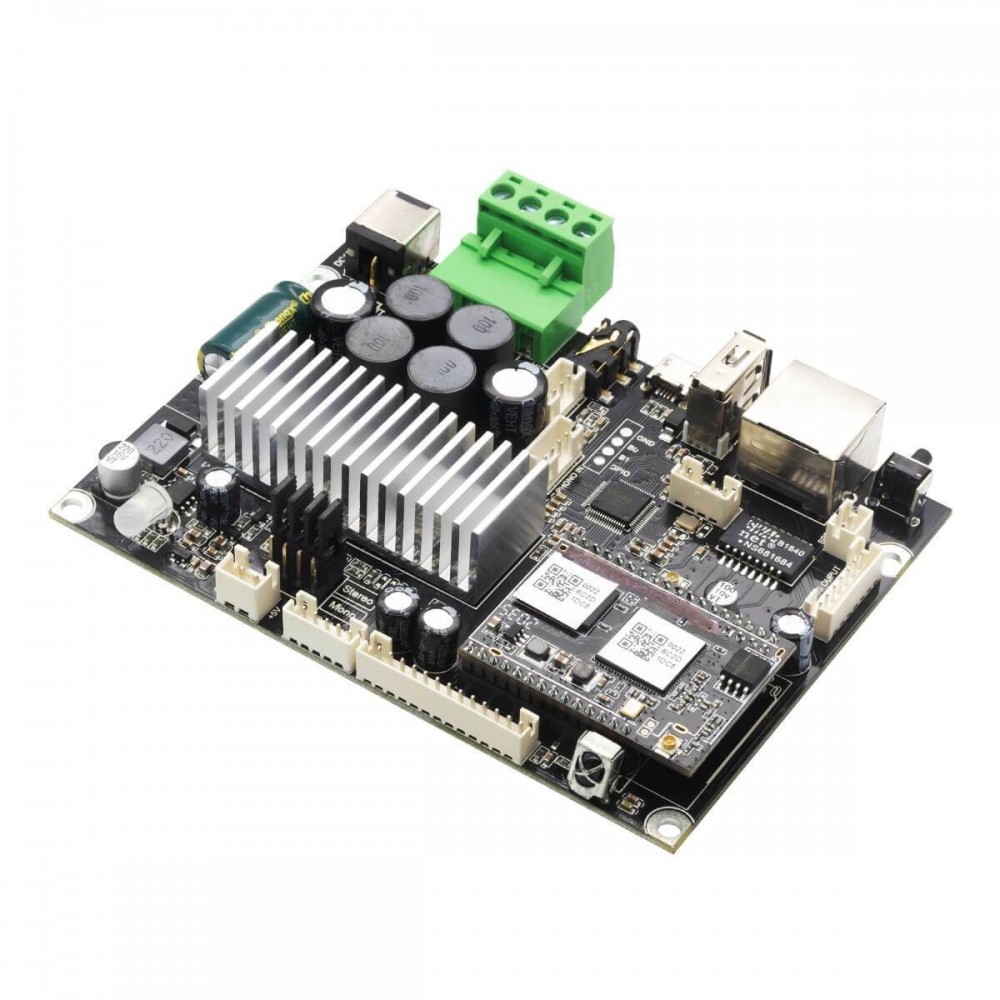

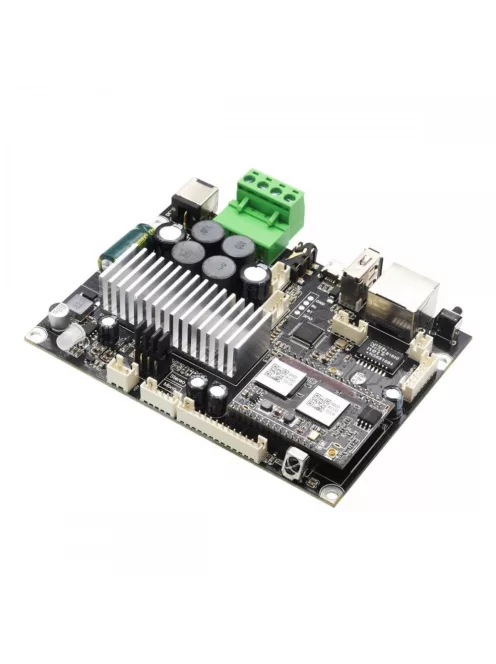

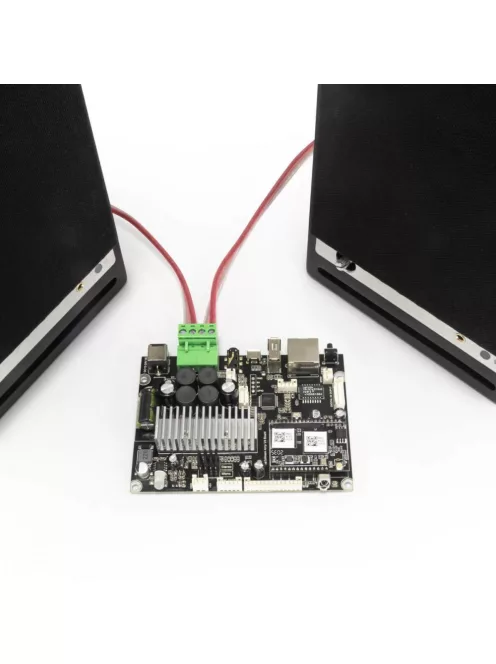

Arylic Up2Stream amp 2.0 V4 WiFi and Bluetooth 5.0 Stereo Amplifier Board
Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use, or maybe even all of them? Boy, do I have good news for you! The brand new Up2Stream Amp is here to satisfy all your needs!
This amplifier can stream music off of any reputable streaming service using its free Android and iOS app; Wi-Fi, Bluetooth 5.0, DLNA, AirPlay, Spotify, Deezer, Tidal, Qobuz, iheartRadio, Napster, internet radio you name it. Not only is the app very useful for uncompressed music streaming, but it also allows you to change the name of every Arylic product on your network and to set up a multi-room sound system.
The amplifier uses a powerful low distortion class D amplifier chip outputting up to 50 Watts per channel into 4 Ohms. It features every connection one may need and even has a USB port that can either be used as a USB DAC or for USB storage of your favorite tracks.
To control the amplifier, the free app, a PC or the optional remote control can be used.
Difference between V3 and V4

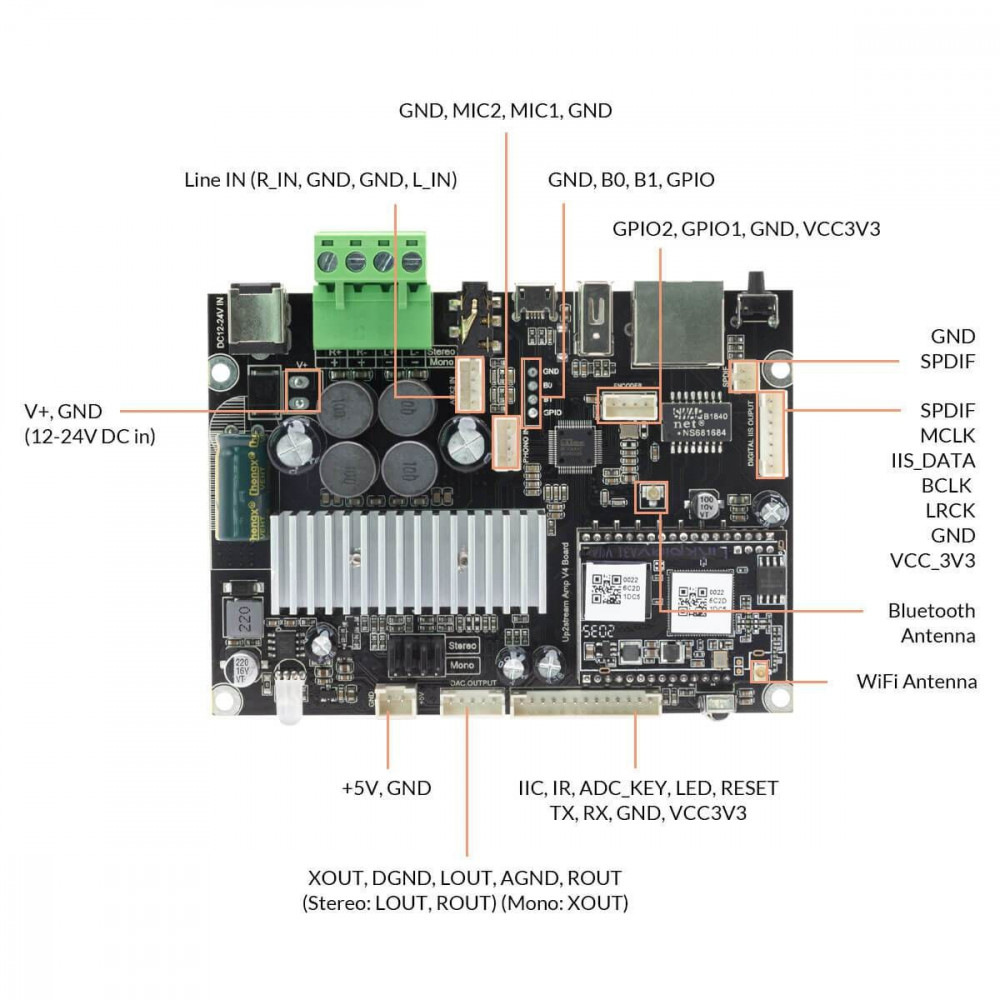

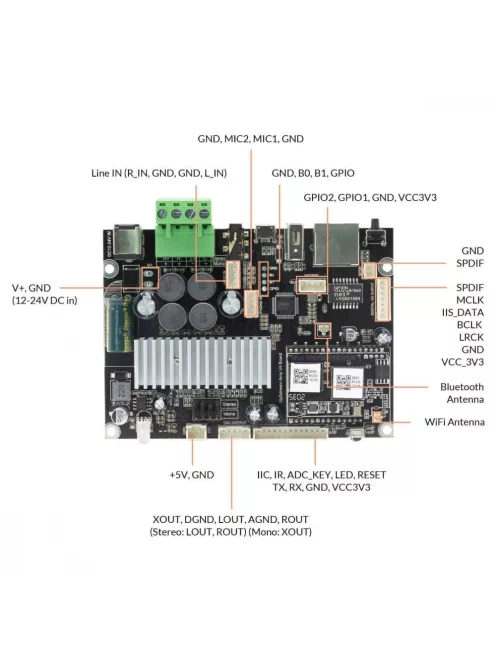

The version 4 has received a hardware revision, which supports more features with ACPWorkbench Audio effect tools. Like adjust L/R balance, L/R EQ settings etc. And ads more DIY pins like I2S and DAC output, so you have more options to connect DIY modules.
What’s in the box?
- Up2Stream 2.0 Amp
- 4-pin analog connector
- 4-pin cable
- Screw Driver
- Wi-Fi Antenna
- User manual
Warning:Up2Stream Amp 2.0 V4 must use 12V-26 VDC input, higher voltage power supply may damage the board.
Rated power output (RMS): 2 x 50 watts at 4 ohms (21 V)
Minimum load: 4 Ohms
Signal-to-noise ratio (SNR): 91 dB
Distortion: 0.03 % THD at 1 kHz, 50 Watts
Frequency response: 20 - 20,000 Hz
DAC: micro-USB DAC
Maximum sampling rate: up to 24bit, 192kHZ
Amplifier classification: Class D
Speaker output channels: Left and Right
Analog in/out: 2/1
USB: USB power, USB DAC, USB storage
Network connection: Single 10/100M RJ45
Bluetooth: Bluetooth 5.0
Wi-Fi: IEEE802.11 b/g/n 2.4G
Remote control: IR remote compatible
App control: Free Android and iOS app
Accepted file formats: FLAC, MP3, AAC, AAC+, ALAC, APE, WAVE
Multi zone/room: App supports Multi-Room playback
Power requirements: DC 12V-26V 4A
Power inlet connector: 5.5 mm x 2.1 mm DC plug
Dimensions (D x W x H): 80 x 100 x 20 mm
