Airplay 2 Compatible: Up2Stream HD DAC lets you stream audio throughout your house via Apple Airplay 2. Using Airplay 2 from your iOS device, you can easily stream music to multiple Apple audio devices at the same time.
192khz/24bits Hi-Res Audio: Up2stream HD DAC supports 1:1 high-fidelity lossless 192khz/24bits audio output. What's more, the high-performance ESS 9038Q2M plays a big role in sound quality. Enjoy high quality sound from high performance hardware with your stereo system.
Spotify Connect & Tidal Connect: With Spotify Connect and Tidal connect compatibility, you can stream music directly from Spotify or Tidal without using our 4Stream app.
Build Your Wireless Streaming Audio System: Perfect to add dual band WiFi, Airplay 2, Spotify Connect, Tidal Connect, and Aptx HD Bluetooth 5.0 wireless capability to your DIY audio projects. Build a wireless speaker, wireless streamer, or convert your traditional stereo system into an advanced wireless multiroom streaming system.
Bring Multiroom Capabilities to Your Next Project: Our wide range of Up2Stream boards are small enough to fit in all kinds of audio projects. Add an amplified streamer inside speaker boxes, or tiny receiver boards inside home theater amps. Their size and powerful connectivity bring new life to vintage gear and new ideas for your next DIY build. *All Arylic products are compatible with each other for multiroom installations.
Stream with HD Music: Up2Stream HD DAC is able to stream with Qobuz HD and Tidal HiFi to give you the true high-resolution audio experience. More HD music will be updated and supported in the future. Along with this HD music, it also supports Spotify, Amazon Music, Deezer, Internet Radio, iHeartRadio, Napster, and more.
Enhanced Up2Stream: The Up2Stream HD DAC is easily expandable, you can add new features to better fit your project. For example, you can add a display panel(coming in the future) to add a visual of the system, an acrylic case for protection, you can also add a button board, a volume knob, an IR receiver, and more. You can find all these expansion board in our Accessories section.
Powerful 4STREAM App: Choose your music source and control playback, set EQ, control multiroom/independent playback, select preset content, control alarm clock, WiFi settings, update firmware and more... All the useful features you need in our free 4STREAM App for iOS & Android.

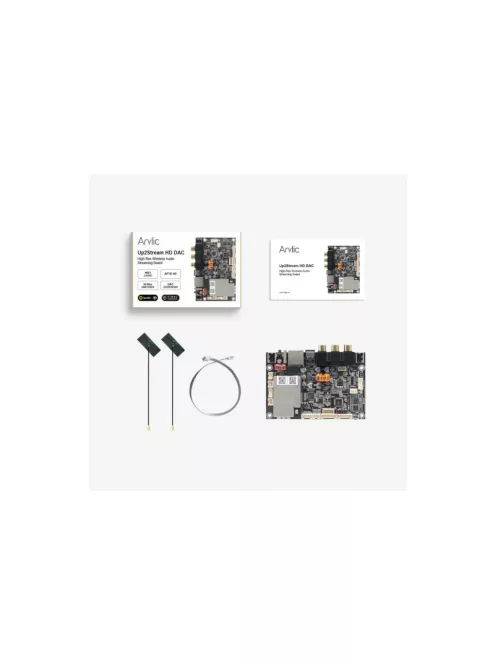

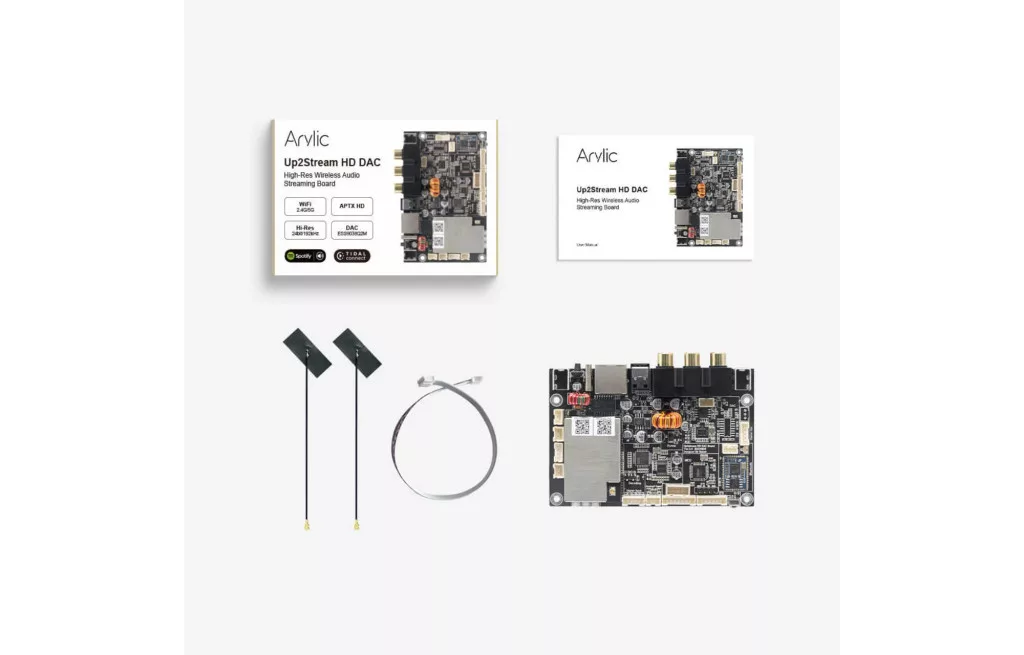

Package Includes
- Up2Stream HD DAC
- Internal Antenna (WiFi & Bluetooth)
- User Manual
- PH2.0 Aux Cable(3 Pin)
Article numberUp2Stream HD DAC
EAN8785256844715
Product typeStreamer
Wireless ConnectivityWiFi IEEE 802.11 b/g/n 2.4G / 5G
Bluetooth 5.0 (support aptX HD)
DAC ChipsetESS ES9038Q2M

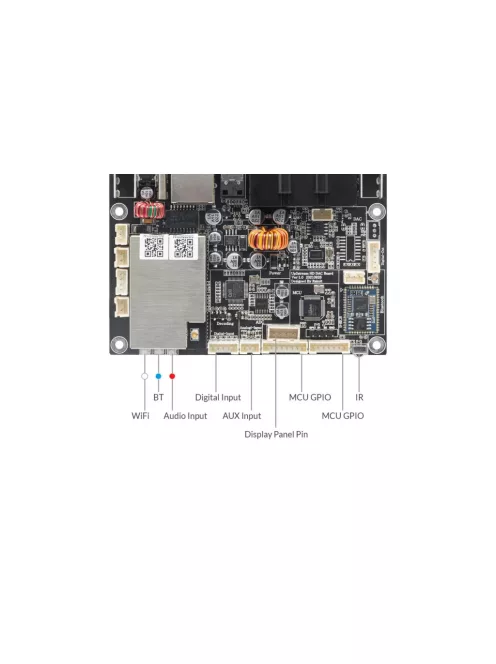

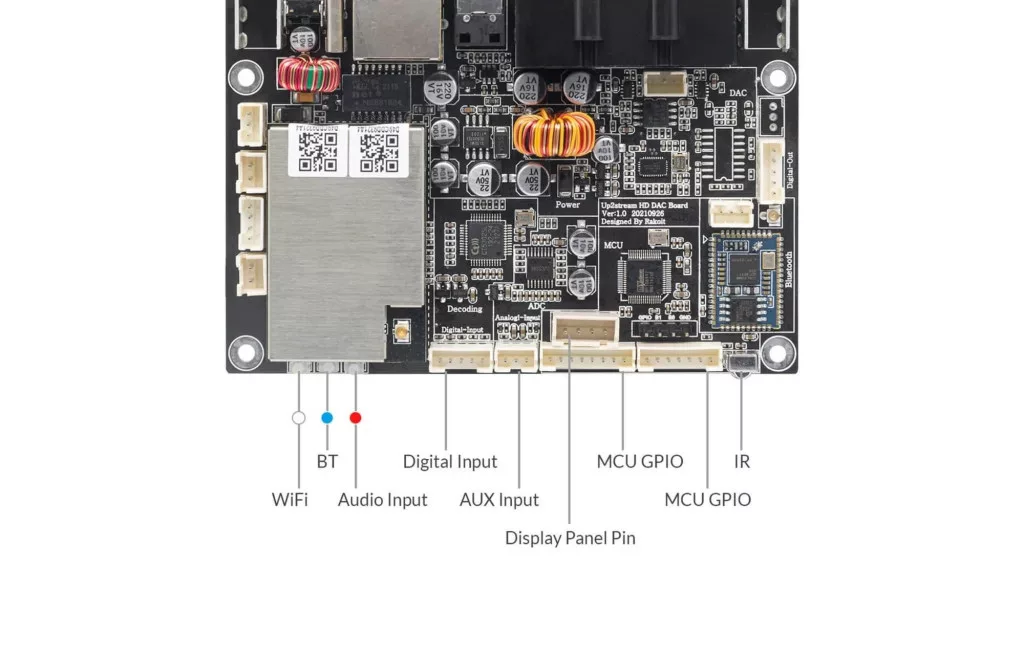

Inputs1x Ethernet RJ45 10/100Mbps
1x Digital input on PCB connector
1x AUX input on PCB connector

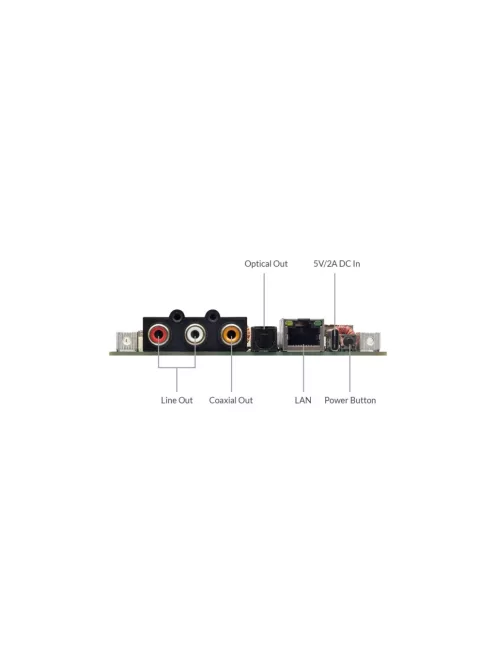

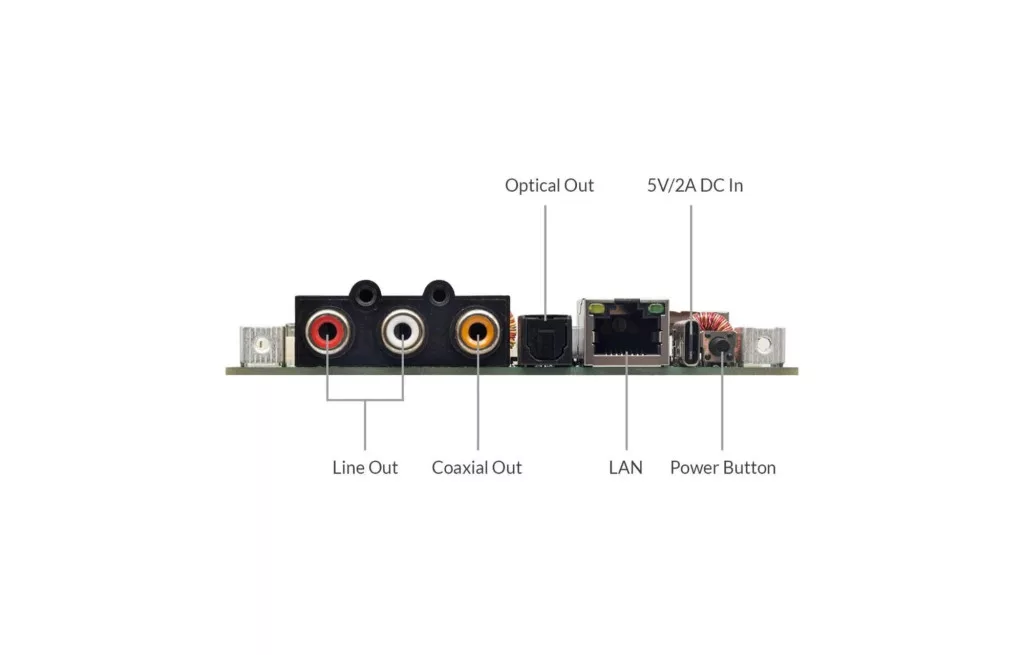

Outputs1x Stereo RCA
1x Coaxial
1x Optical
1x I2S Output on PCB connector
1x AUX Output on PCB connector
Supported streaming protocolsAirPlay 2
DLNA
UPnP
Spotify Connect
Tidal Connect
Qplay
USB CompatibilityUSB Type-C/DC Input
Supported file formatsFLAC, MP3, AAC, AAC+, ALAC, WAV
Processing resolution & sample rate> 24-bit / 192 kHz
Power requirementsUSB powered
Power consumption5VDC 2A

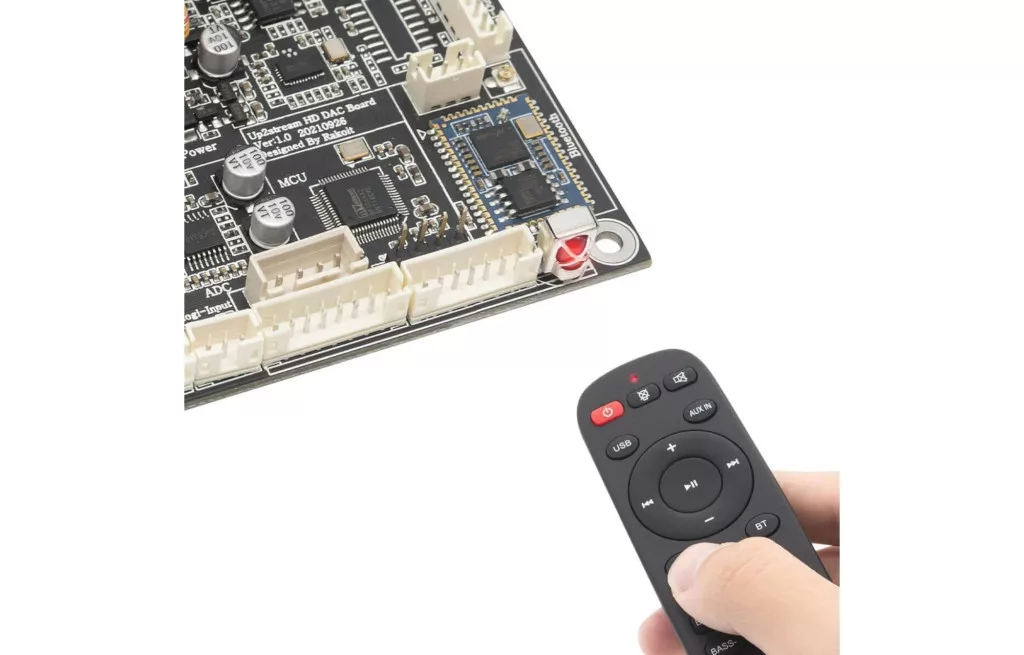

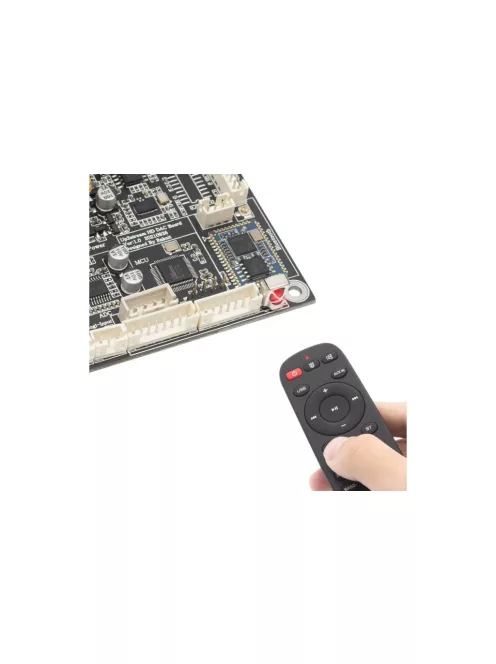

Remote controlSold separately
Dimensions110 x 74 mm
Weight81 gr.
