Audiomatica CLIO Pocket 3 Measurement System

Clio Pocket is a powerful yet portable measurement system from Audiomatica. The system is a combination of multi-platform software, Clio CP-01 Audio Interface hardware and MIC-02 precision microphone.

Highlights

A complete compact loudspeaker measurement and testing system for professionals and hobbyists
Accurately and easily determines Thiele-Small parameters
Measures amplitude, frequency, time calibrated response and distortion
Hardware and software compatible with Windows and Apple Mac OSX

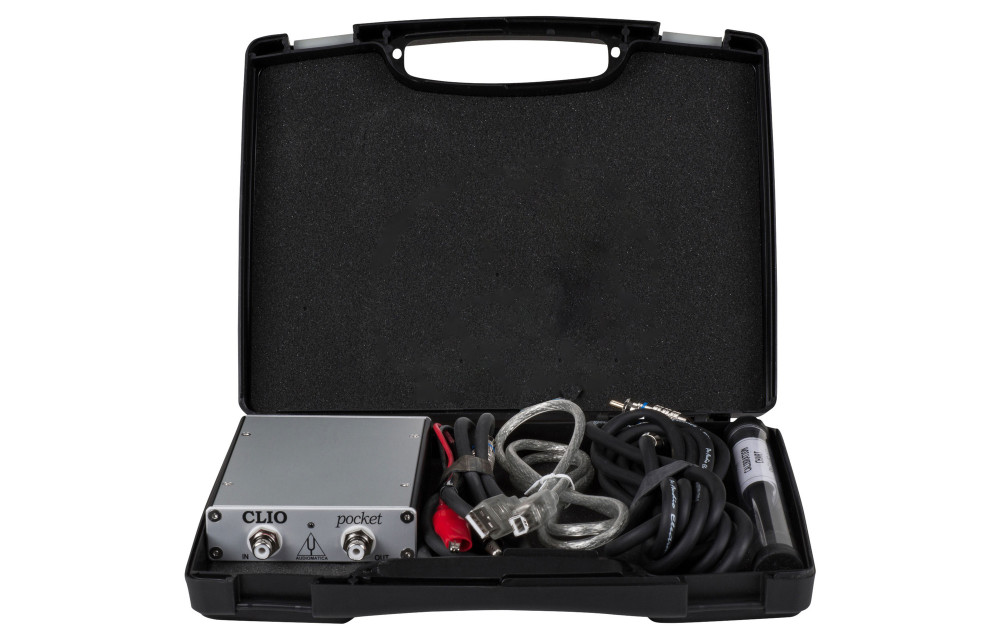

Includes plastic case, audio interface, precision microphone, and required cables

Product details - Audiomatica CLIO Pocket 2.1

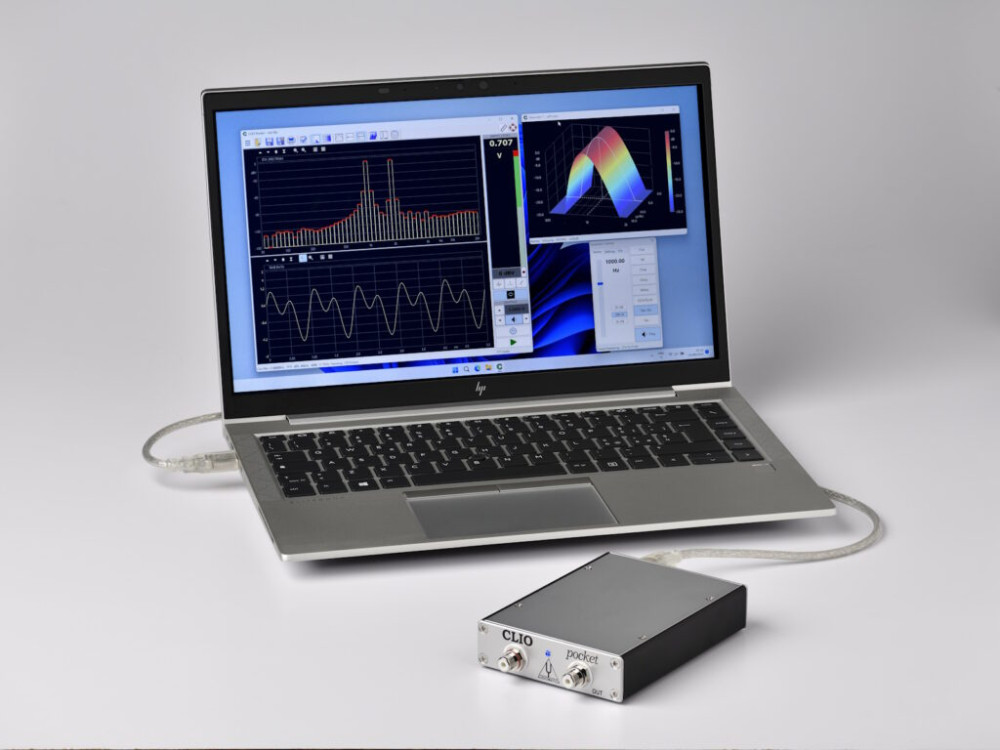

CLIO Pocket is Audiomatica's Electro-Acoustical Multi-Platform measurement system. Thanks to the combination of software and hardware, precise results for acoustical and electrical measurements are easily obtained.

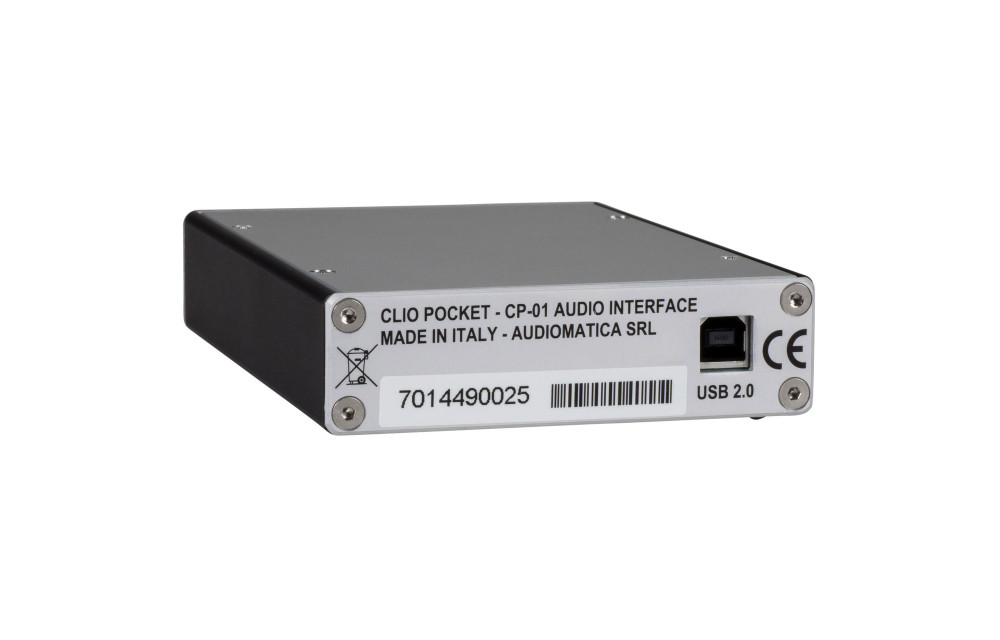

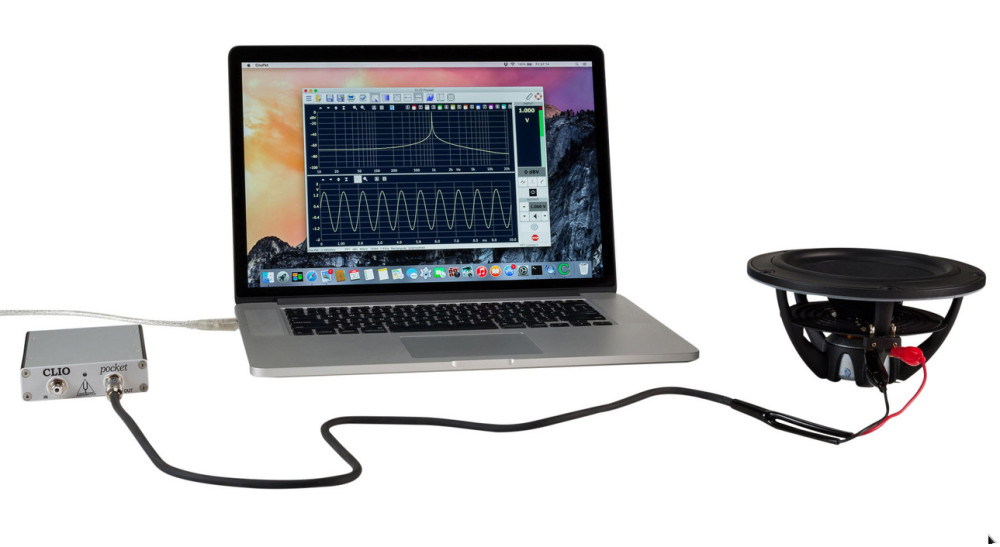

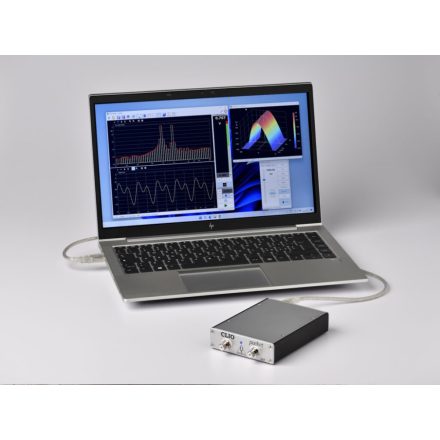

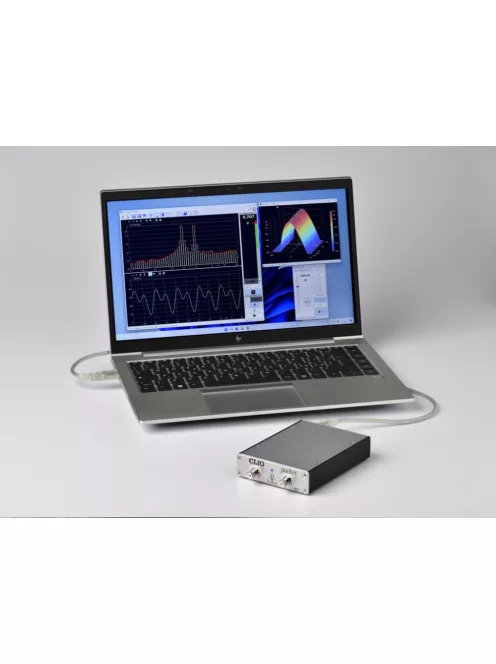

The compact CLIO CP-01 Audio Interface uses an USB 2.0 connection for maximum portability and compatibility with current and future computer hardware architectures. This convenient system operates via multi-platform software, making it compatible with both Windows and Apple Mac OSX. The CLIO Pocket comes with the Audiomatica MIC-02, a precision condenser electret microphone perfectly suited for laboratory and on-field acoustical measurements.

Clio Pocket Features

Self-calibration of Clio CP-01 hardware
Impulse Response analysis using LogChirp stimulus: possible application are anechoic frequency response measurement of transducers, impedance measurements & distortion measurements

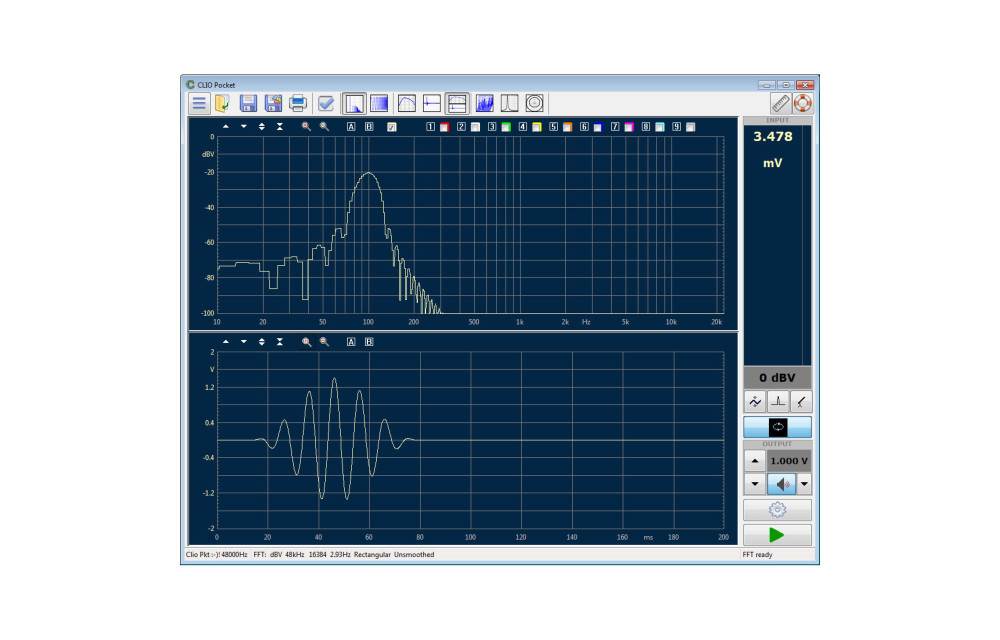

FFT analysis with powerful trigger functions
RLC meter with component selection functions
Thiele and Small parameters calculation with Rdc reading

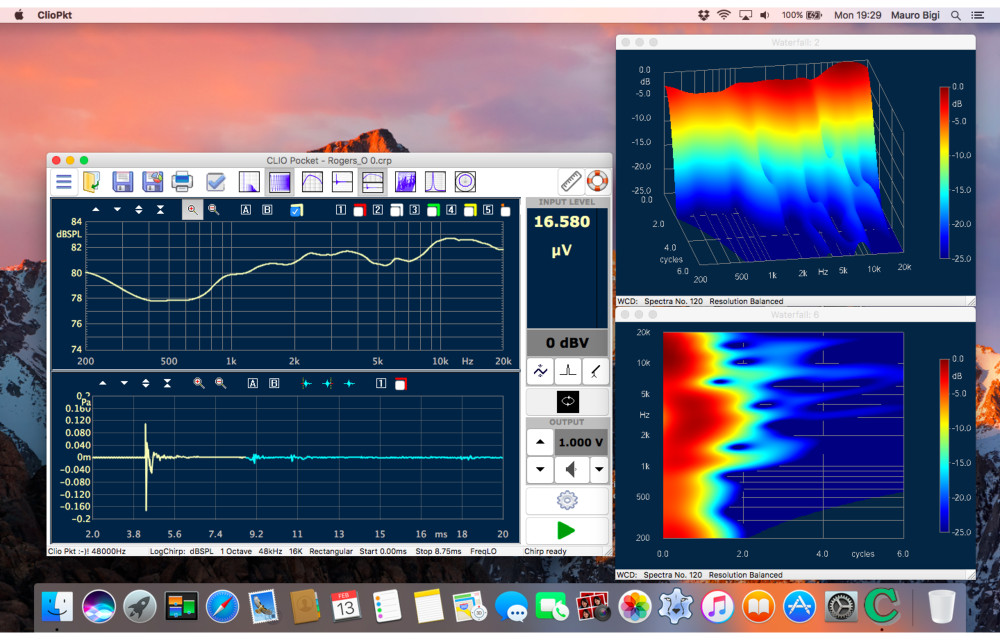

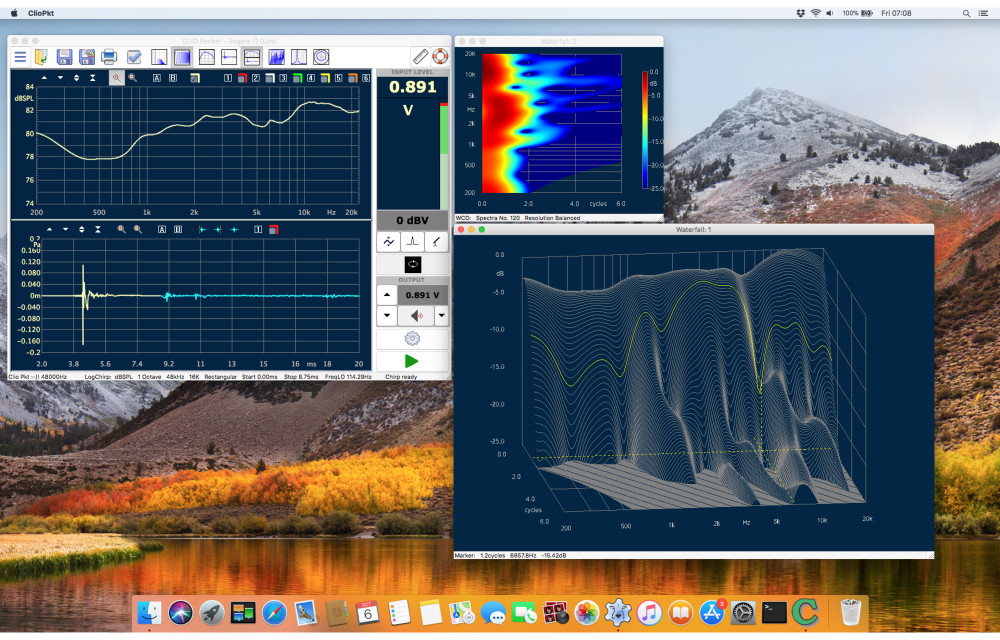

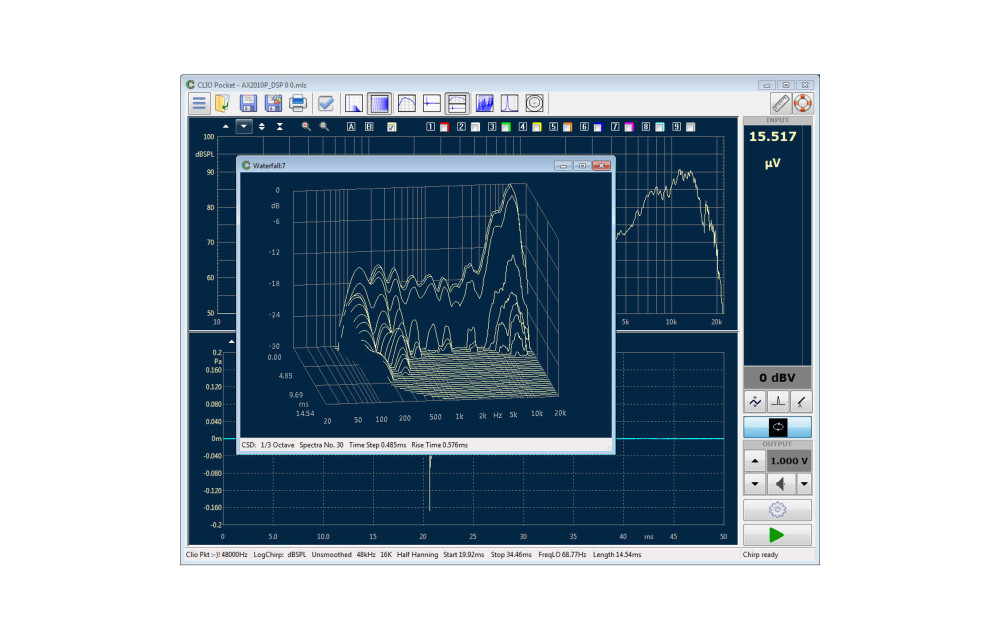

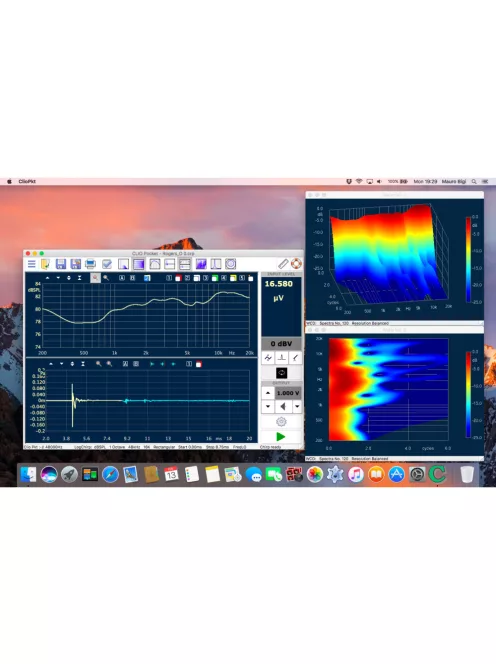

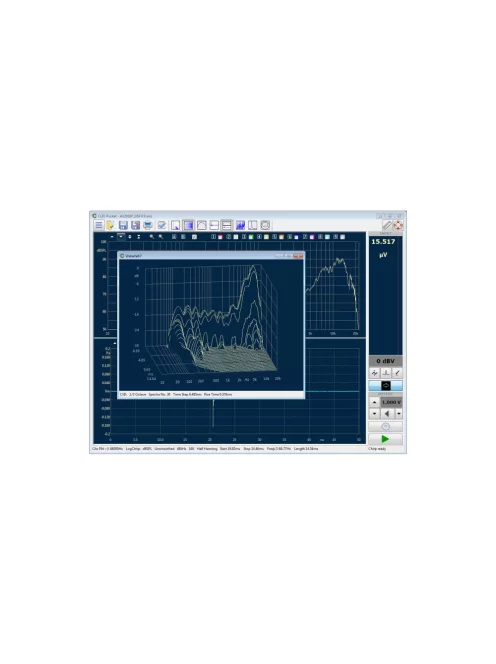

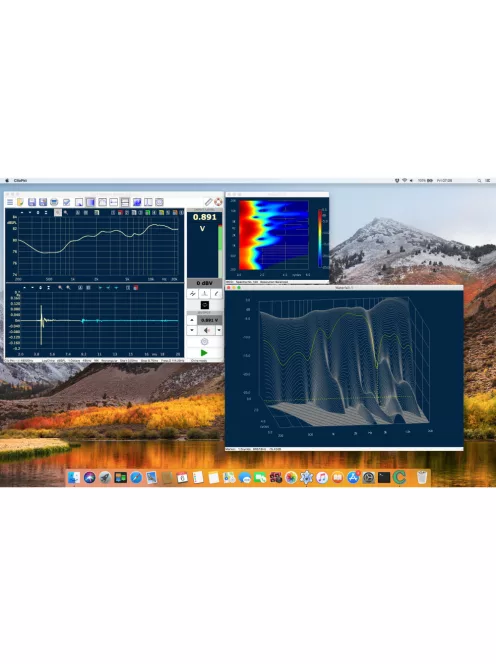

Waterfall CSD and Cycle Wavelet analysis

MIC-02 specifications

TYPE: Condenser Electret
Accuracy (direct field): ±1 dB 20Hz÷10KHz, ±2 dB 10÷20KHz
Maximum level: 130 dB SPL
Sensitivity (average): 13mV/Pa
Dimensions: 8mm diameter, 12 cm long

What’s In The Box?

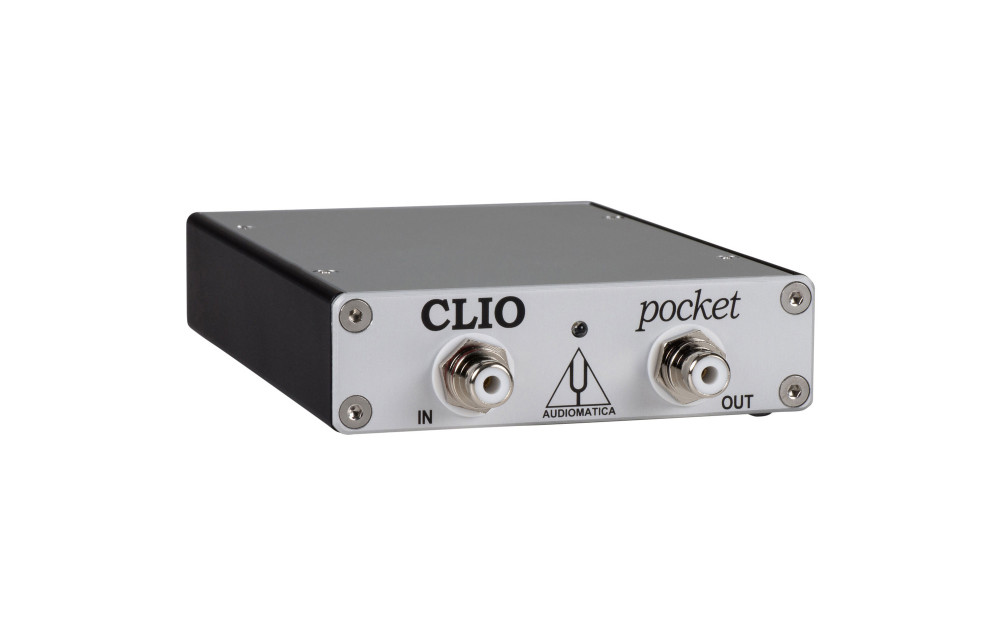

The CP-01 audio interface
The Clio Pocket software on SD memory card
The microphone MIC-02
One USB 2.0 cable
One RCA to RCA 2.7 meter long microphone cable
One RCA to alligators impedance cable
