The ETON 3-212/C8/25 HEX Bass-mid Woofer is a unique and innovative driver that delivers exceptional sound quality and versatility. Its unique features, such as its 3-layer Hexacone Sandwich cone, phase plug construction, and specially designed ferrite magnet, combine to create a driver that is truly one of a kind.
Highlights
High-end mini monitor speakers
Autosound applications
2-way bookshelf speakers
Center channel speakers
Satellite speakers in a surround sound system
Product details

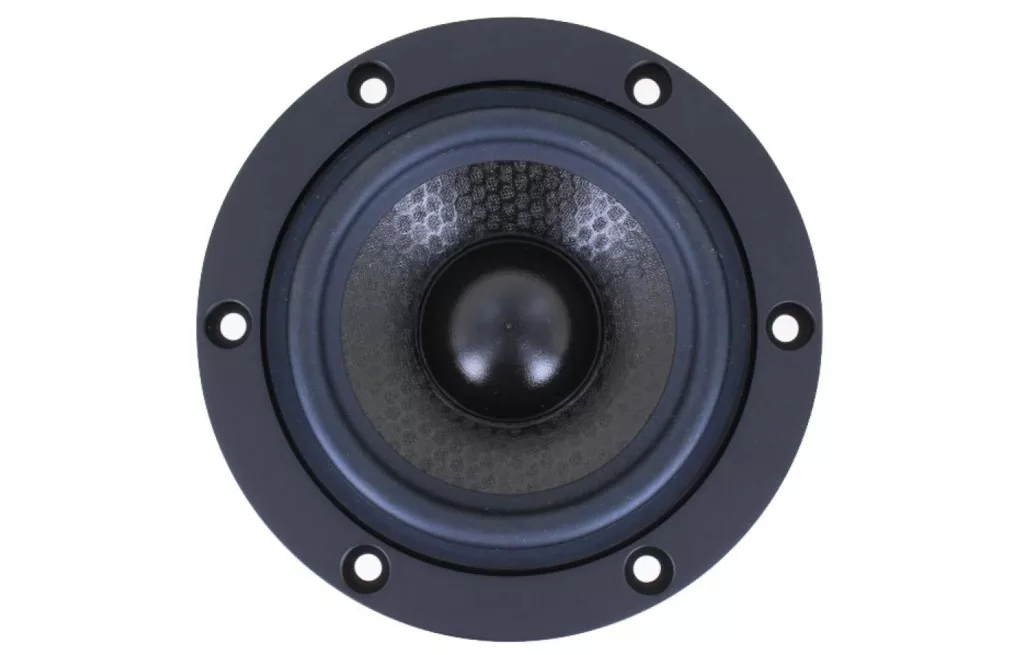

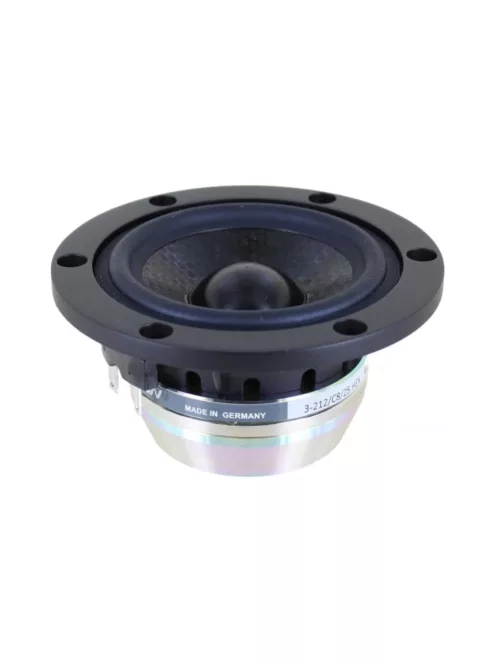

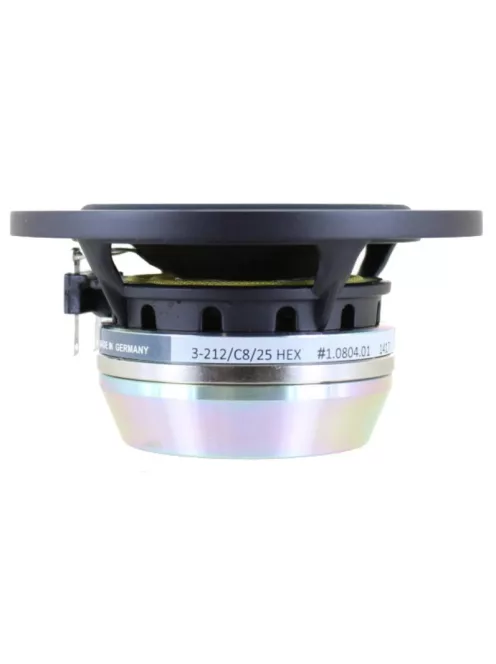

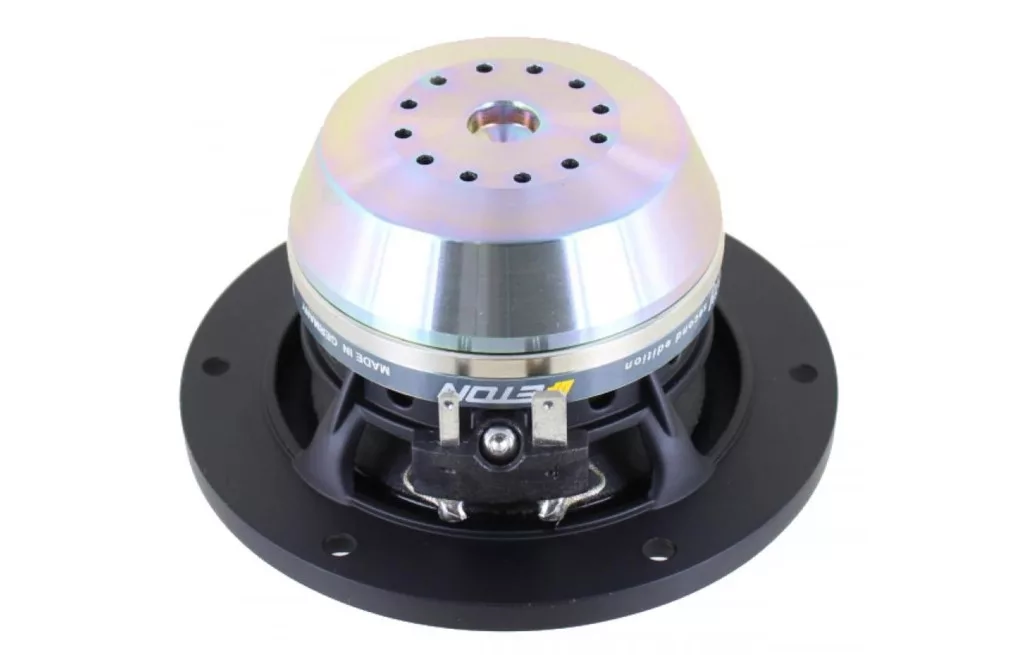

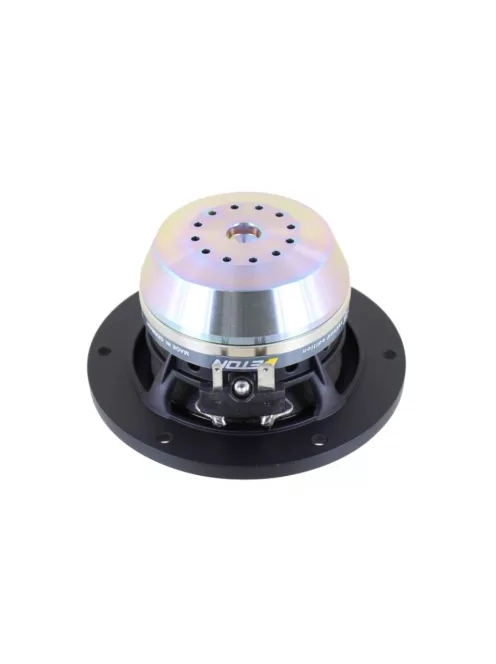

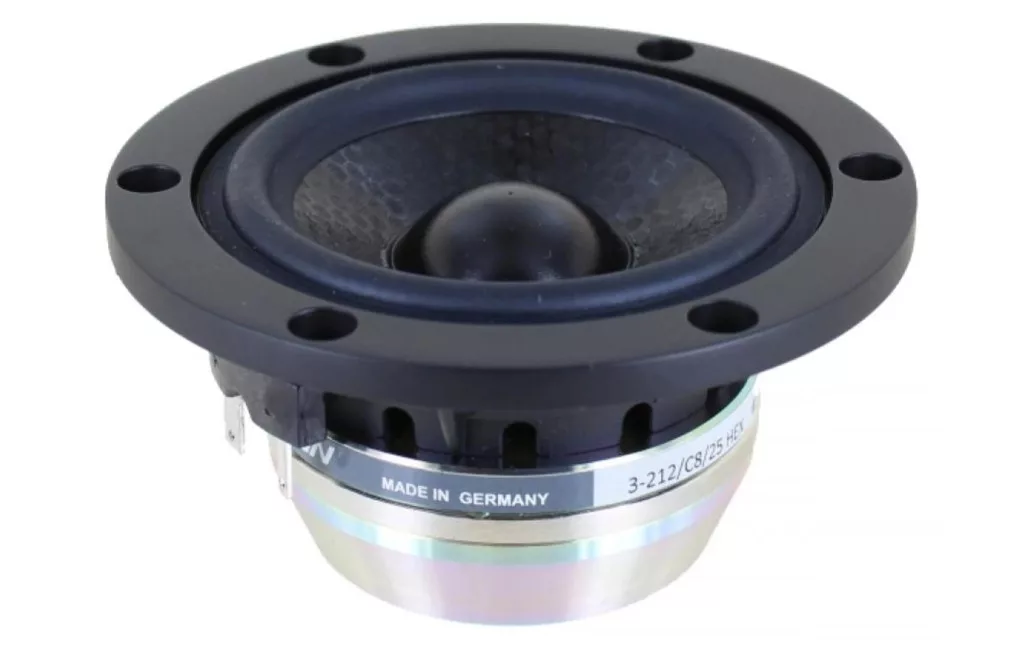

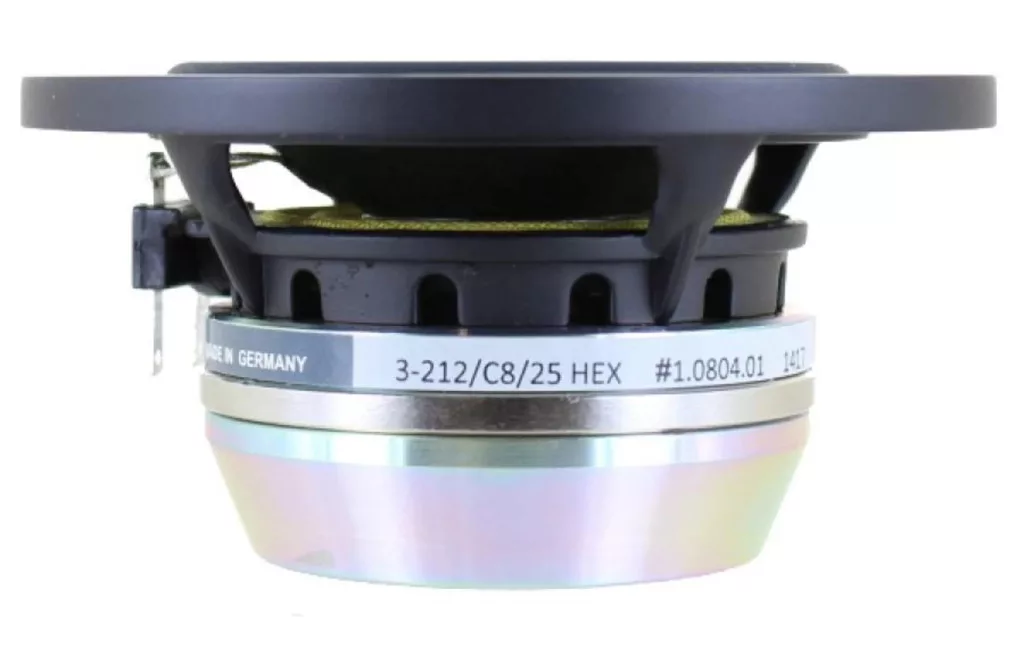

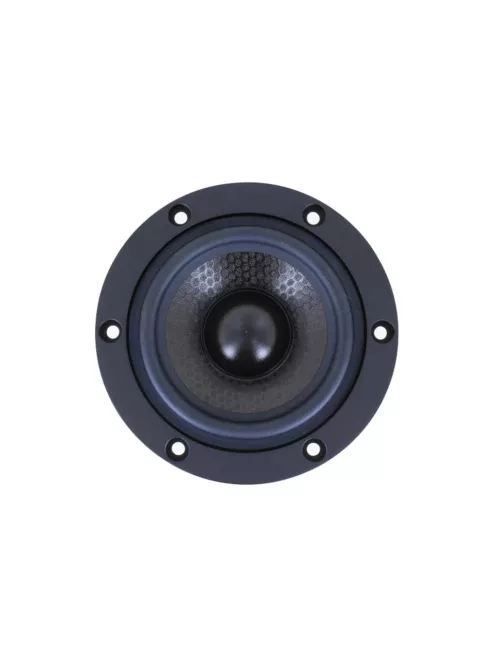

ETON 3-212/C8/25 HEX Bass-mid Woofer
The ETON 3-212/C8/25 HEX Bass-mid Woofer is known for its harmonic and smooth sound. It has distinctive and light midranges, and precise and powerful bass. The driver is also characterized by a high degree of musical imaging and an impressive soundscape.
When listening to the 3-212/C8/25 HEX, the first thing that notices is its clarity and transparency. The driver is able to reproduce even the most delicate details with great accuracy. The midrange is particularly impressive, with vocals and instruments sounding natural and lifelike. The bass is also very good, with deep extension and tight control.
Article number3-212/C8/25 HEX
EAN8785256846672
Woofer SeriesSymphony II
Woofer TypeBass Midwoofer
Nominal Diameter3“
Power Handling (RMS)50 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)88 dB
Frequency Response100 - 5400 HZ
Voice Coil Diameter25 mm
DC Resistance (Re)5,9 Ω
Voice Coil Inductance (Le)0.4 mH
Resonant Frequency (Fs)69 Hz
Mechanical Q (Qms)5.09
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.39
Moving Mass Of Diaphragm (Mmd)6.2 g
Mechanical Compliance of Suspension (Cms)0.84 mm/N
Surface Area of Cone (Sd)55 cm²
BL Product (BL)5.8 Tm
Compliance Equivalent Volume (Vas)3.6 dm³
Maximum Linear Excursion (Xmax)+/- 2 mm
Driver's Mechanical Losses (Rms)0.58 kg/s
Voice Coil Wire MaterialCu
Voice Coil FormerKapton
Overall Outside Diameter102 mm
Overall Depth52 mm
# Mounting Holes6
Mounting Hole Diameter4.3 mm
