The ETON 7-312/C8/32 HEX Bass-mid Woofer is a high-quality speaker that is designed to deliver exceptional sound quality. It features a three-layer Hexacone sandwich cone, which is lightweight and rigid, and provides excellent sound quality. The speaker also has a phase plug construction, which helps to improve dispersion and reduce distortion.
Highlights
7-inch three-layer Hexacone sandwich cone
Phase plug construction
Frequency response of 50 to 3000Hz
Maximum power handling capacity of 80W RMS
Product details

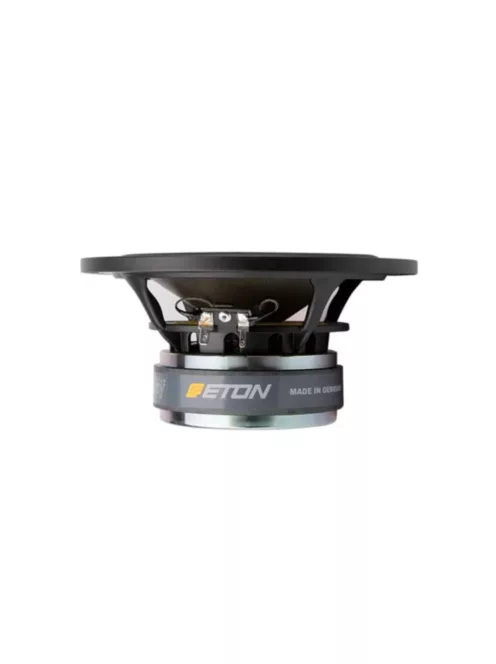

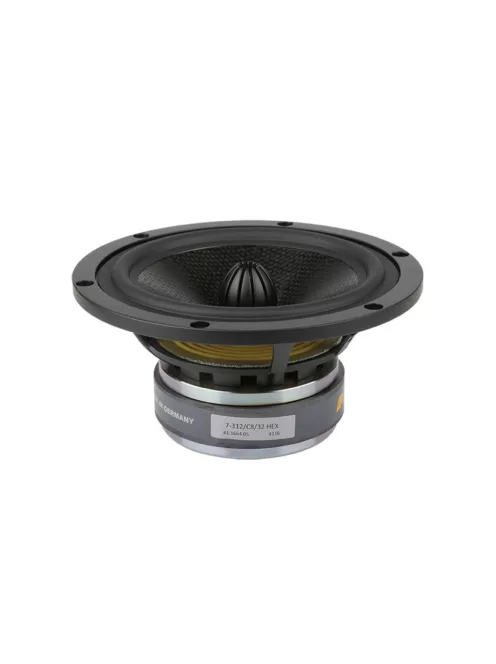

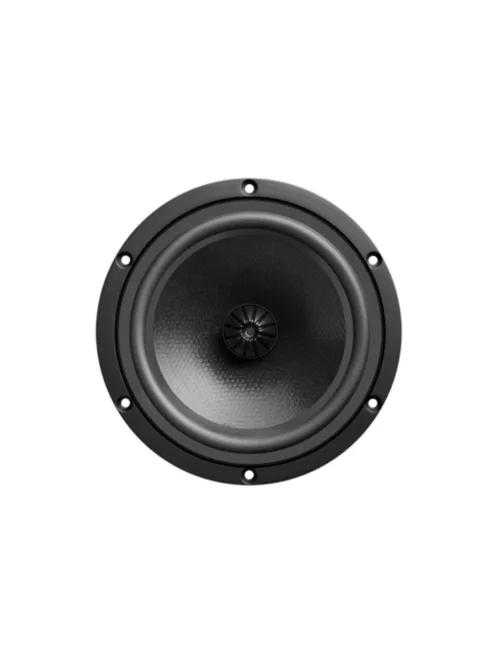

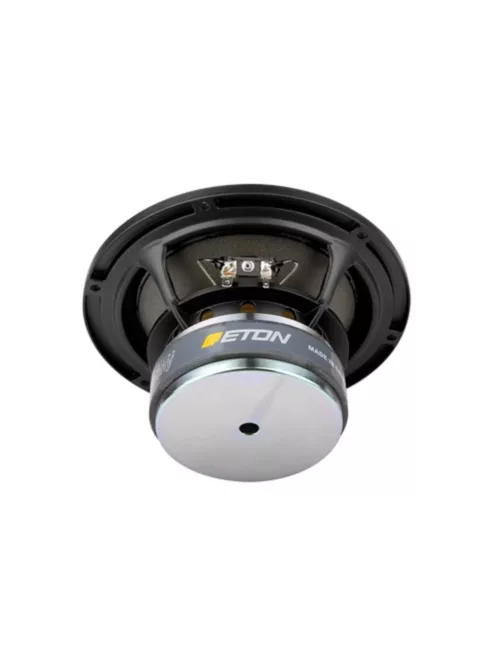

ETON 7-312/C8/32 HEX Bass-mid Woofer
The ETON 7-312/C8/32 HEX Bass-mid Woofer is a versatile speaker that can be used in a variety of applications, including home audio, car audio, and professional audio. It has a frequency response of 50 to 3000Hz, and a maximum power handling capacity of 80W RMS. This means that it can reproduce a wide range of frequencies, and can handle a lot of power, making it ideal for a variety of different systems.
Specifications
Article number7-312/C8/32 HEX
EAN8785256846740
Woofer SeriesSymphony II
Nominal Diameter7“
Power Handling (RMS)80 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)89 dB
Frequency Response50 - 3000 Hz
Voice Coil Diameter32 mm
DC Resistance (Re)6,7 Ω
Voice Coil Inductance (Le)0,9 mH
Resonant Frequency (Fs)35 Hz
Mechanical Q (Qms)6.4
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Moving Mass Of Diaphragm (Mmd)17.3 g
Mechanical Compliance of Suspension (Cms)1.14 mm/N
Surface Area of Cone (Sd)137 cm²
BL Product (BL)8.8 Tm
Compliance Equivalent Volume (Vas)30 dm³
Maximum Linear Excursion (Xmax)+/- 4.5 mm
Driver's Mechanical Losses (Rms)0.66 kg/s
Voice Coil Wire MaterialCu
Voice Coil FormerKapton
Overall Outside Diameter181 mm
Overall Depth87 mm
Baffle Cutout Diameter151.5 mm
Bolt Circle Diameter169 mm
# Mounting Holes6
Mounting Hole Diameter5.2 mm
