7“ flexible bass-mid range/bass driver for multiple usage, serrated paper membrane geometry, warm sounding, contoured mid range, powerful bass range, variable for 2-way and multi-way usage, open reproduction with phase plug.
Highlights
Uncompromising sound quality
Uncolored sound reproduction
Frequency range: 50 – 3000 Hz
Product details

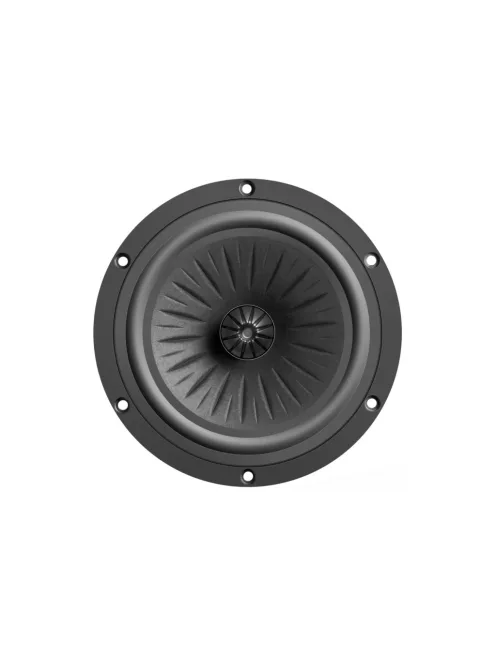

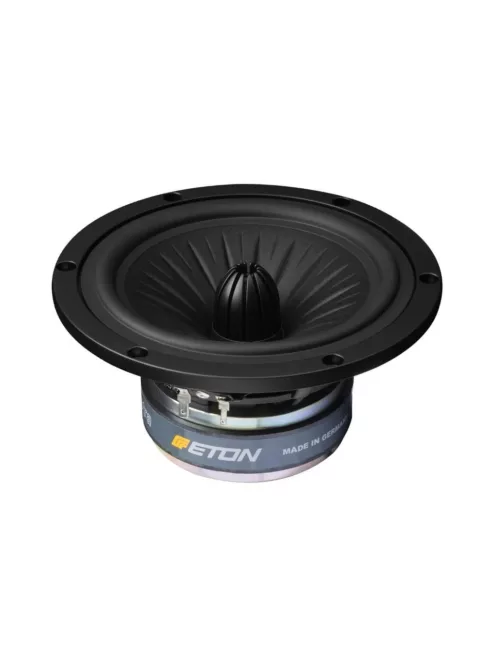

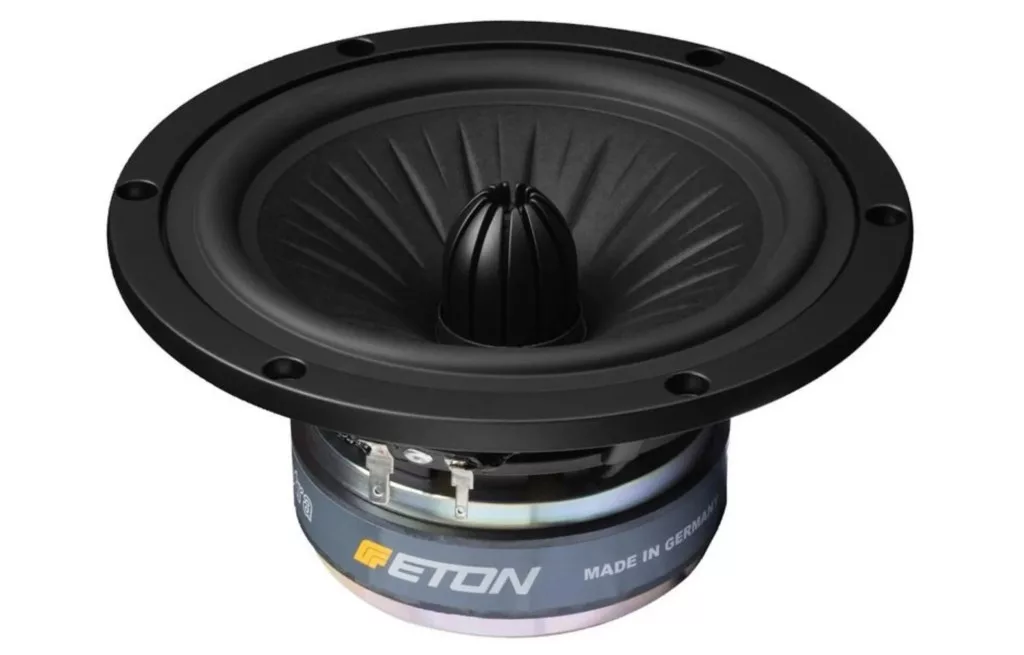

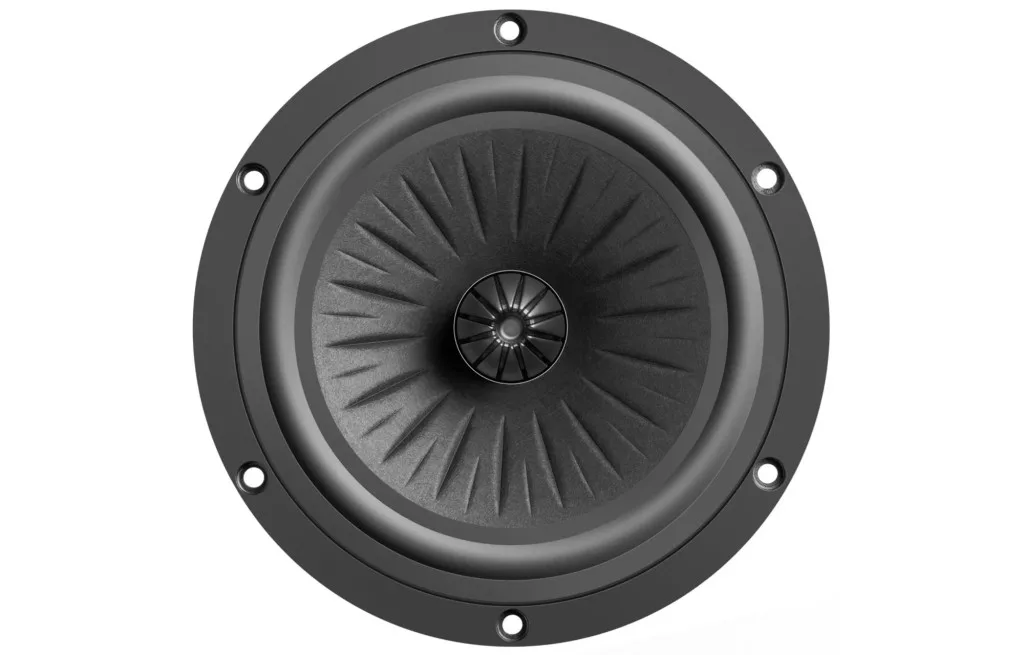

ETON 7-512/C8/32 RP Bass-mid Woofer
Our Orchestra Series with traditional paper cone, newly interpreted with ETON’s expertise. The special, radial ribbing and long-fiber, highly absorbing paper mixture creates a very high degree of impulse
fidelity and precision, even at extremely high levels; not to mention the resulting individualized appearance. The special paper mixture guarantees homogeneity by preventing mode formations at all possible frequency ranges.
The Orchestra mid range drivers and woofers are characterized by their natural, warm sound. This results in a balanced, well-contoured and soft mid range. In the low frequency range, our Orchestra is more than convincing with its voluminous and impulsive bass response.

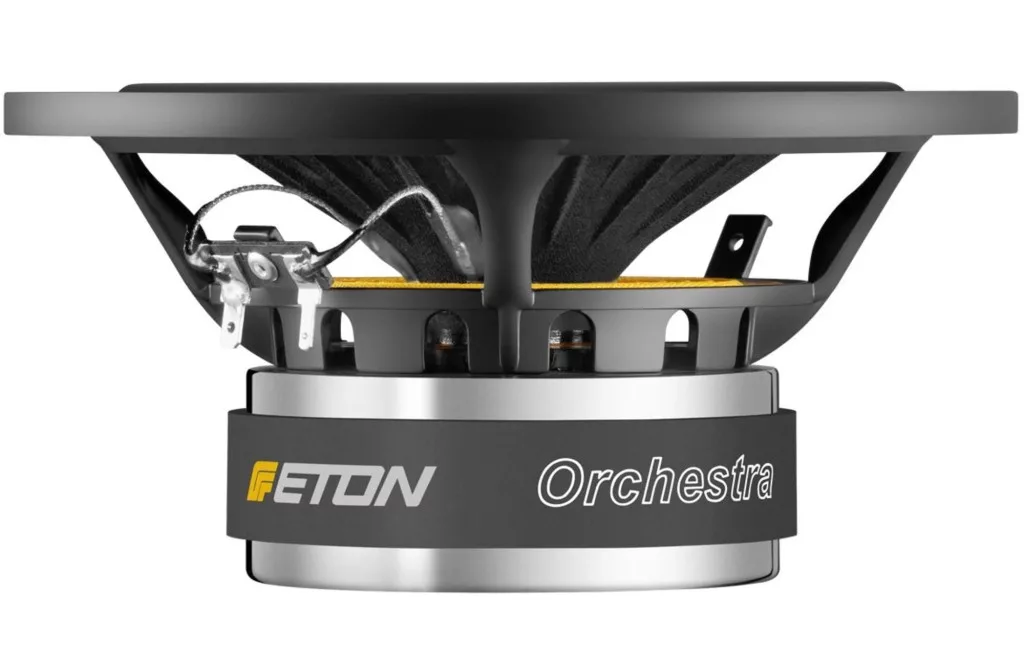

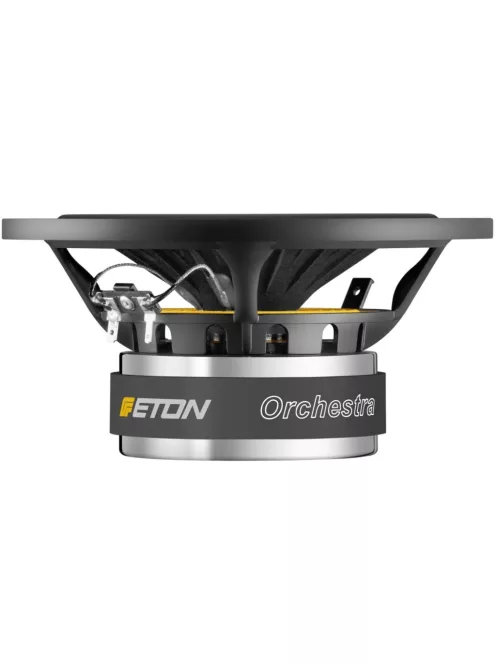

With its multiply ventilated and flow-supporting cast basket, the ferrite drive ensures that any occurring compression effects are reduced to a minimum.
Orchestra, a sonic reinterpretation with traditional materials.
Specifications
Article number7-512/C8/32 RP
EAN8785256846856
Woofer SeriesETON Orchestra series
Woofer TypeBass-mid Woofer
Nominal Diameter7"
Power Handling (RMS)80 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)89 dB
Frequency Response50 – 3000 Hz
DC Resistance (Re)6.5 Ω
Voice Coil Inductance (Le)0.60 mH
Resonant Frequency (Fs)36 Hz
Mechanical Q (Qms)5.27
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.35
Moving Mass Of Diaphragm (Mmd)13.5 g
Mechanical Compliance of Suspension (Cms)1.42 mm/N
Surface Area of Cone (Sd)137 cm2
Compliance Equivalent Volume (Vas)37.3 dm3
Maximum Linear Excursion (Xmax)5.5 mm
Driver's Mechanical Losses (Rms)0.64 kg/s
# Mounting Holes6
