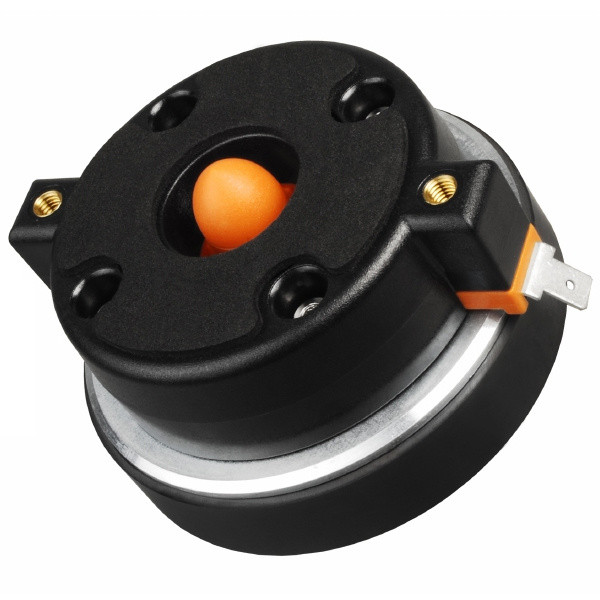

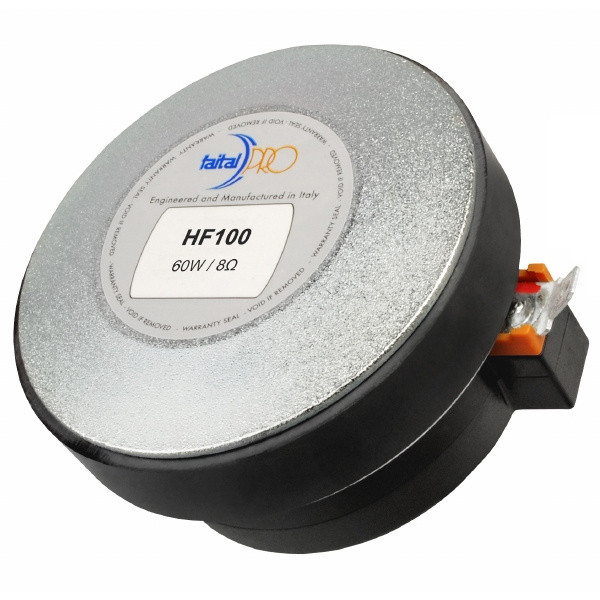

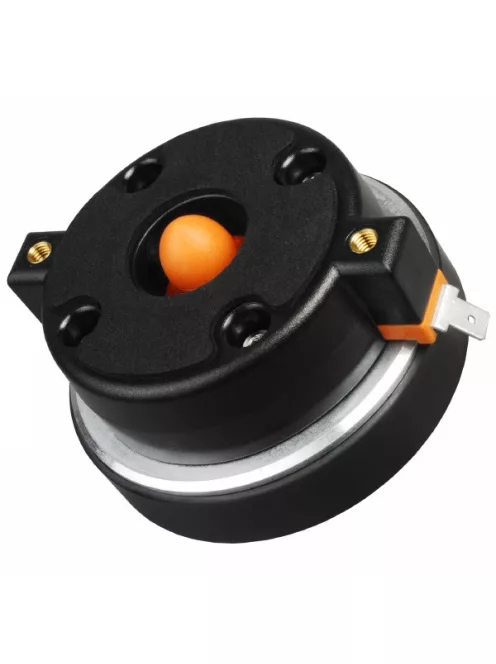

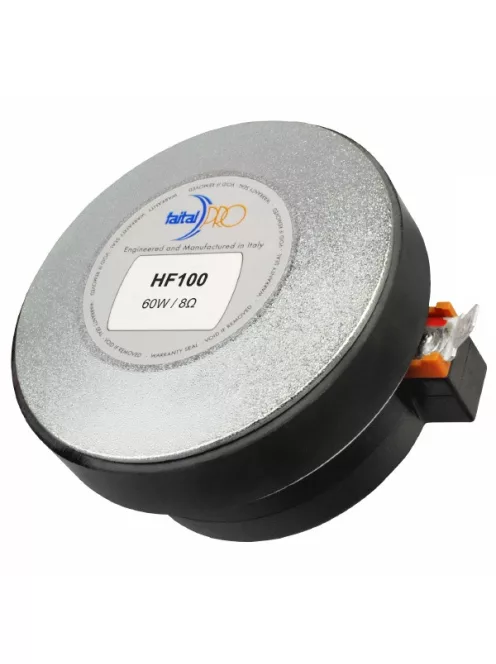

FaitalPRO HF100-8F 1" Compression Driver 8 Ohm

FaitalPRO HF100-8F Compression Driver The FaitalPRO HF100 is a compact and efficient 1-inch exit high-frequency compression driver designed for precise vocal reproduction and extended high-end response. With its high sensitivity and lightweight construction, it's an ideal choice for two-way and multi-way PA systems requiring smooth and powerful HF projection. Highlights of the FaitalPRO HF100 1” throat with 25 mm (1 in) aluminum voice coil for clear and articulate highs 108 dB sensitivity ensures maximum efficiency even with modest amplification 30 W AES power handling, 60 W peak, ideal for use in compact horn-loaded systems Ketone polymer diaphragm and radial phase plug for smooth frequency response up to 20 kHz Product details FaitalPRO HF100 FaitalPRO HF100 High-Frequency Compression Driver – 8 Ohm Version The FaitalPRO HF100 is a precision-engineered 1" exit HF compression driver designed for accurate sound reproduction in compact and portable PA systems. With an aluminum voice coil on a Kapton former, it handles 30 W AES and 60 W peak power while maintaining a remarkably high sensitivity of 108 dB. This allows it to pair efficiently with a wide range of horns for dynamic and intelligible HF response from 1.5 kHz to 20 kHz. The driver features a ketone polymer diaphragm shaped in a dome configuration for extended clarity, and its ferrite ring magnet provides solid magnetic strength with a flux density of 1.7 T. Designed with a radial phase plug and a 9° conical exit angle, the HF100 offers controlled directivity and excellent transient response. With only 830 g net weight and a minimum recommended crossover point of 2 kHz, it is ideal for high-output yet compact system designs.
