FaitalPRO HF103-8F 1" Compression Driver 8 Ohm

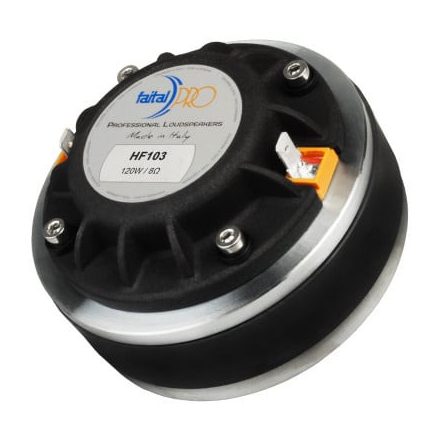

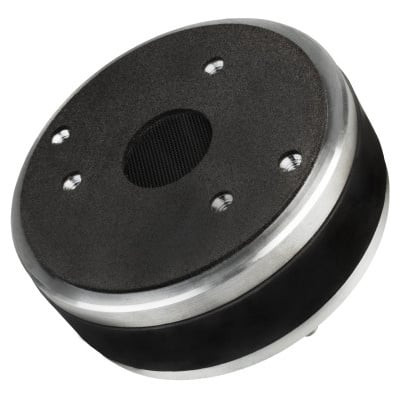

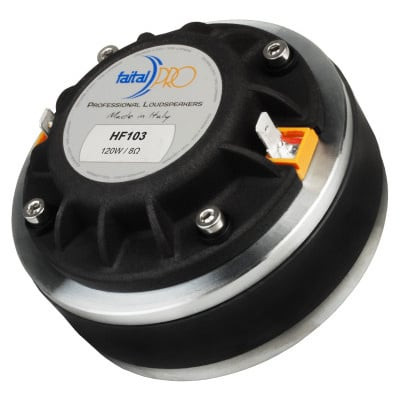

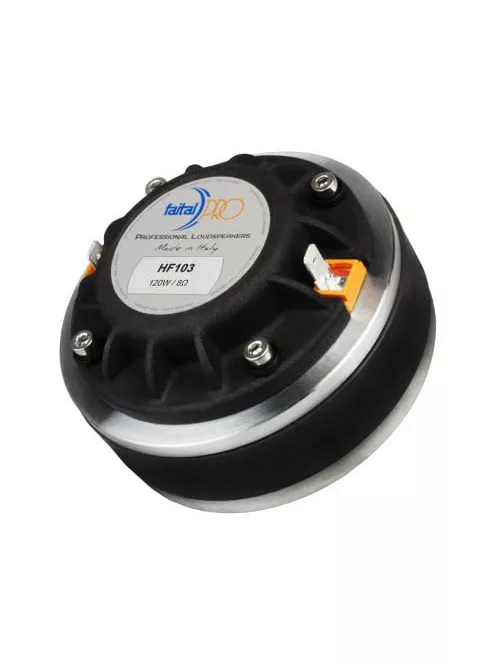

FaitalPRO HF103-8F Compression Driver The FaitalPRO HF103 is a robust 1-inch high-frequency compression driver built for superior power handling and extended frequency response in professional audio systems. Featuring a larger 44 mm voice coil and wide-band coverage from 1 kHz to 20 kHz, it's a solid choice for demanding two-way and multi-way systems. Highlights of the FaitalPRO HF103 60 W AES power handling and 120 W peak via a 1.73” aluminum voice coil High 107 dB sensitivity for efficient sound output and excellent clarity Extended low crossover capability down to 1.3 kHz for flexible integration Ferrite ring magnet and ketone polymer dome diaphragm for smooth, powerful highs Product details FaitalPRO HF103 FaitalPRO HF103 High-Frequency Compression Driver – 8 Ohm Version The FaitalPRO HF103 is a 1" exit compression driver optimized for high-SPL and high-resolution audio reproduction in professional loudspeaker systems. Its 44 mm (1.73 in) aluminum voice coil wound on a Kapton former allows it to handle 60 W AES (120 W peak) power while maintaining exceptional clarity and dynamic headroom. With a broad frequency range of 1 kHz to 20 kHz and a recommended crossover as low as 1.3 kHz, the HF103 excels in both compact two-way and large-format systems. The dome diaphragm is made from ketone polymer, supported by an annular phase plug for precise wavefront shaping. The driver incorporates a ferrite ring magnet delivering 1.5 T of flux density and uses a 13° conical exit angle for wide dispersion when paired with appropriate horn flares. At just 100 mm in diameter but weighing 1.3 kg, the HF103 strikes a balance between size and performance—making it a reliable HF component for touring systems and high-end enclosures requiring both output and fidelity.
