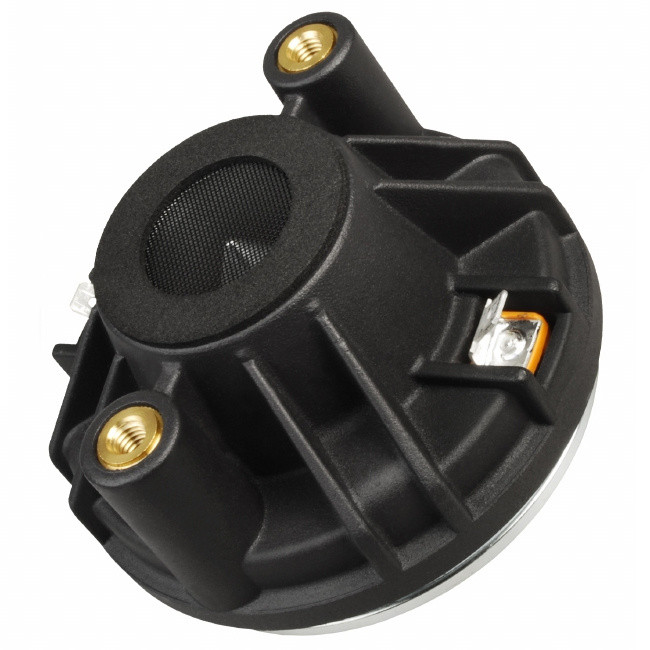

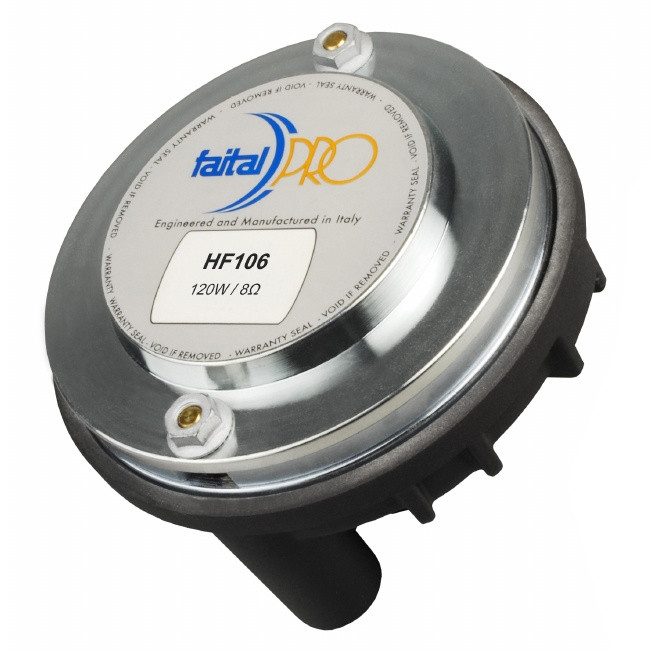

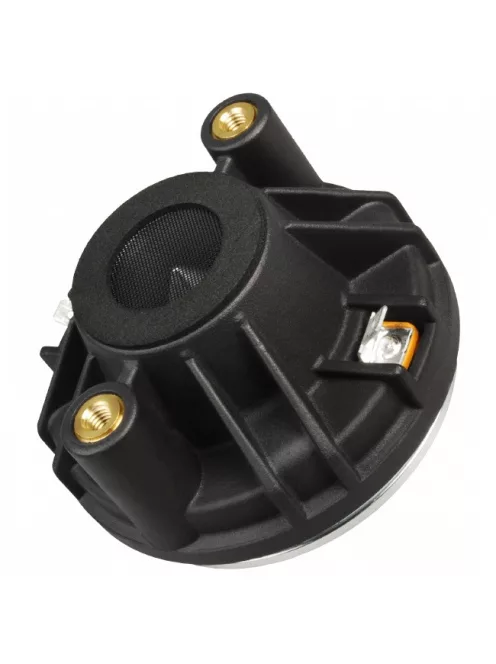

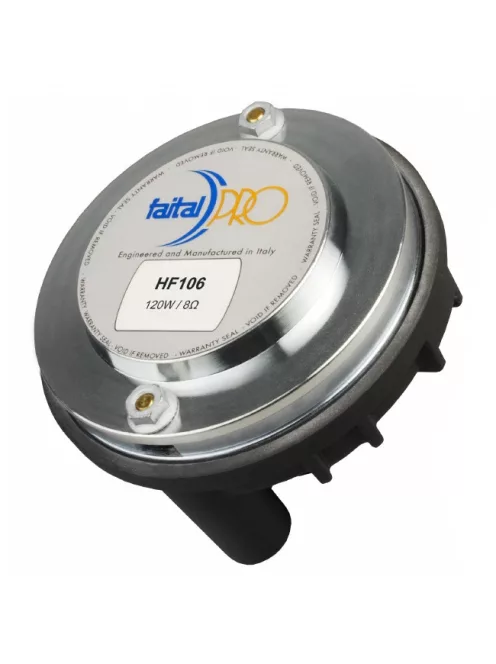

FaitalPRO HF106-8F 1" Compression Driver 8 Ohm

FaitalPRO HF106-8F Compression Driver The FaitalPRO HF106 is a compact but powerful 1-inch high-frequency compression driver, optimized for maximum output and clarity in professional audio applications. With its high 110 dB sensitivity, neodymium magnet, and 60 W AES power rating, it delivers articulate high-frequency reproduction with outstanding efficiency. Highlights of the FaitalPRO HF106 Extremely high 110 dB sensitivity for unmatched output in compact systems 60 W AES and 120 W peak power handling via 1.73" aluminum voice coil Neodymium ring magnet with 2.1 T flux density ensures low weight and strong motor force Annular diaphragm and phase plug design for smooth response from 1.3 kHz to 20 kHz Product details FaitalPRO HF106 FaitalPRO HF106 High-Frequency Compression Driver – 8 Ohm Version The FaitalPRO HF106 is a high-efficiency 1” exit compression driver delivering exceptional clarity, output, and control in the high-frequency range. Its 44 mm (1.73 in) aluminum voice coil on a Kapton former handles 60 W AES and up to 120 W peak, while offering a wide frequency range from 1.3 kHz to 20 kHz. This makes it suitable for both two-way and three-way systems where a low crossover point and high output are essential. Built around a lightweight neodymium ring magnet, the HF106 generates an impressive 2.1 T of flux density. The annular diaphragm and phase plug configuration ensure smooth and detailed high-frequency reproduction with excellent phase coherence. Weighing just 1.1 kg and with a depth under 60 mm, it integrates well into compact horns and cabinet designs where performance must be maximized within a limited space.
