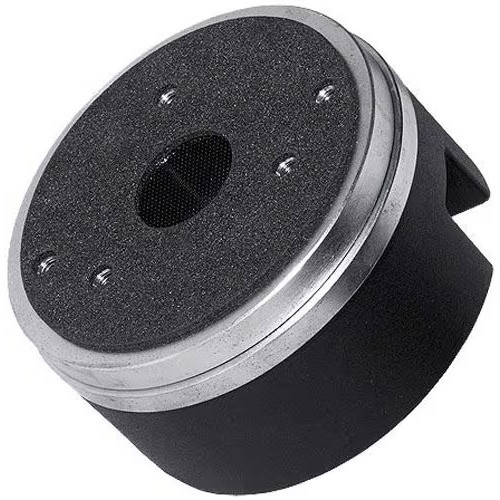

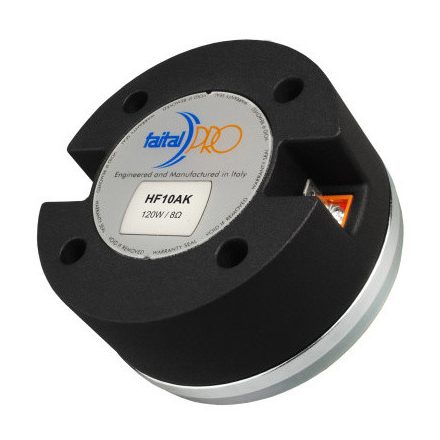

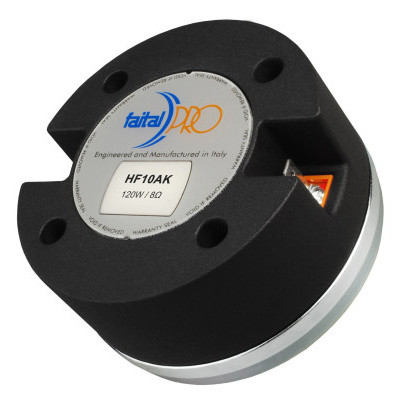

FaitalPRO HF10AK-8F 1" Compression Driver 8 Ohm

FaitalPRO HF10AK-8F Compression Driver The FaitalPRO HF10AK is a high-efficiency 1-inch compression driver offering extended frequency response, outstanding sensitivity, and powerful projection. Built around a neodymium magnet with a 44 mm voice coil, it's a top performer for compact two- and three-way systems requiring articulate high-frequency output with minimal distortion. Highlights of the FaitalPRO HF10AK Exceptional 110 dB sensitivity and 60 W AES power handling Neodymium magnet with 1.9 T flux density for strong magnetic control and low weight Extended low crossover response down to 800 Hz Annular phase plug and 21° conical exit angle for clean, wide dispersion Product details FaitalPRO HF10AK FaitalPRO HF10AK High-Frequency Compression Driver – 8 Ohm Version The FaitalPRO HF10AK is a 1” exit high-frequency compression driver tailored for applications that demand superior clarity and projection across a broad frequency range. It incorporates a 44 mm (1.73 in) aluminum voice coil on a Kapton former, handling 60 W AES and 120 W peak. With an ultra-high sensitivity of 110 dB, it is optimized for use in high-output systems where headroom and articulation are key. The ketone polymer diaphragm and annular phase plug support clean transient response and reduced distortion, while the neodymium ring magnet ensures compact dimensions and excellent heat management. Offering an exceptionally wide frequency range from 800 Hz to 20 kHz and a minimum recommended crossover point of just 1.3 kHz, the HF10AK is perfect for use in high-efficiency systems, compact enclosures, and horn-loaded applications where fidelity and space-saving design are critical.
