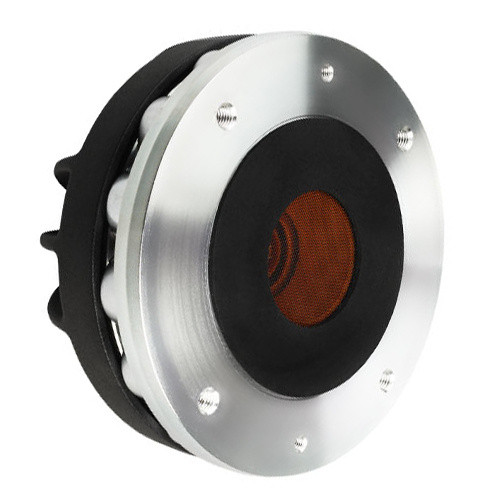

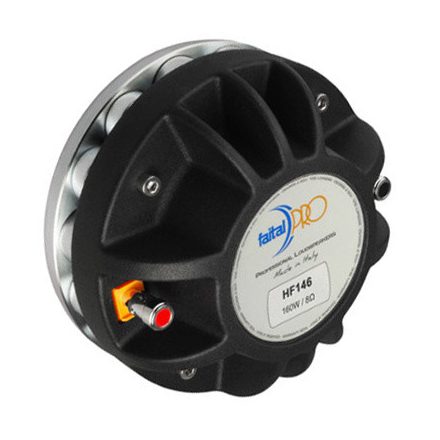

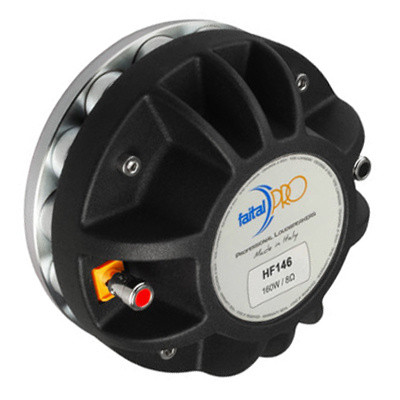

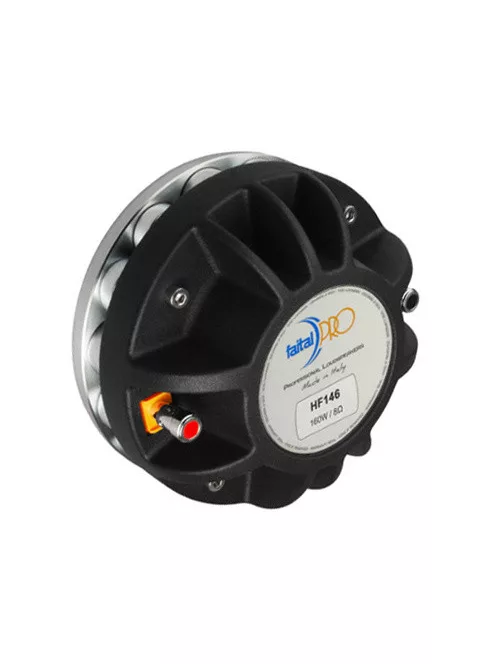

FaitalPRO HF146-8P 1,4" Compression Driver 8 Ohm

FaitalPRO HF146-8P Compression Driver The FaitalPRO HF146 is a professional 1.4-inch exit compression driver engineered for clean, high-output performance with excellent low crossover capability. Designed for large-format horn systems, it delivers smooth, wide-range high-frequency reproduction with superior power handling and consistency. Highlights of the FaitalPRO HF146 80 W AES (above 0.9 kHz) and 40 W AES (above 0.65 kHz) power handling for extended versatility 109 dB sensitivity ensures powerful HF output with minimal amplifier strain 65 mm (2.56”) aluminum voice coil and neodymium slug crown magnet for dynamic control Wide frequency range from 700 Hz to 18 kHz with a 29° conical exit angle Product details FaitalPRO HF146 FaitalPRO HF146 High-Frequency Compression Driver – 8 Ohm Version The FaitalPRO HF146 is a 1.4" exit high-frequency driver that balances high sensitivity, extended frequency response, and flexible power handling options. Designed for two- and three-way professional audio systems, the HF146 uses a 65 mm (2.56 in) aluminum voice coil on a Kapton former, capable of handling 80 W AES above 0.9 kHz or 40 W AES above 0.65 kHz. Peak handling doubles at both thresholds, offering up to 160 W and 80 W respectively. With a frequency range from 700 Hz to 18 kHz and a high 109 dB sensitivity, the HF146 performs exceptionally in vocal-critical and high-SPL applications. Its ketone polymer dome diaphragm and annular phase plug provide a coherent and dynamic HF response. The 29° conical exit angle ensures broad dispersion when used with standard 1.4" flares like the FaitalPRO LTH142. Ideal for use in compact or mid-sized horn-loaded enclosures where power-to-weight efficiency is key.
