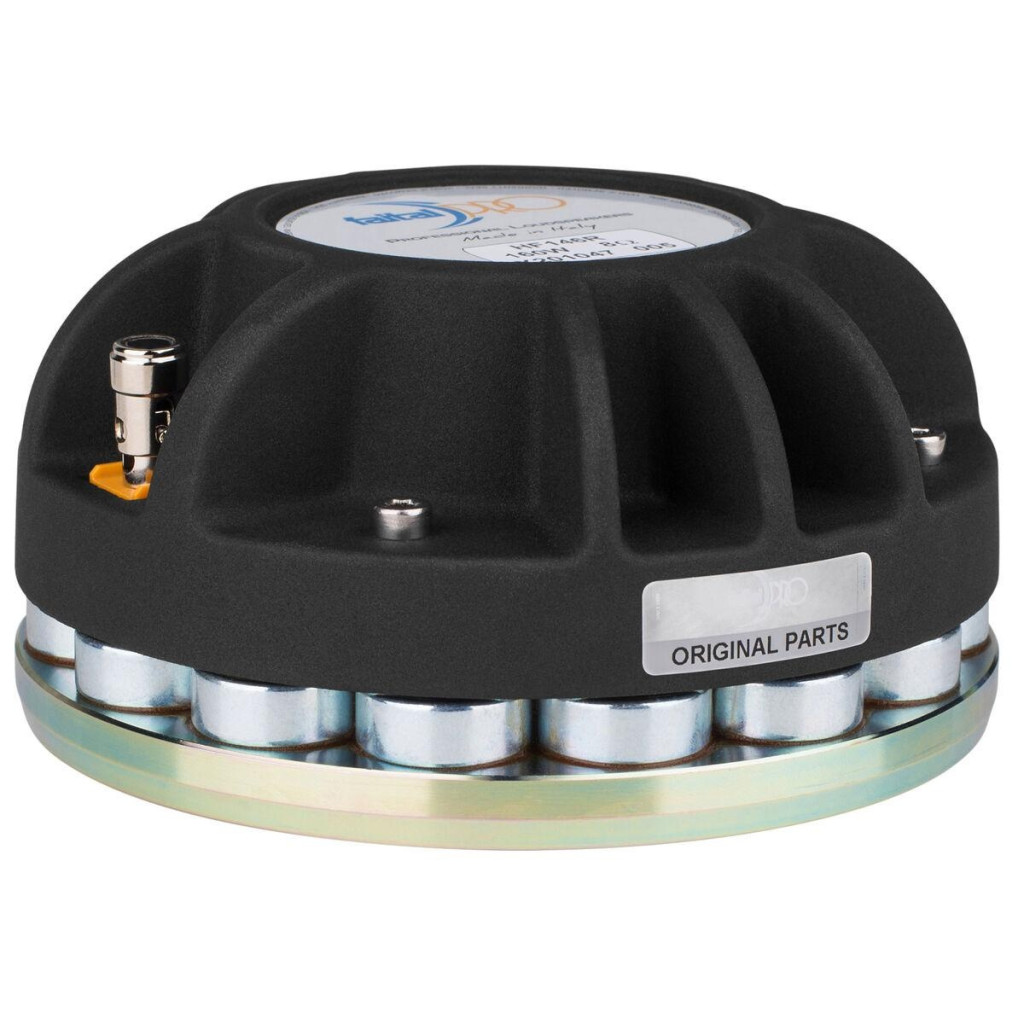

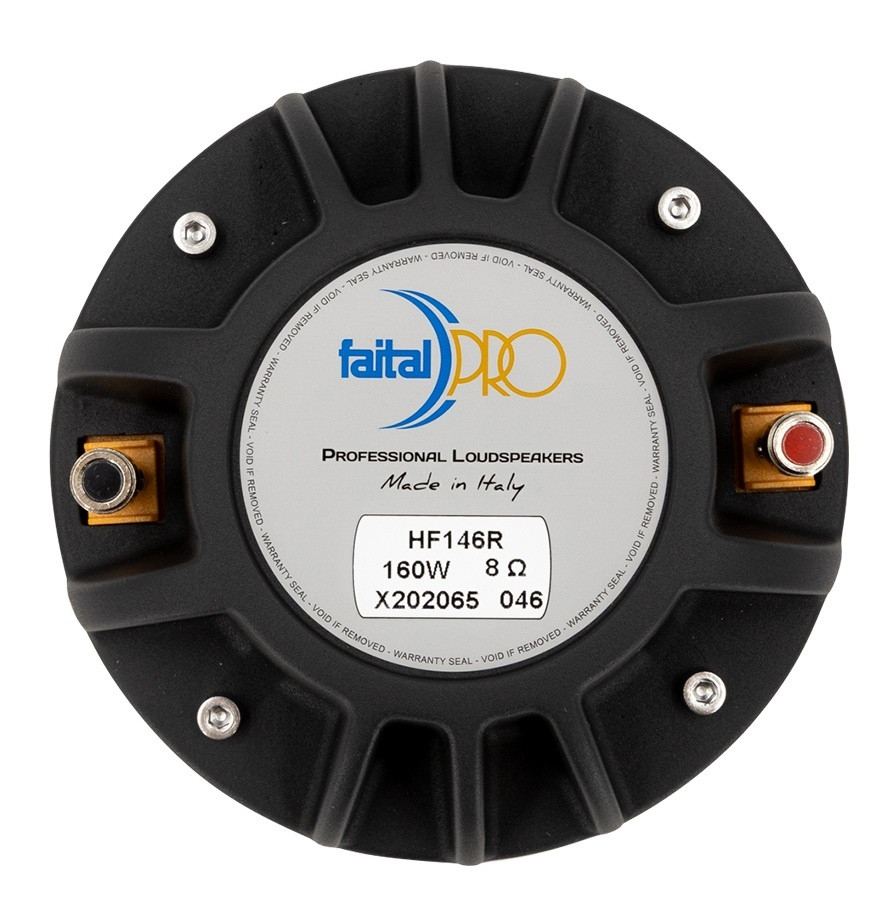

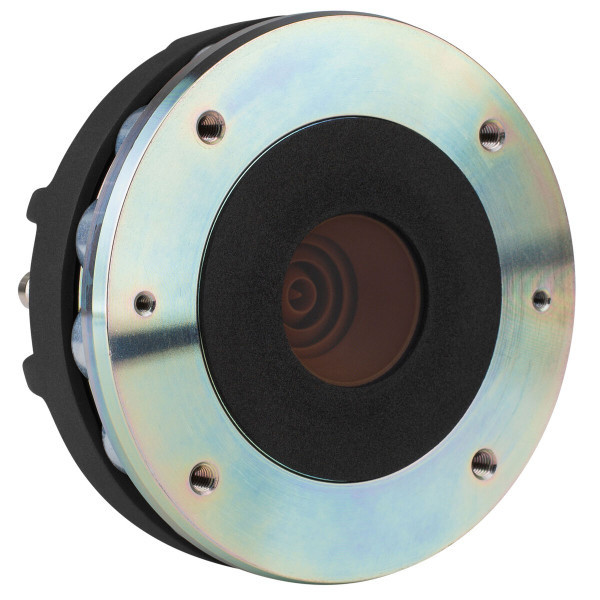

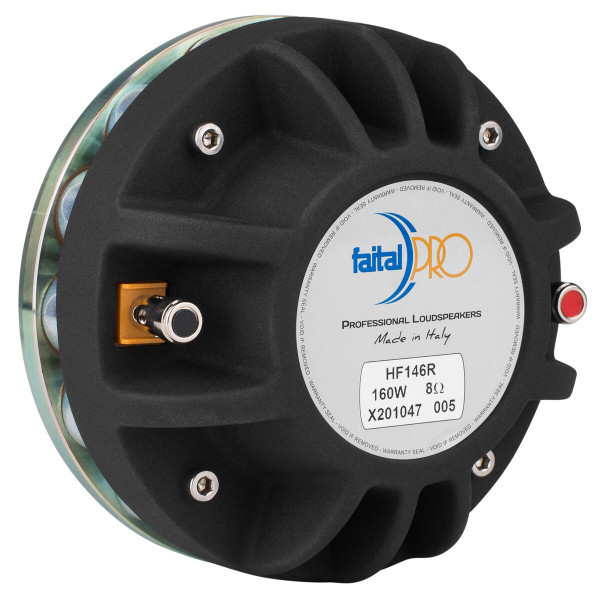

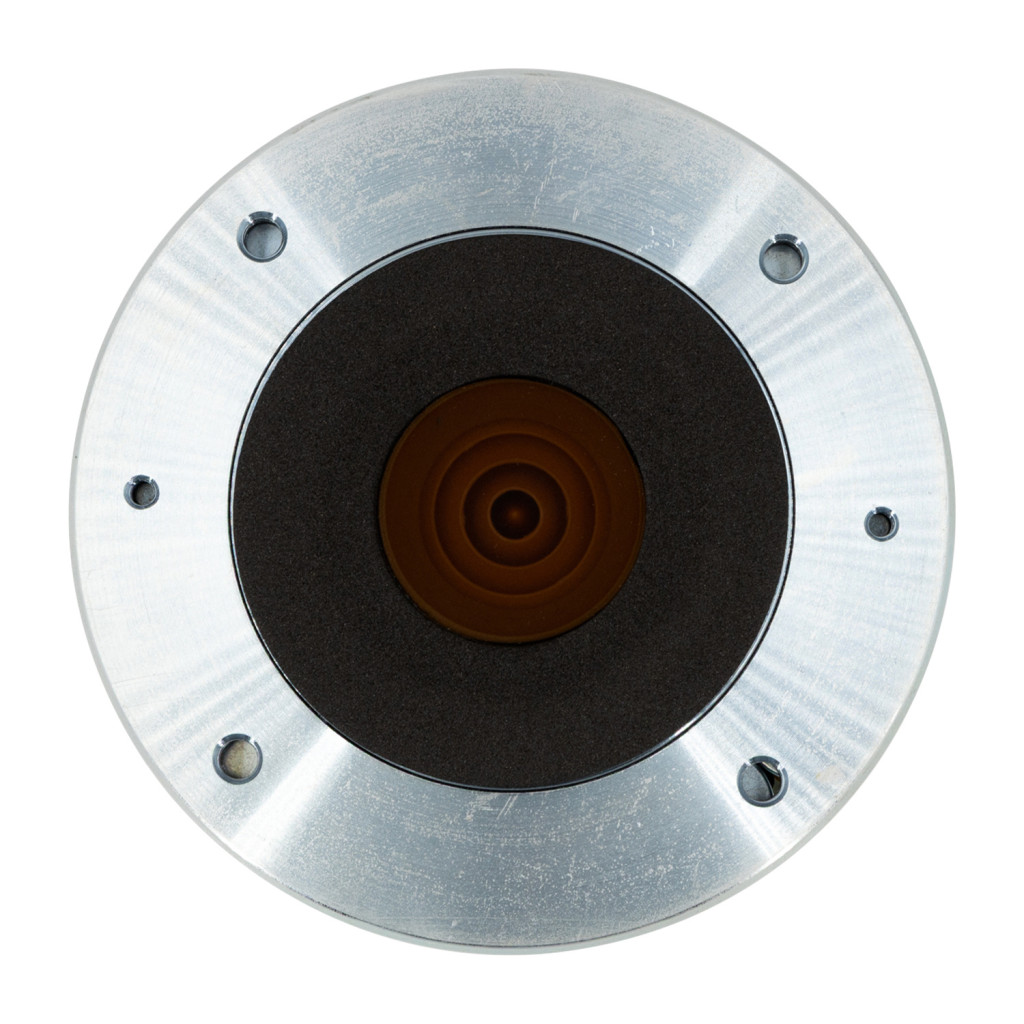

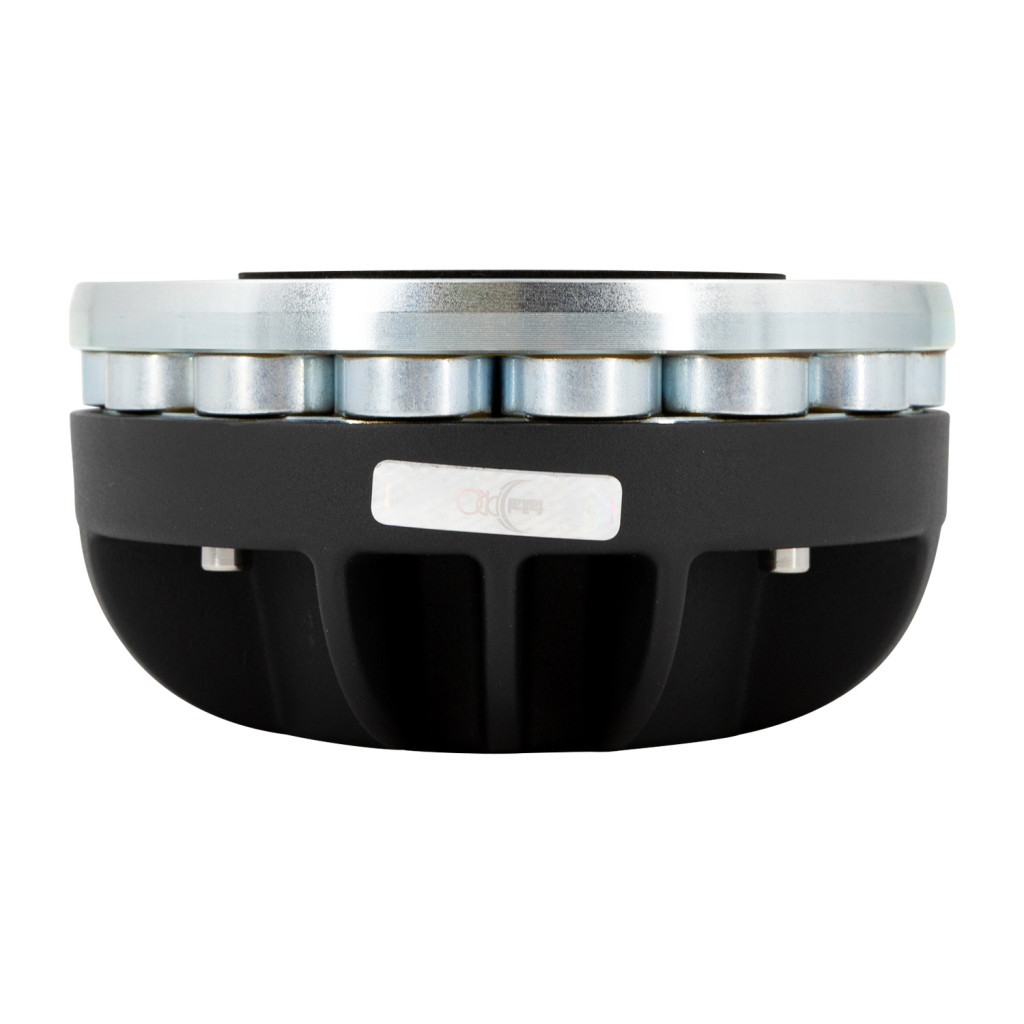

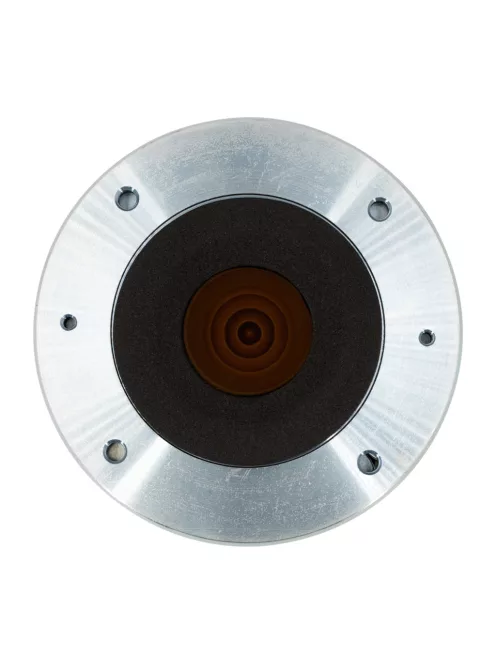

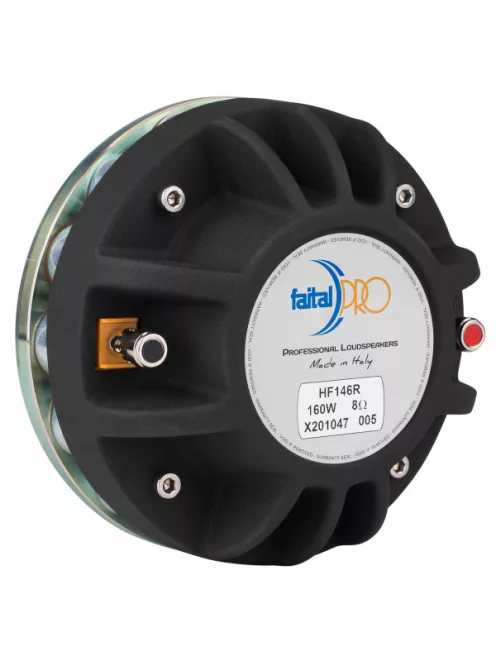

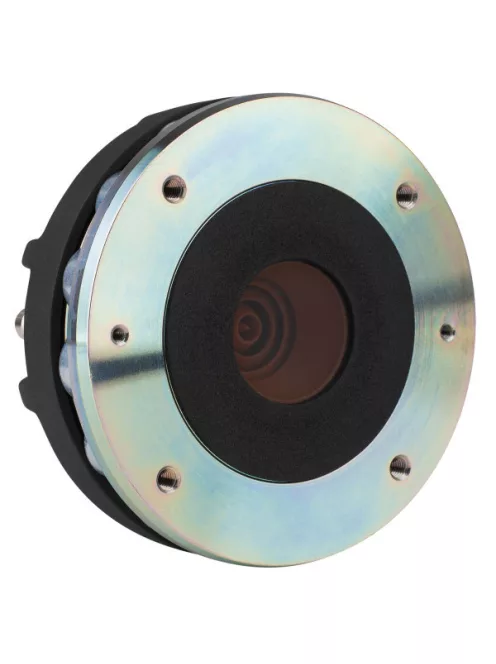

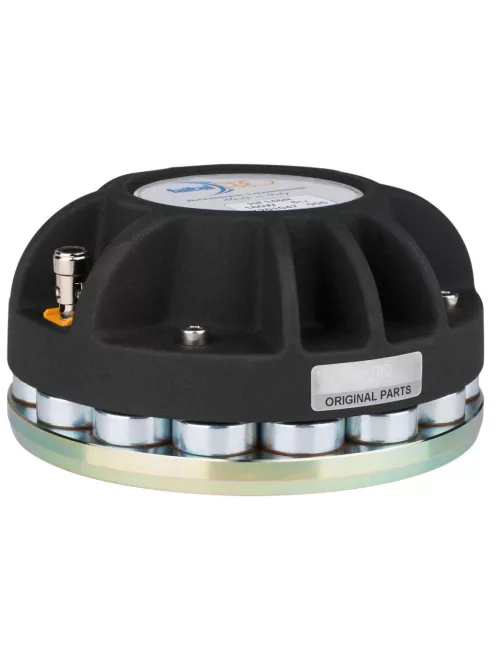

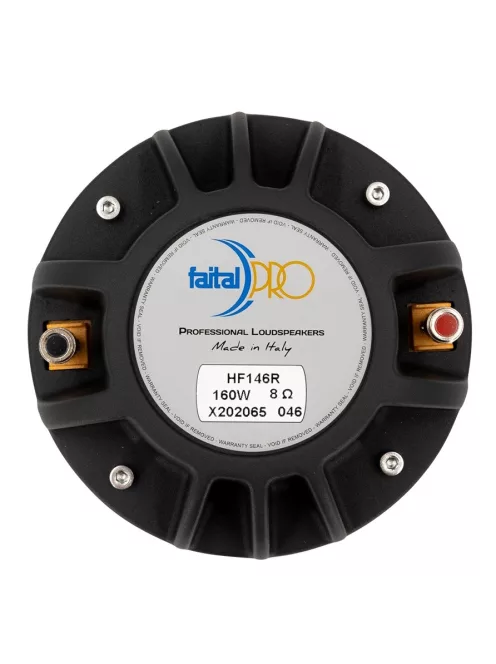

FaitalPRO HF146R-8P 1,4" Compression Driver 8 Ohm

FaitalPRO HF146R-8P Compression Driver The FaitalPRO HF146R is a high-output 1.4-inch compression driver designed for clarity, power, and acoustic tuning flexibility. With a 2.56" voice coil, neodymium magnet, and perforated suspension for controlled response, it's ideal for high-SPL horn-loaded systems in both live and installed professional sound. Highlights of the FaitalPRO HF146R 80 W AES (above 0.9 kHz) and 40 W AES (above 0.65 kHz) power handling for versatile system integration High 109 dB sensitivity and 2.56" aluminum voice coil for dynamic high-frequency performance Perforated suspension design allows for acoustic tuning and smoother response Neodymium slug crown magnet and 29° conical exit angle for compact, wide-dispersion integration Product details FaitalPRO HF146R FaitalPRO HF146R High-Frequency Compression Driver – 8 Ohm Version The FaitalPRO HF146R is a 1.4" exit high-frequency driver designed for powerful sound projection with fine-tuned control. Sharing the core architecture of the HF146, this "R" version introduces a perforated suspension that allows for optimized acoustic behavior, enhancing tuning options and overall sound quality. It features a 65 mm (2.56 in) aluminum voice coil and handles 80 W AES power above 0.9 kHz, or 40 W AES above 0.65 kHz — with peak capacities doubled. The ketone polymer diaphragm and annular phase plug enable smooth wavefront control, while the driver delivers full coverage from 700 Hz to 18 kHz. Its compact 2.5" depth and neodymium magnet ensure lightweight integration without sacrificing performance. The HF146R is well suited for advanced two-way and three-way systems, particularly in horn-loaded enclosures where clarity, efficiency, and acoustic precision are paramount.
