Ncore based amplifier technology
DSP controlled
All-in-one Hypex Solution
Neutral and transparent reproduction

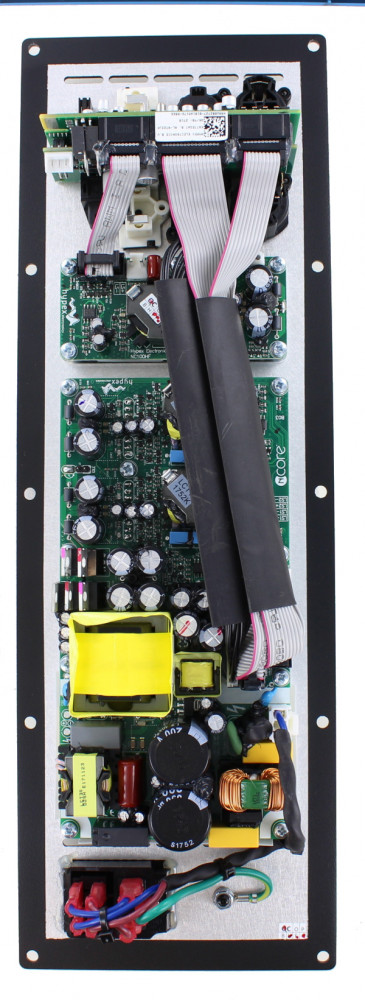

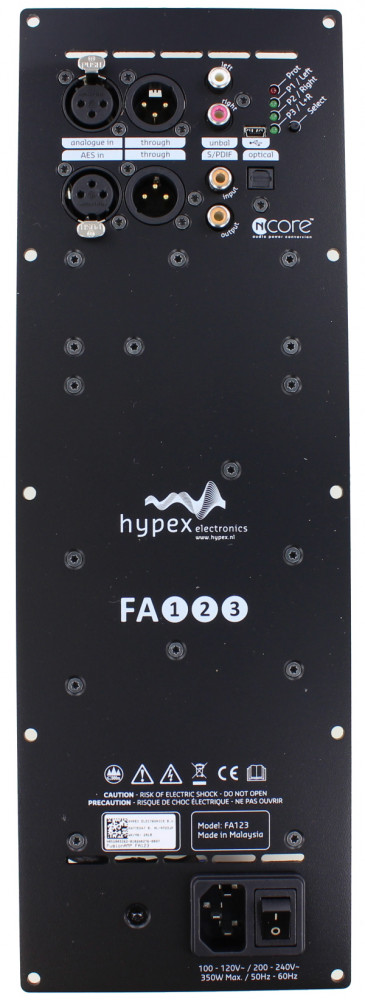

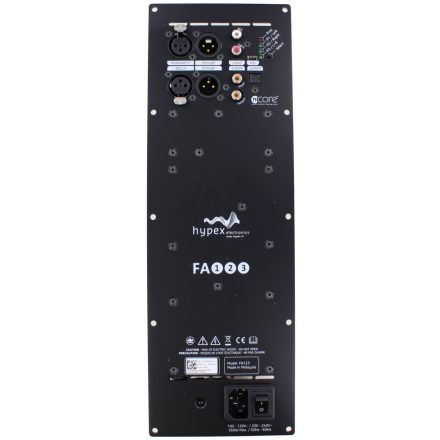

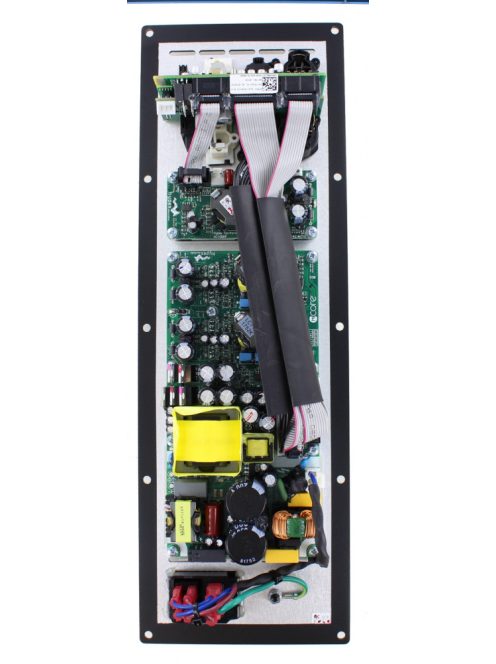

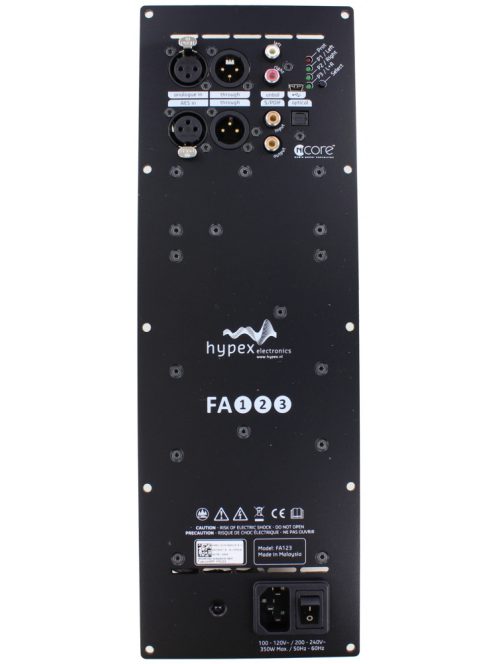

Hypex FA123 2x125 + 100 Watt FusionAmp
Due the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.
The FA123 has two 125 watt Ncore amplifiers which can also be bridged to form one powerful 250 watt amplifier. The third channel is 100 watt Ncore tweeter channel. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.
To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.
Features
15 biquads per amplifier
Three selectable presets for filters
Source selection
Signal detect
Auto shutdown
BTL capable
Clip protect
Thermal protect
Filter protection
| Rated power output |
2 x 125 watts + 1 x 100 watts at 4 ohms
2 x 75 watts + 1 x 100 watts at 4 ohms at 8 ohms
2 x 115 watts at 2 ohms + 1 x 100 watts at 4 ohms |
| Rated power output bridged |
1 x 200 watts at 4 ohms
1 x 250 watts at 8 ohms |
| Minimum load |
2 ohms (4 ohms for tweeter channel) |
| Signal-to-noise ratio (SNR) |
118 dB |
| Distortion |
0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output) |
| Amplifier classification |
Class D |
| Efficiency |
92 % at full power |
| Frequency response |
10 - 50,000 Hz |
| Input impedance |
54k ohms (unbalanced RCA)
44k ohms (balanced XLR DM)
2.2m ohms (balanced XLR CM) |
| Input sensitivity |
1.17 Vrms for rated power output |
| Maximum sampling rate |
192 kHz
96 kHz (optical) |
| Dimensions (H x W x D) |
360 x 120 x 55 mm |
| Cutout dimensions |
336 x 96 mm |
