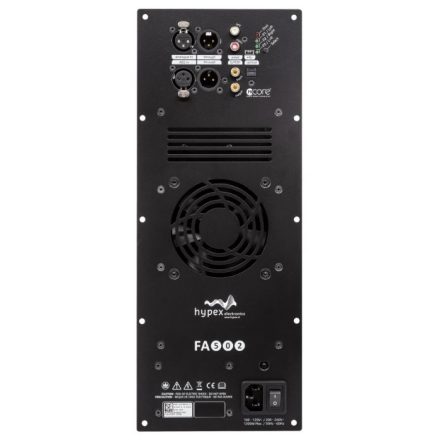

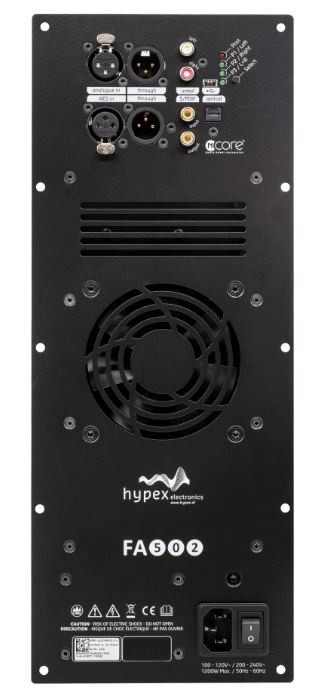

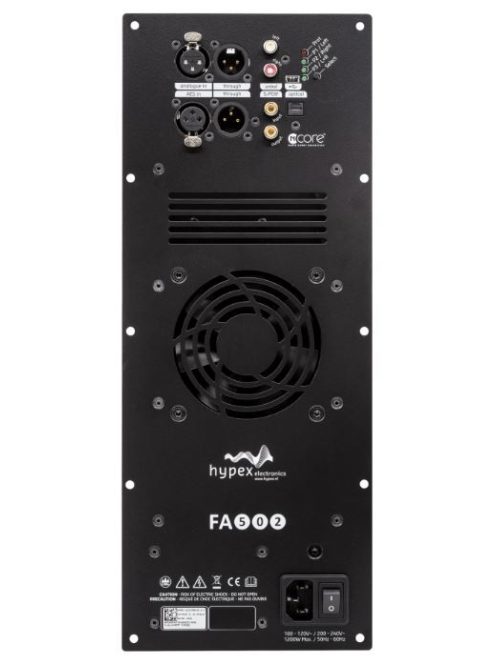

The FA502 2x500 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.
Highlights
- Ncore based amplifier technology
- DSP controlled
- All-in-one Hypex Solution
- Neutral and transparent reproduction
- Wide range of analog and digital inputs
Product details
Hypex FA502 2x500 Watt FusionAmp

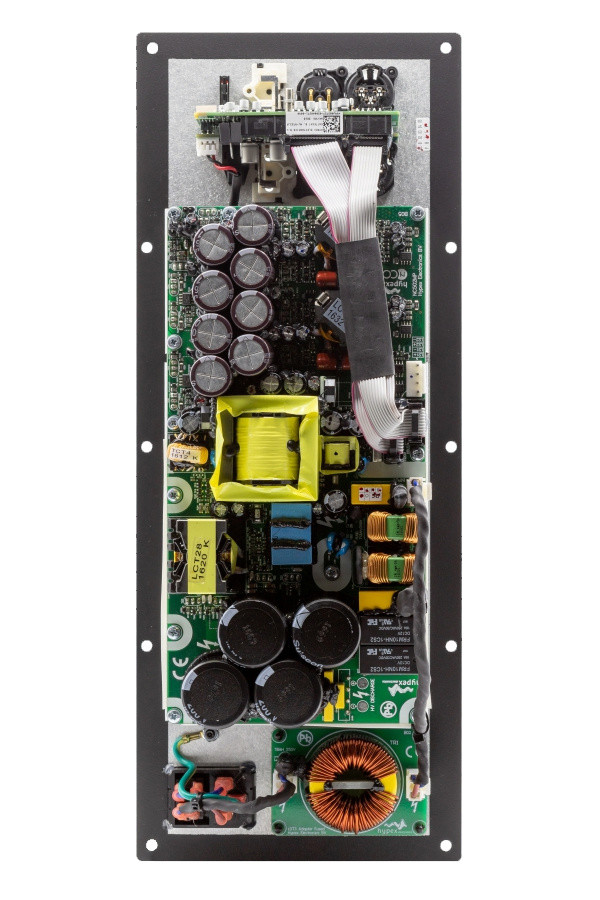

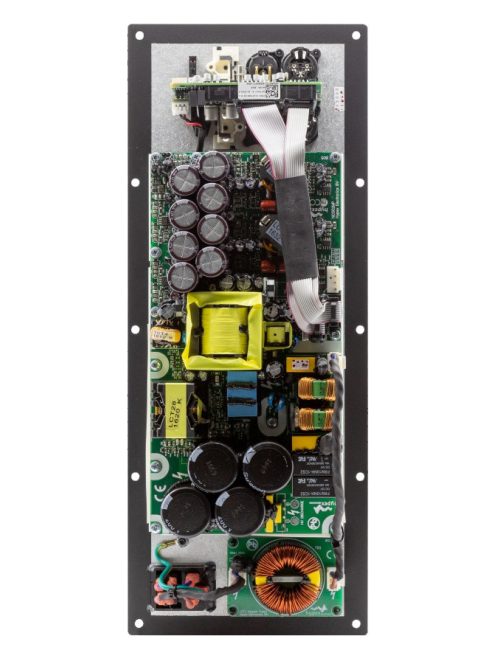

Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.
The FA502 has two 500 watt Ncore amplifiers which can also be bridged to form one powerful 1000 watt amplifier. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.
To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.
Features
- 15 biquads per amplifier
- Three selectable presets for filters
- Source selection
- Signal detect
- Auto shutdown
- BTL capable
- Clip protect
- Thermal protect
- Filter protection
What’s in the box?
- FA502 FusioAmp
- A printed copy of the user guide
- Speaker connection cables
- EU (or UK) C13 Power cable
Rated power output: 2 x 500 watts at 4 ohms / 2 x 350 watts at 8 ohms / 2 x 450 watts at 2 ohms
Rated power output bridged: 1 x 1000 watts at 4 ohms / 1 x 1200 watts at 8 ohms
Minimum load: 2 ohms
Signal-to-noise ratio (SNR): 124 dB
Distortion: 0.0018 % THD+N (10-20,000 Hz at 0.5 x rated power output)
Amplifier classification: Class D
Circuit topology: Ncore®
Efficiency: 92 % at full power
Frequency response: 10 - 50,000 Hz
Input impedance: 54k ohms (unbalanced RCA) / 44k ohms (balanced XLR DM) / 2.2m ohms (balanced XLR CM)
Input sensitivity: 2.35 Vrms for rated power output
Maximum sampling rate: 192 kHz / 96 kHz (optical)
Speaker output channels: 2
Analog in/out: 1/1
S/PDIF in/out: 2/1
AES/EBU in/out: 1/1
Coaxial in/out: 1/1
RCA in/out: 1/ -
XLR in/out: 2/2
Power requirements: 200-240 VAC ±10%
Power inlet connector: IEC C14
Current limit:27 A
Dimensions (H x W x D): 380 x 150 x 90 mm
Cutout dimensions: 356 x 126
