Elite ET 338-104 1" Dome Tweeter Matched Pair
Elite ET 338-104 1" Dome Tweeter Matched Pair
373.78 € excl. VAT

Elite ET 338-104 1" Dome Tweeter Matched Pair

Elite ET 338-104 1" Dome Tweeter Matched Pair
Elite ET 338-104 1" Dome Tweeter Matched Pair
Elite ET 338-104 1" Dome Tweeter Matched Pair
Elite ET 338-104 1" Dome Tweeter Matched Pair
Elite ET 338-104 1" Dome Tweeter Matched Pair
Elite ET 338-104 1" Dome Tweeter Matched Pair
Elite ET 338-104 1" Dome Tweeter Matched Pair
Elite ET 338-104 1" Dome Tweeter Matched Pair
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Morel
Further data
Orderable
373.78 € excl. VAT
Details
This pair of Morel ET338-104 Elite tweeters is acoustically matched from the manufacturer and based on the unique qualities of the famous Morel MDT 33.



Highlights

  • Acoustically matched pair
  • IDR™ (Improved Dispersion Recess)
  • Large Hexatech™ aluminum voice coil
  • Triple magnet system
  • Replaceable Accuflex™ diaphragm
  • High power handling
  • Gold plated terminals



Product Details

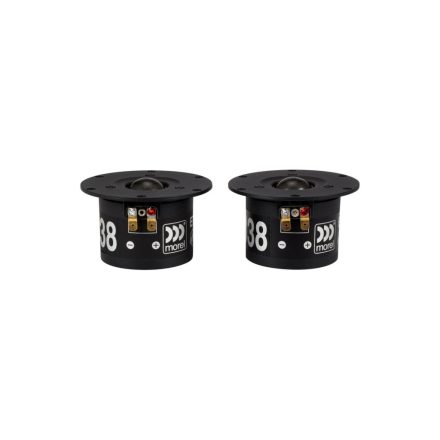

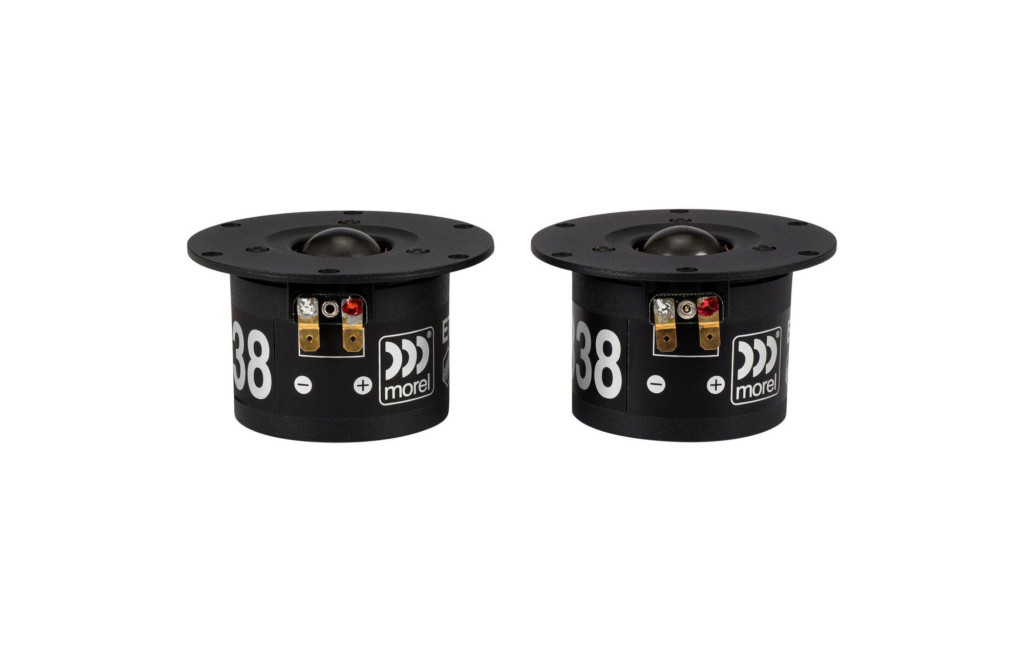

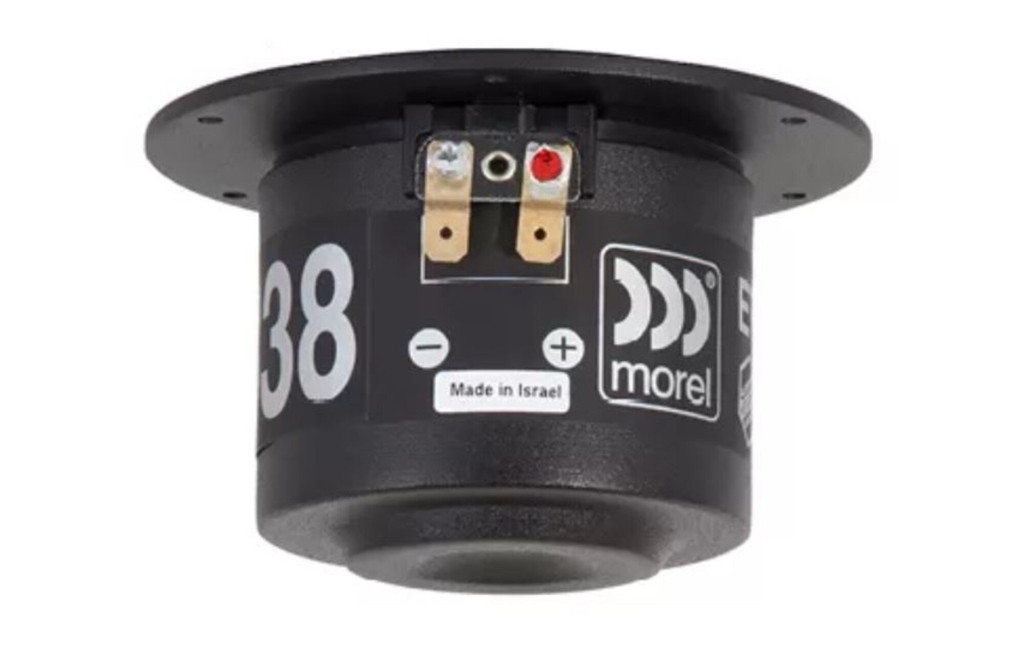

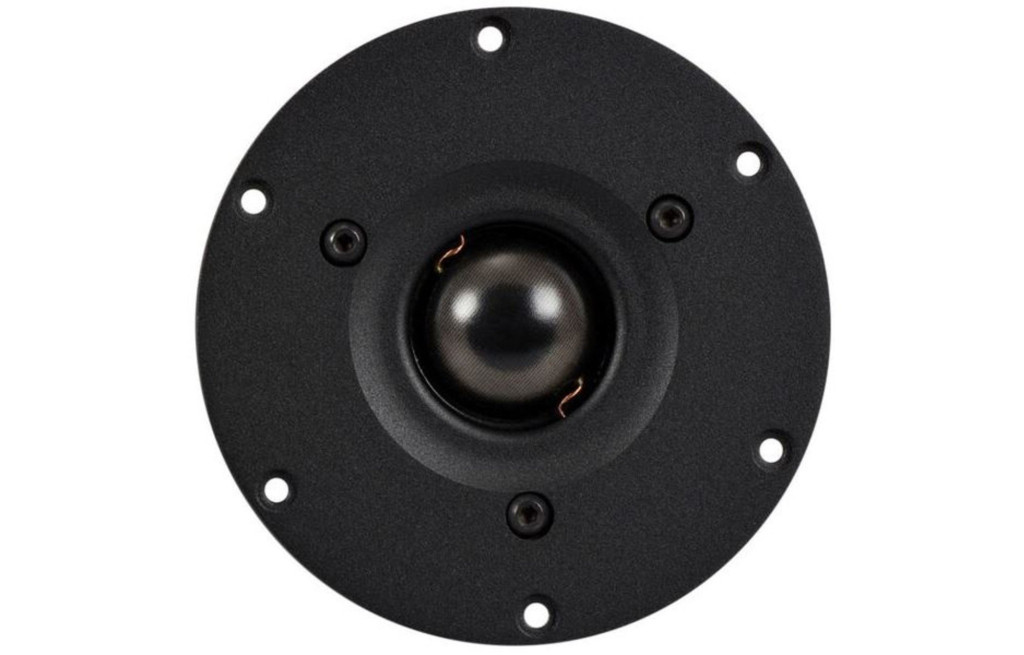

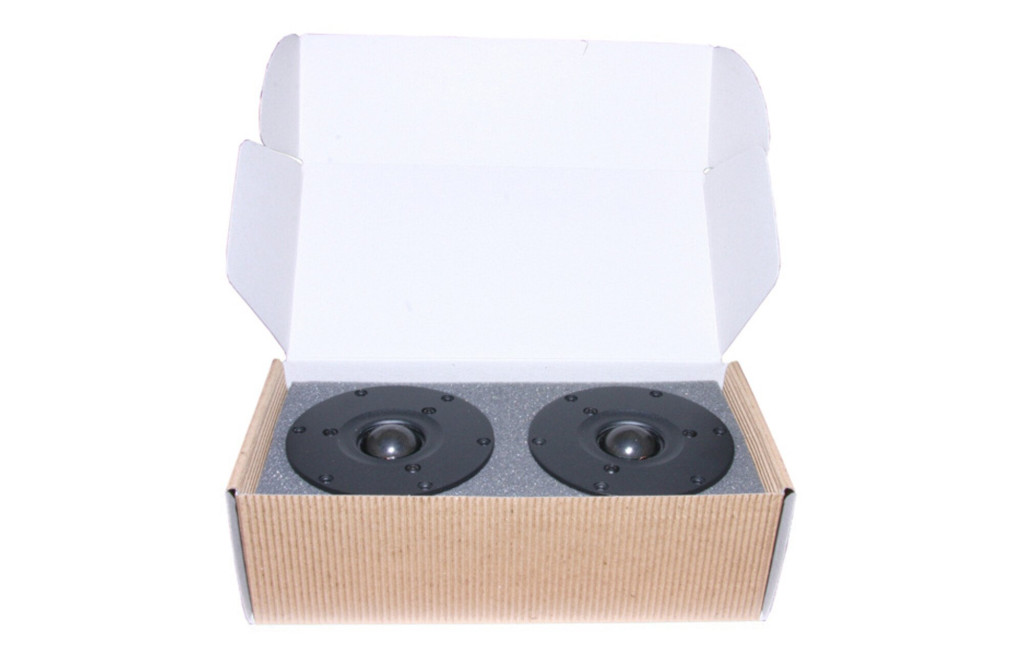

Morel ET 338-104 1-1/8" Soft Dome Tweeter Matched Pair


This pair of Morel ET338 Elite tweeters is acoustically matched from the manufacturer and based on the unique qualities of the famous Morel MDT 33. The new IDR™ (Improved Dispersion Recess) technology enables wider high frequency off-axis dispersion, resulting in a smoother overall performance. An aluminum faceplate with a newly refined texture offers extraordinary acoustical characteristics and exceptional quality finish.

Specifications

Article numberET338-104
EAN0844632065958
Tweeter TypeSoft Dome
Cone / Dome Diameter1.125"
Power Handling (RMS)200 Watts
Impedance (Z)8Ω
Sensitivity (SPL at 1m / 2.83V)92.5 dB
Frequency Response1,800 to 20,000Hz
Resonant Frequency (Fs)700 Hz
DC Resistance (Re)5.2Ω
Overall Outside Diameter4.09"
Cutout Diameter2.99
Depth2.48"
