The MW-166 employs a vented double magnet system which results in higher power handling, longer linear excursion, and superior bass response. Polymer treated paper cone, 3 " Hexatech aluminum voice coil, and rubber surround.
Highlights
- High power handling 1000W peak.
- Double ferrite magnet system.
- 75mm hexatech alumium voice coil.
- Neoprene rubber surround.
- Vented rigid steel chassis.
- Minimal stray magnetic field.
- Designed for infinite baffle cabinets.
Product details

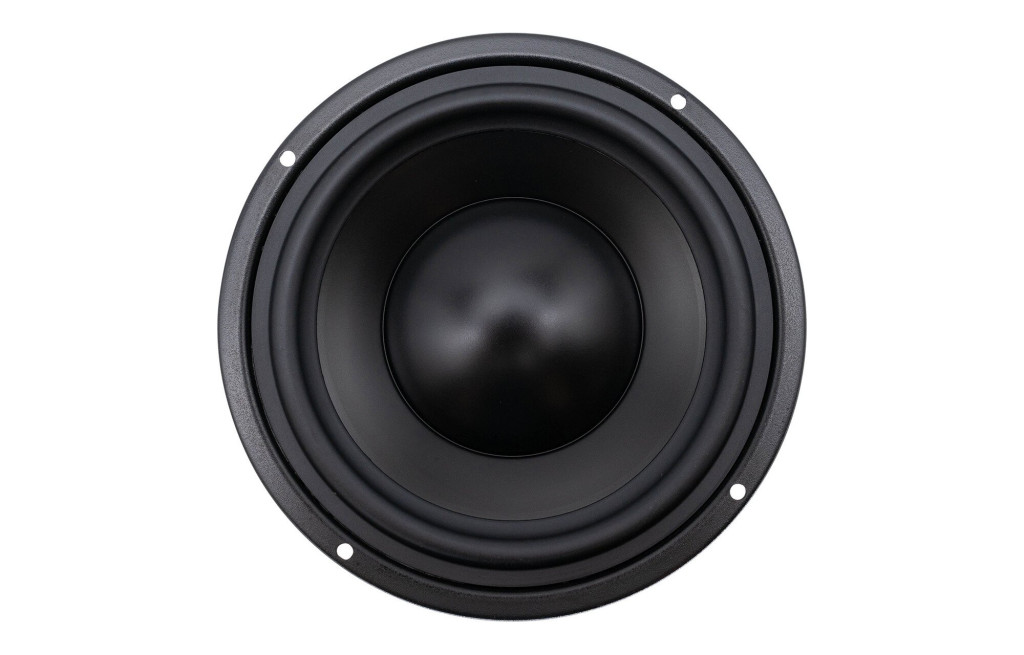

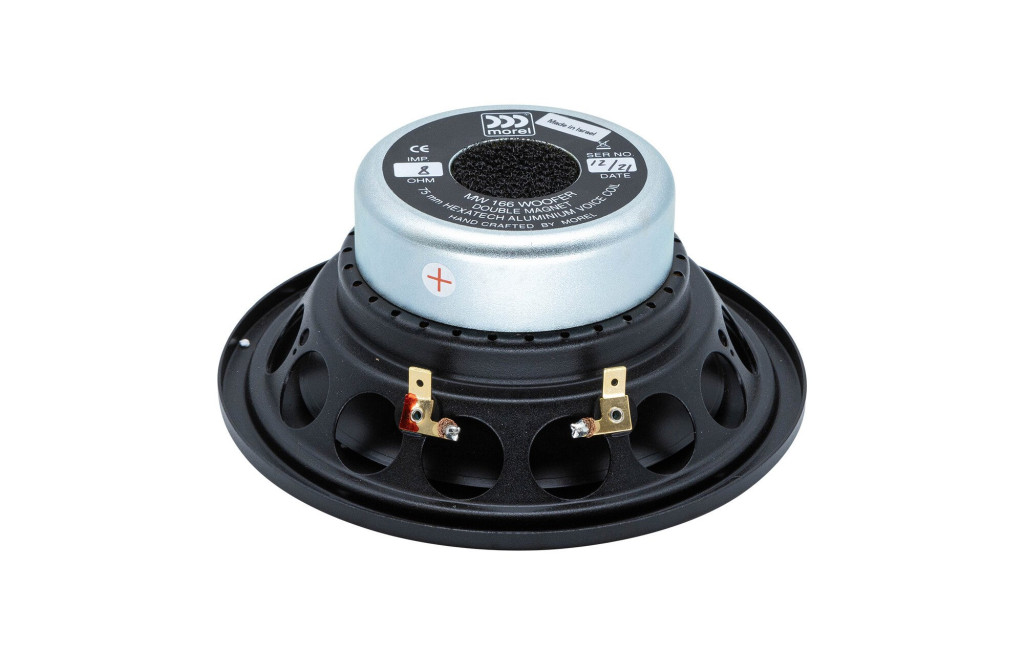

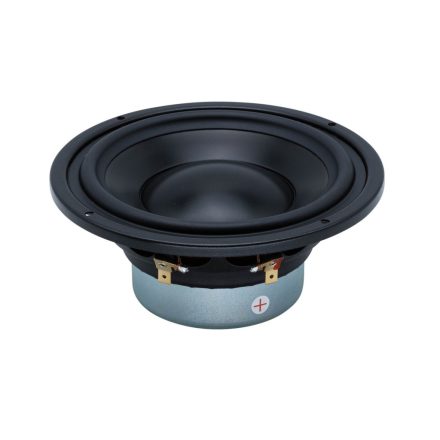

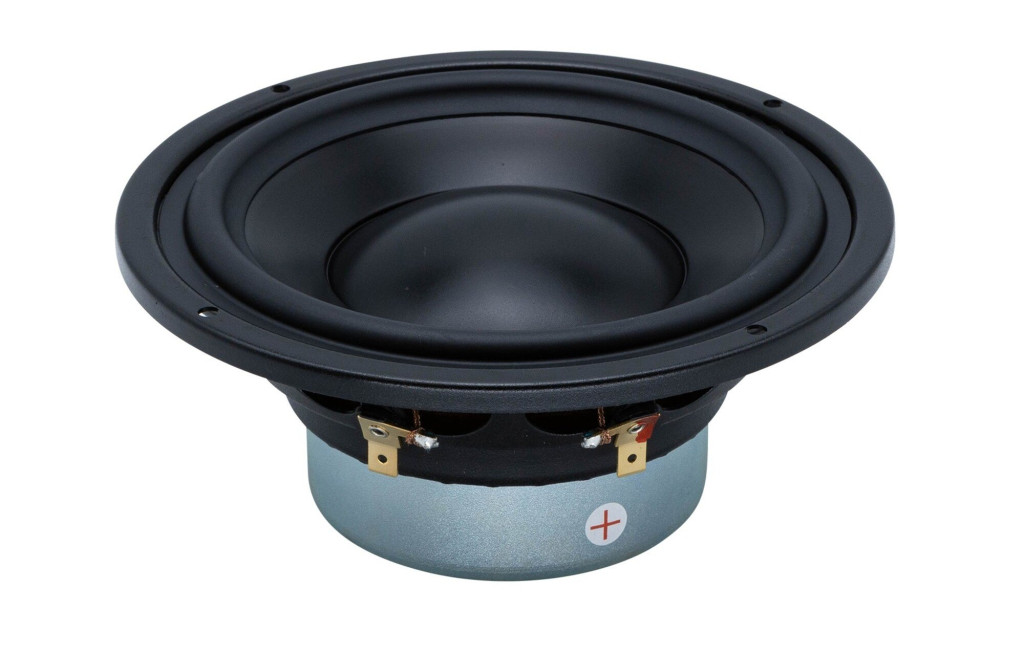

Morel MW166 Hexatech Woofer 8 Ohm
The Morel MW166 is a 6 inch drive unit featuring a rigid pressed steel chassis, a damped polymer cone, a huge 75mm Hexatech aluminium voice coil and a dual magnet system. Like it's smaller brother the MW144, this drive unit has a highish Qts of 0.58 and is designed to give a full bodied smooth response in sealed cabinets. Not suitable for ported or TL designs.
