Supreme SCM 634 6" Woofer
Supreme SCM 634 6" Woofer
424.76 € excl. VAT

Supreme SCM 634 6" Woofer

Supreme SCM 634 6" Woofer
Supreme SCM 634 6" Woofer
Supreme SCM 634 6" Woofer
Supreme SCM 634 6" Woofer
Supreme SCM 634 6" Woofer
Supreme SCM 634 6" Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Morel
Further data
Orderable
424.76 € excl. VAT
Details

Morel's SCM634 Supreme Coppersleeve Midrange neodymium/ferrite hybrid motor structure is combined with a cutting-edge cast alloy chassis for maximum performance.



Highlights

  • Carbon fiber/Rohacell/carbon fiber composite sandwich cone
  • 3" Hexatech™ aluminum underhung voice coil
  • Copper pole piece sleeve reduces inductance
  • Hybrid™ neodymium/ferrite magnet
  • Uniflow™ aluminum diecast chassis
  • High power handling



Product details

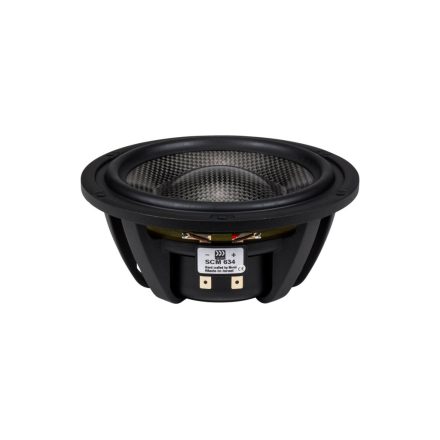

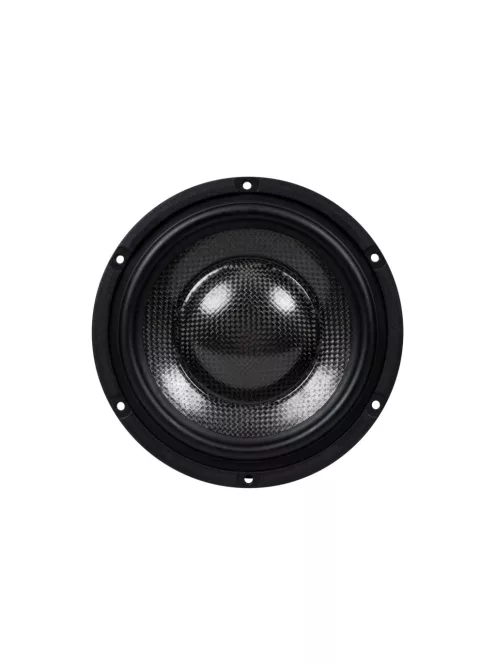

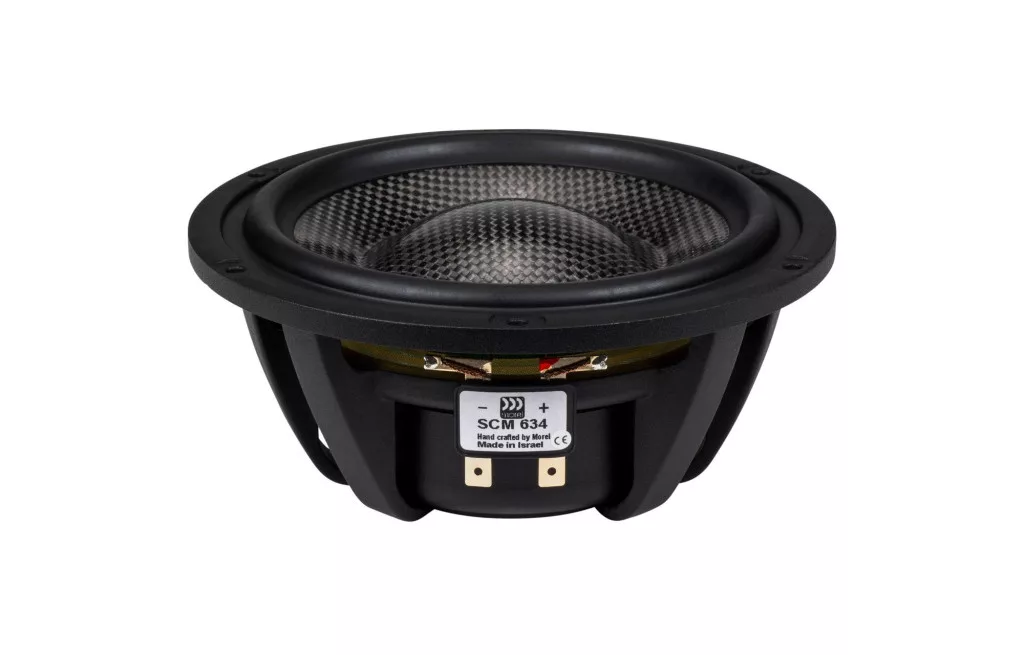

Morel Supreme SCM 634 6" Woofer



Morel's SCM634 Supreme Coppersleeve Midrange neodymium/ferrite hybrid motor structure is combined with a cutting-edge cast alloy chassis for maximum performance. This Uniflow frame provides a reflection-free backwave, while virtually eliminating any excursion noise. The composite sandwich cone facilitates smooth, accurate frequency response.

Specifications

Article numberSCM634
EAN0844632070822
Woofer SeriesMorel Supreme series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)150 Watts
Power Handling (max)300 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)89 dB
Frequency Response40 to 5,000 Hz
Voice Coil Diameter3"
DC Resistance (Re)3.3 ohms
Voice Coil Inductance (Le)0.12 mH
Resonant Frequency (Fs)49 Hz
Mechanical Q (Qms)1.32
Electromagnetic Q (Qes)0.59
Total Q (Qts)0.4
Diaphragm Mass Inc. Airload (Mms)14.5g
Mechanical Compliance of Suspension (Cms)0.73 mm/N
Surface Area of Cone (Sd)119 cm²
BL Product (BL)5.09 Tm
Compliance Equivalent Volume (Vas)0.49 ft.³
Maximum Linear Excursion (Xmax)5.25 mm
Cone / Diaphragm MaterialCarbon Fiber Composite
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter6.3"
Overall Depth2.71"
Baffle Cutout Diameter5.51"
# Mounting Holes6
Mounting Hole Diameter3 mm
Sealed Volume0.17 ft.³
Sealed F396 Hz
Vented Volume0.42 ft.³
Vented F351 Hz
