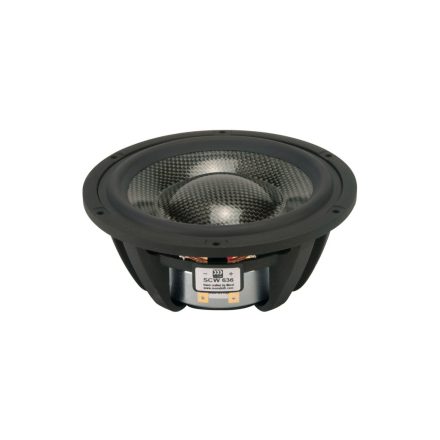

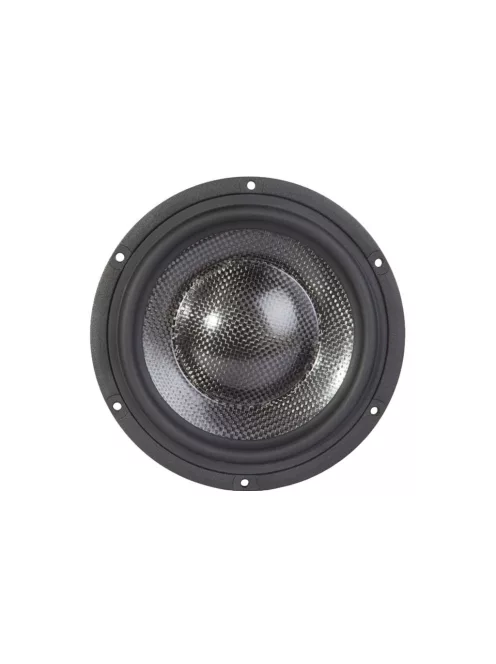

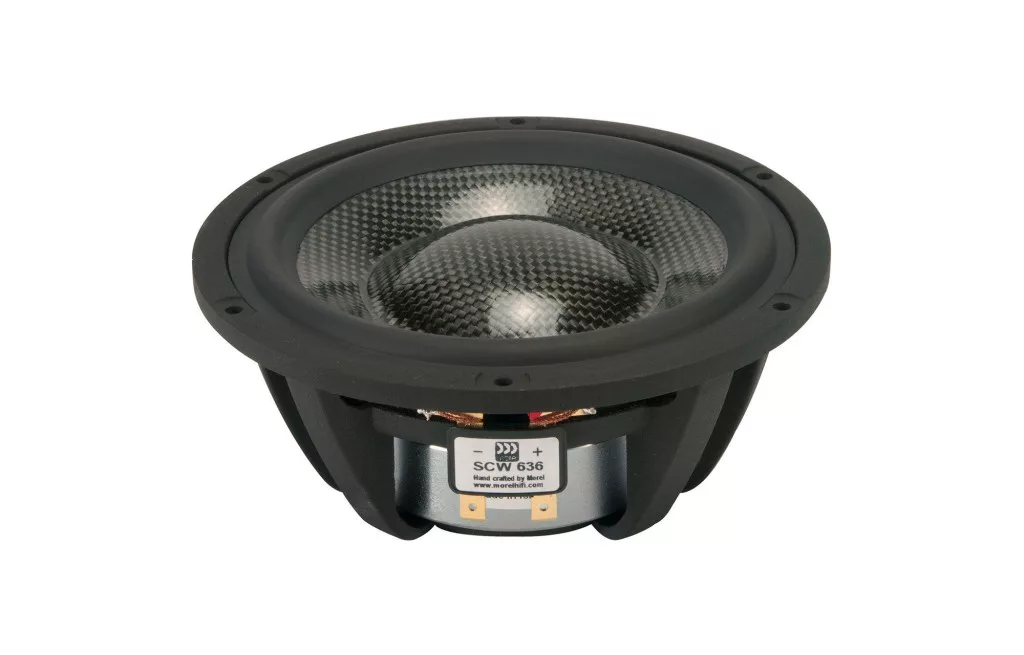

Supreme SCW 636 6" Woofer
Supreme SCW 636 6" Woofer
416.26 € excl. VAT

Supreme SCW 636 6" Woofer

Supreme SCW 636 6" Woofer
Supreme SCW 636 6" Woofer
Supreme SCW 636 6" Woofer
Supreme SCW 636 6" Woofer
Supreme SCW 636 6" Woofer
Supreme SCW 636 6" Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Morel
Further data
Orderable
416.26 € excl. VAT
Details

The Morel Supreme Series SCW636 woofer features a 16 mm long, 3" diameter Hexatech voice coil that provides plenty of deep bass punch, and a copper-covered pole piece design reduces inductance.



Highlights

  • Carbon fiber/Rohacell/carbon fiber composite sandwich cone
  • 3" Hexatech™ aluminum voice coil
  • Copper pole piece sleeve reduces inductance
  • Hybrid™ neodymium/ferrite magnet
  • Uniflow™ aluminum diecast chassis
  • High power handling



Product details

Morel Supreme SCW 636 6" Woofer



The Morel Supreme Series SCW636 woofer features a 16 mm long, 3" diameter Hexatech voice coil that provides plenty of deep bass punch, and a copper-covered pole piece design reduces inductance. Morel's Uniflow open frame virtually eliminates diaphragm back pressure and excursion noise.

Specifications

Article numberSCW636
EAN0844632070839
Woofer SeriesMorel Supreme series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)150 Watts
Power Handling (max)1,000 Watts
Impedance (Z)6 ohms
Sensitivity (SPL at 1m / 2.83V)87 dB
Frequency Response30 to 5,000 Hz
Voice Coil Diameter3"
DC Resistance (Re)4.5 ohms
Voice Coil Inductance (Le)0.29 mH
Resonant Frequency (Fs)40 Hz
Mechanical Q (Qms)1.76
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.29
Diaphragm Mass Inc. Airload (Mms)16g
Mechanical Compliance of Suspension (Cms)0.97 mm/N
Surface Area of Cone (Sd)119 cm²
BL Product (BL)7.2 Tm
Compliance Equivalent Volume (Vas)0.65 ft.³
Maximum Linear Excursion (Xmax)5 mm
Cone / Diaphragm MaterialCarbon Fiber Composite
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter6.3"
Overall Depth2.72"
Baffle Cutout Diameter5.512"
# Mounting Holes6
Mounting Hole Diameter4.2 mm
Sealed Volume0.08 ft.³
Sealed F3118 Hz
Vented Volume0.18 ft.³
Vented F375 Hz
