Supreme ST 1308 Dome Tweeter Matched Pair
Supreme ST 1308 Dome Tweeter Matched Pair
535.21 € excl. VAT

Supreme ST 1308 Dome Tweeter Matched Pair

Supreme ST 1308 Dome Tweeter Matched Pair
Supreme ST 1308 Dome Tweeter Matched Pair
Supreme ST 1308 Dome Tweeter Matched Pair
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Morel
Orderable
535.21 € excl. VAT
Details

Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.



Highlights

  • Sold in factory matched pairs
  • 130 mm IDR™ Improved Dispersion Recess aluminum faceplate
  • Flat neodymium motor structure provides maximum flux
  • Hexatech™ voice coil for maximum BL product and power handling
  • Acuflex™ coated dome with the perfect blend of internal damping and rigidity
  • Precisely matched acoustic loading between the dome cavity and rear chamber
  • Unique offset dome design



Product details

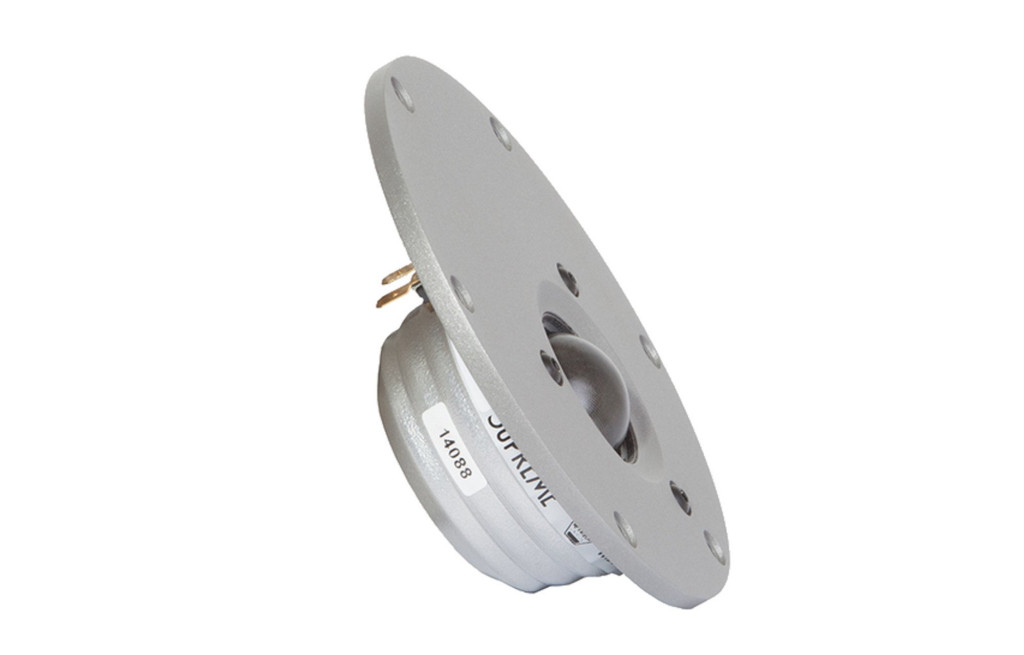

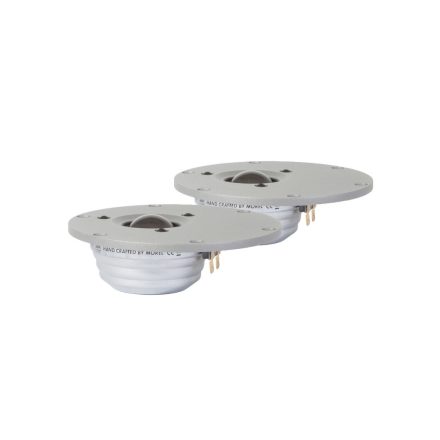

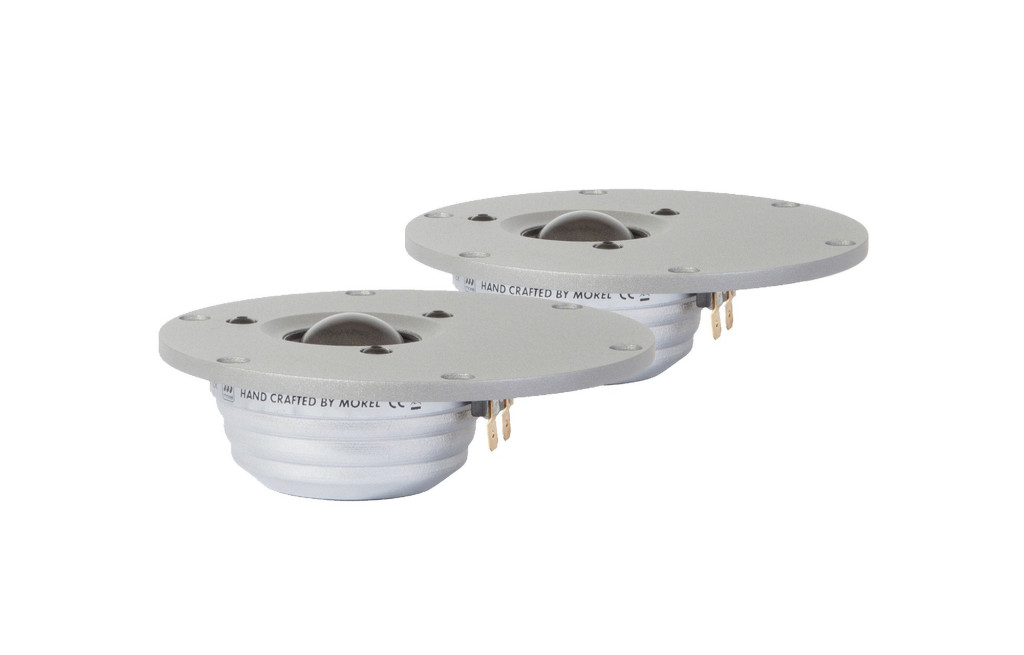

Morel Supreme ST 1308 1" Dome Tweeter Matched Pair



Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there always during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.

Specifications

Article numberST1308
EAN0844632070815
Tweeter TypeSoft Dome
Tweeter SeriesSupreme series
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)220 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)91.5 dB
Frequency Response1,400-22,000 Hz
Resonant Frequency (Fs)680 Hz
DC Resistance (Re)5.2 ohms
Voice Coil Inductance (Le)0.09 mH
Total Q (Qts)0.44
Overall Outside Diameter5.12"
Cutout Diameter4.09"
Depth1.57"
