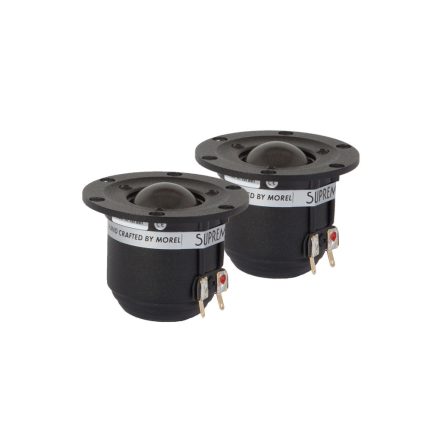

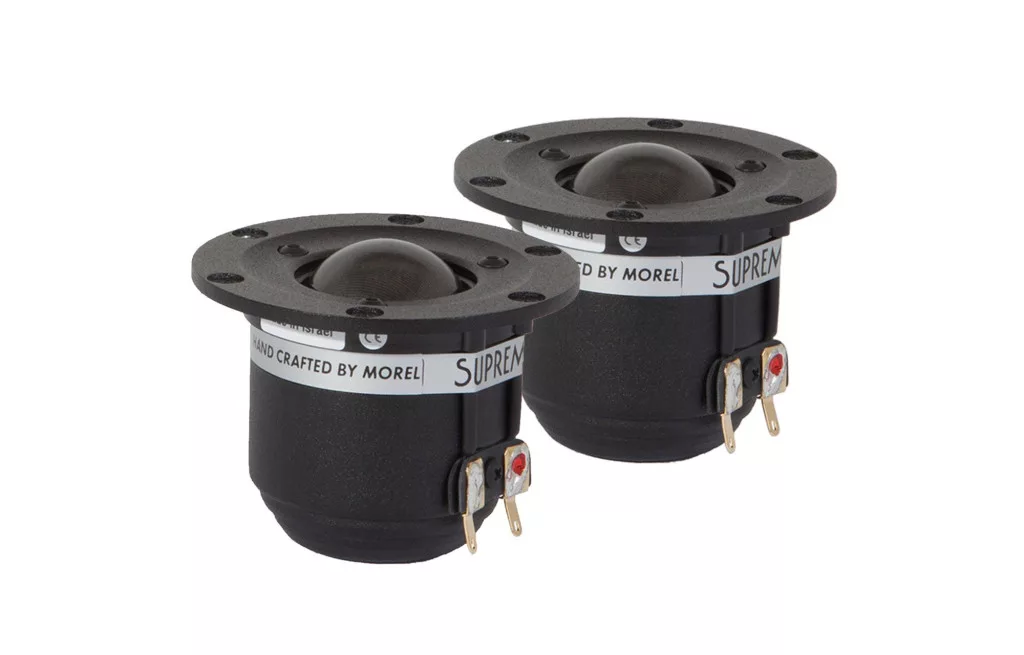

Supreme ST 728 Dome Tweeter Matched Pair
Supreme ST 728 Dome Tweeter Matched Pair
509.72 € excl. VAT

Supreme ST 728 Dome Tweeter Matched Pair

Supreme ST 728 Dome Tweeter Matched Pair
Supreme ST 728 Dome Tweeter Matched Pair
Supreme ST 728 Dome Tweeter Matched Pair
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Morel
Orderable
509.72 € excl. VAT
Details

Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.



Highlights

  • Sold in factory matched pairs
  • 72 mm IDR™ Improved Dispersion Recess aluminum faceplate
  • Flat neodymium motor structure provides maximum flux
  • Hexatech™ voice coil for maximum BL product and power handling
  • Acuflex™ coated dome with the perfect blend of internal damping and rigidity
  • Precisely matched acoustic loading between the dome cavity and rear chamber



Product details

Morel Supreme ST 728 1" Dome Tweeter Matched Pair



Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there always during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.

Specifications

Article numberST728
EAN0844632070785
Tweeter TypeSoft Dome
Tweeter SeriesSupreme Serie
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)120 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)91 dB
Frequency Response1,600 to 22,000 Hz
Resonant Frequency (Fs)800 Hz
DC Resistance (Re)5.2 ohms
Voice Coil Inductance (Le)0.05 mH
Mechanical Q (Qms)0.8
Electromagnetic Q (Qes)0.65
Total Q (Qts)0.36
Overall Outside Diameter2.82"
Cutout Diameter2.08"
Depth2.08"
