For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Supreme series midrange. The 6" TSCM 634 features an underhung 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response, a Uniflow chassis for reduced power compression, and a copper-sleeved pole piece for reduced inductance.
Highlights
- Hybrid neodymium-ferrite motor with 3" Hexatech underhunge voice coil
- Copper sleeve pole piece and titanium coil bobbin for low energy storage
- High 1,000 Watt instantaneous power handling
- Open Uniflow aluminum diecast chassis for reduced reflections
- Unique carbon fiber-Rohacell cone
Product details

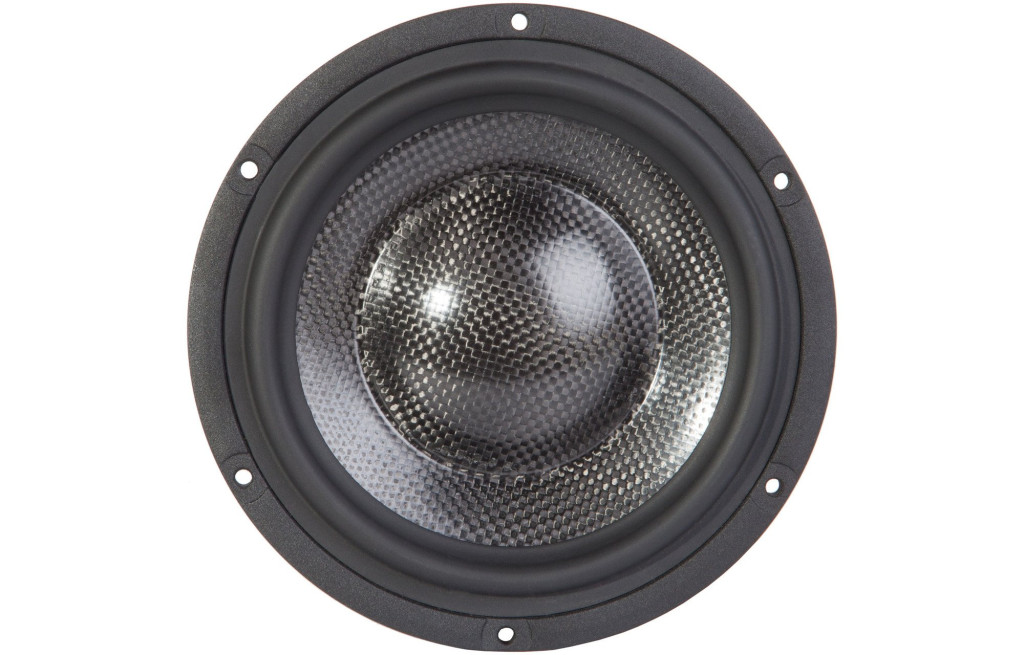

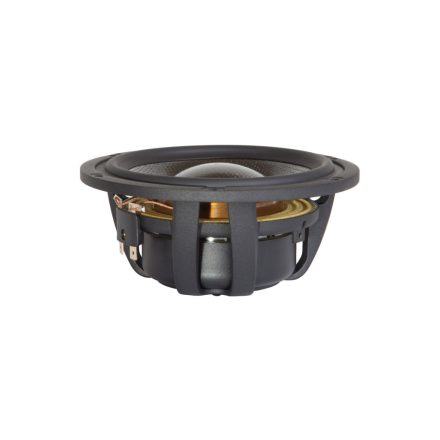

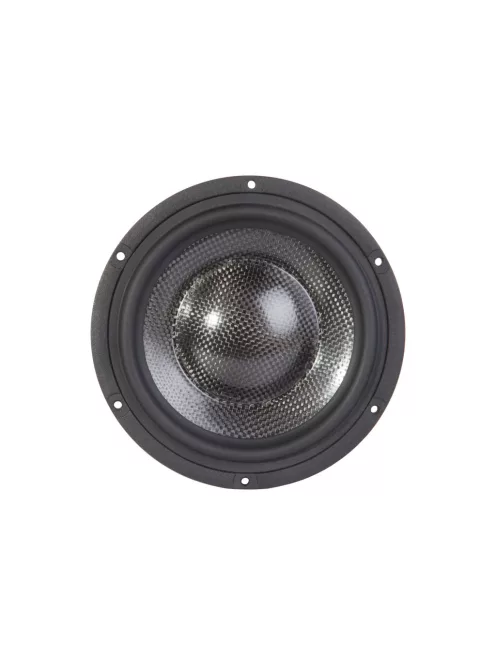

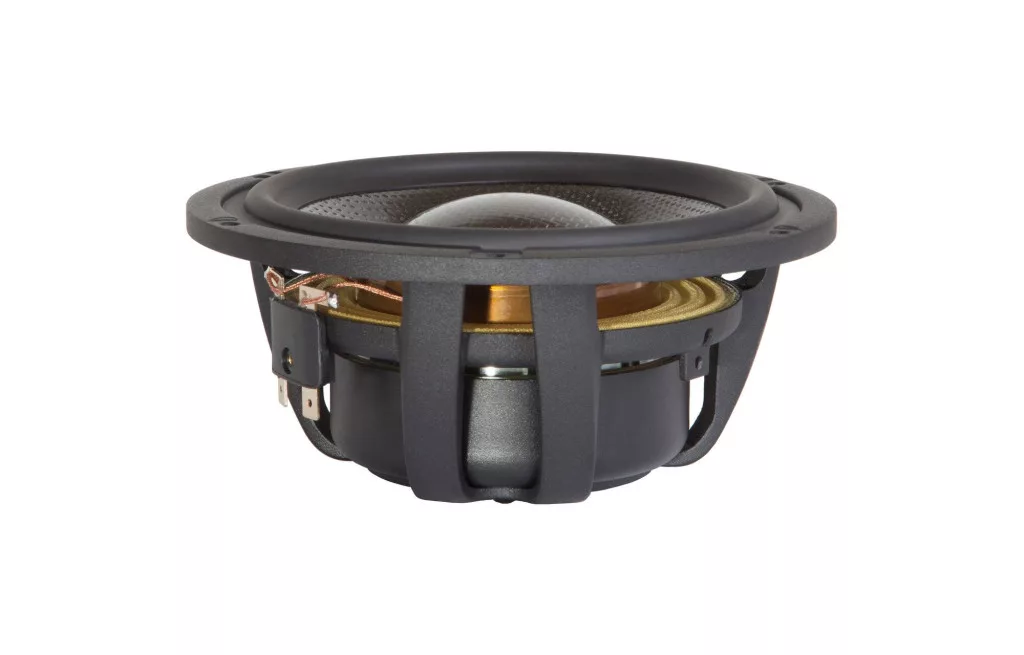

Morel TSCM 634 Titanium Supreme Series 6" Midrange 4 Ohm
Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.
Morel Titanium Supreme Series
The Titanium Supreme midrange drivers from Morel are the latest leap forward in design. Huge 3" Hexatech™ aluminum underhung voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance.

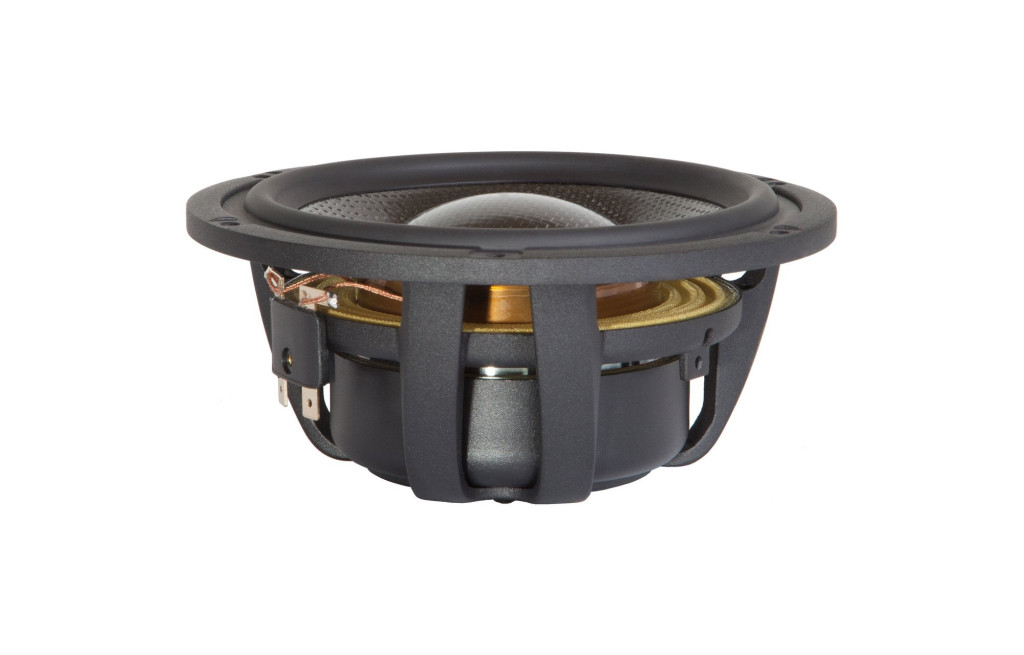

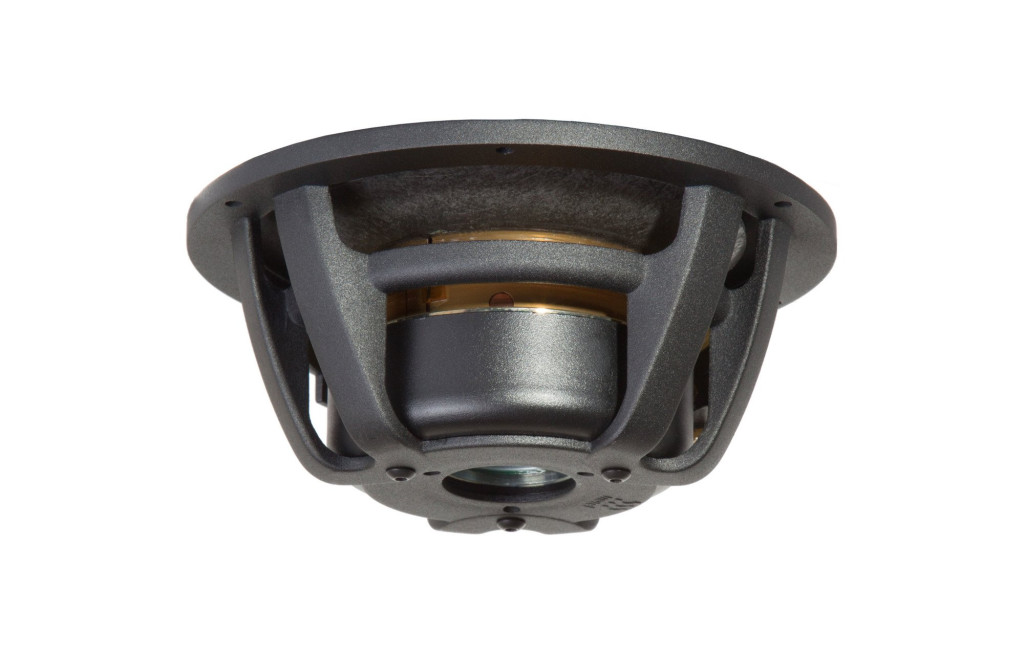

Uniflow™ Aluminum Diecast Chassis
All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.
The 6" TSCM 634 midrange features a 4-ohm impedance, and a unique, carbon fiber-Rohacell® composite cone offers flat frequency response from 49 Hz to 8,000 Hz on-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.
