Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.
Highlights
- Underhung voice coil, 4 ohm
- Acoustically matched pair
- 1⅛” Large Hexatech™ Aluminum voice coil
- Neodymium flat pancake magnet
- High power handling
- 110mm IDR™ (Improved Dispersion Recess)
- Titanium Voice Coil Former
- Replaceable Acuflex™ dome/coil assembly
- Aluminum die-cast rear chamber
- Copper shorting ring (in & out)
Product details

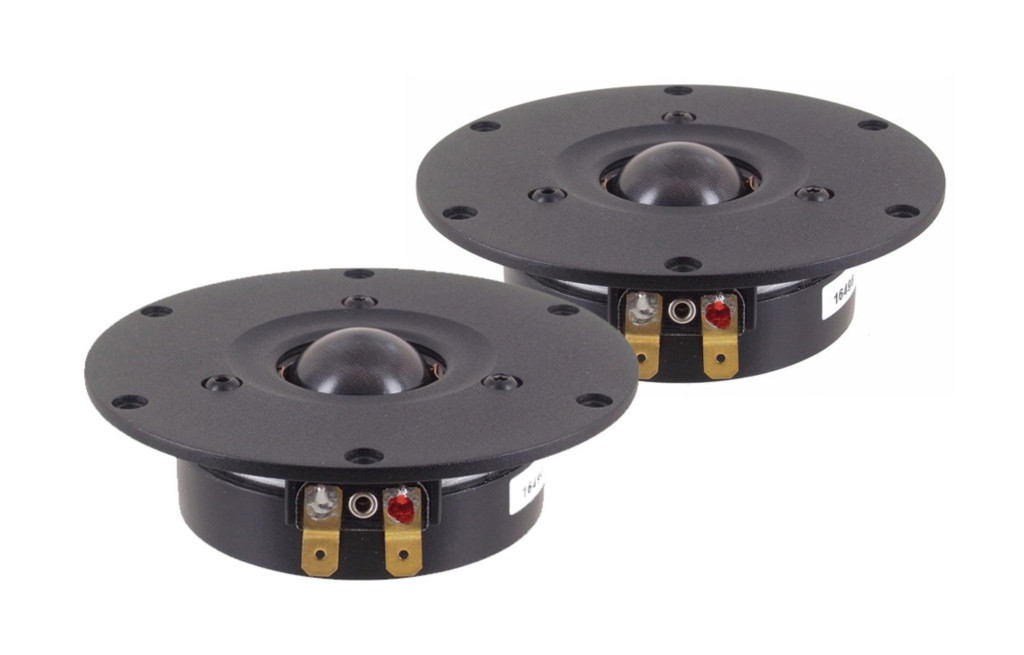

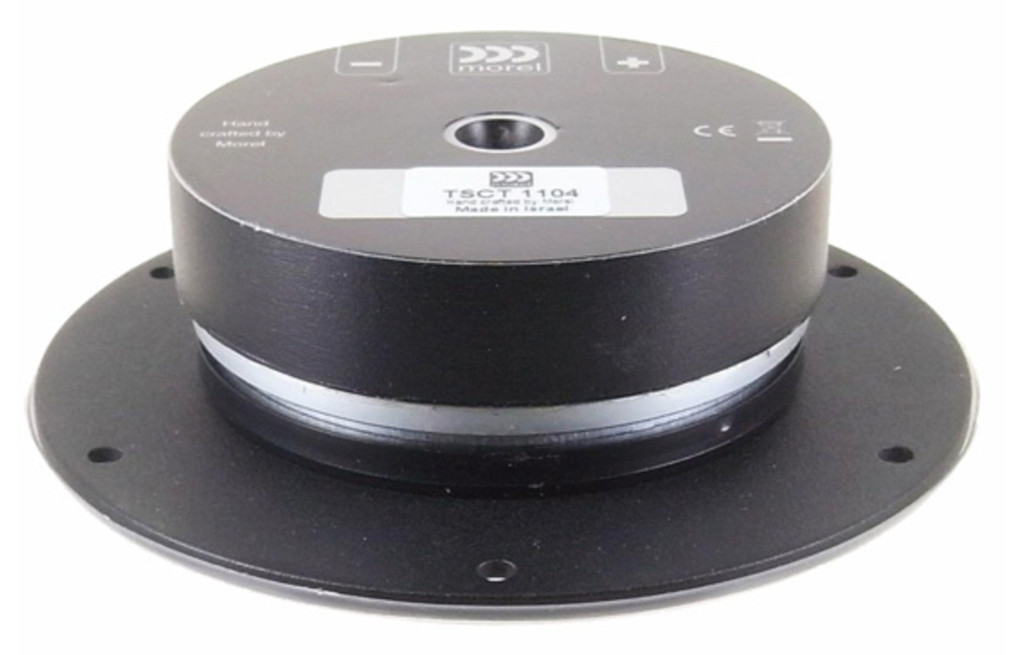

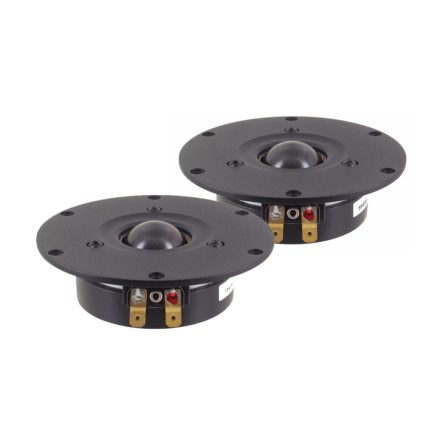

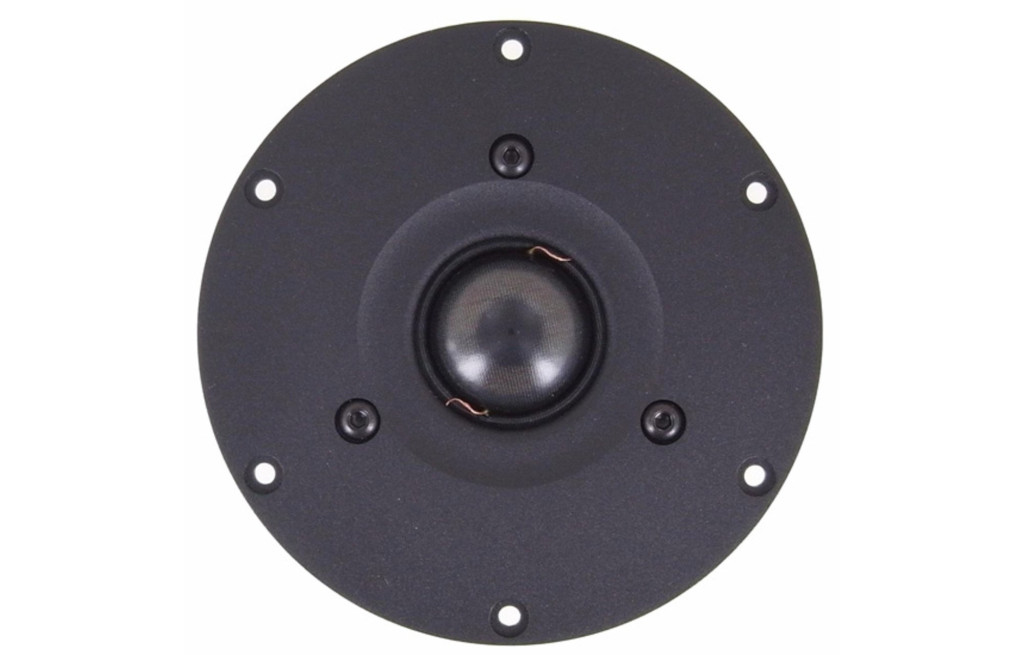

Morel Supreme TSCT 1104 1" Dome Tweeter Matched Pair
Sold as each but packaged in matched pairs. Innovative engineering and an advanced approach to acoustic construction makes SUPREME a superior high-performance tweeter. With an acoustic construction based on the underhung voice coil configuration method, SUPREME voice coil moves in a significantly higher magnetic field and fully remains there always during operation. As a result, SUPREME provides a linear excursion of the coil in the magnetic field; eliminates intermodulation distortion created by non-linear excursion; eliminates sound compression at high levels; and considerably improves low frequency reproduction.
Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.
