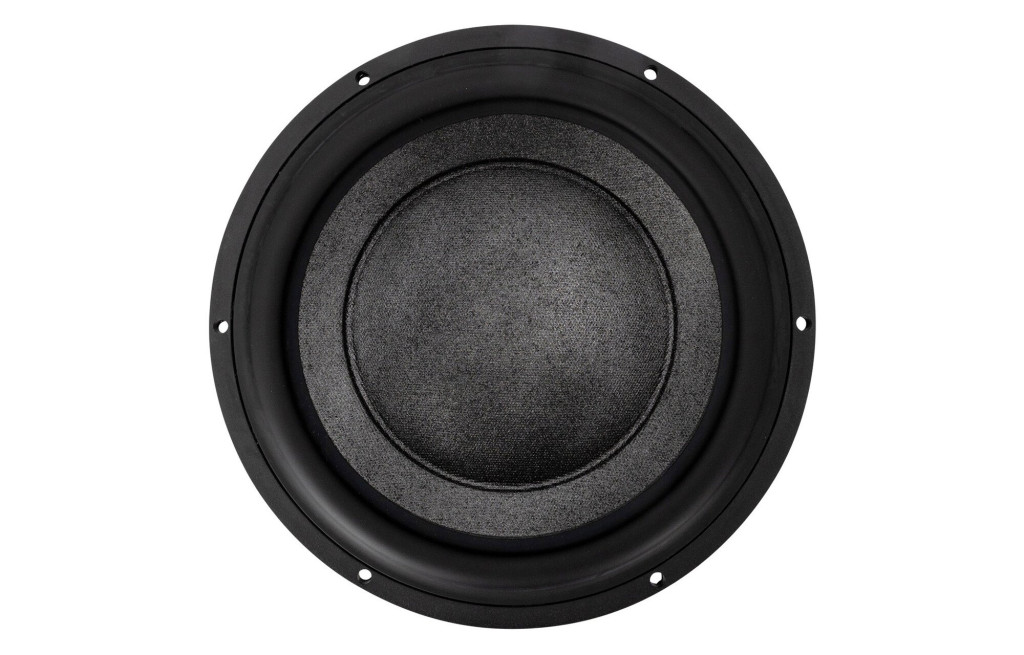

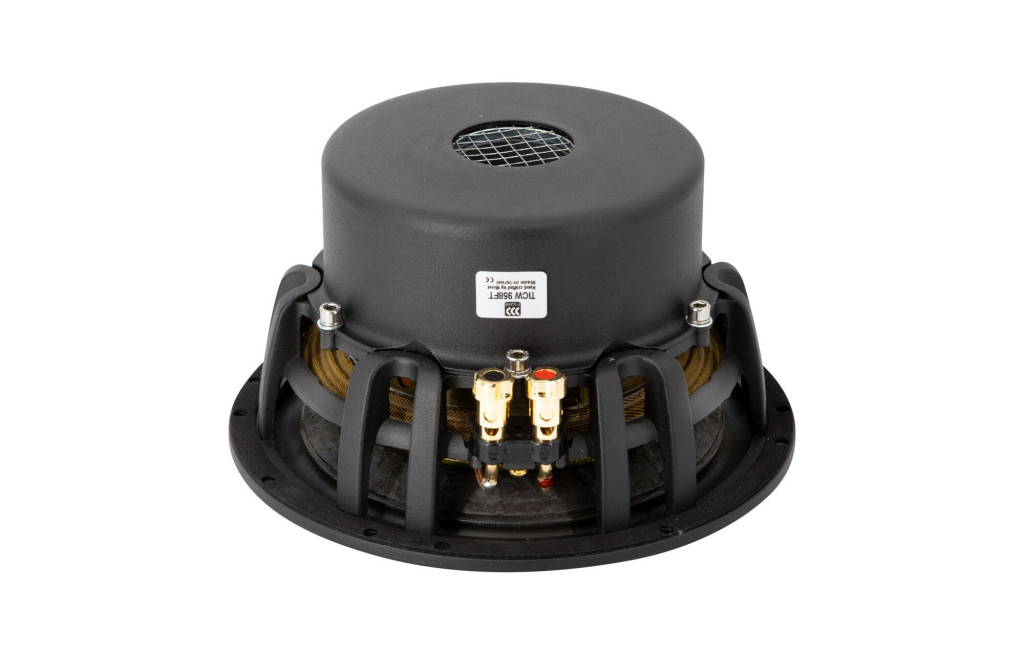

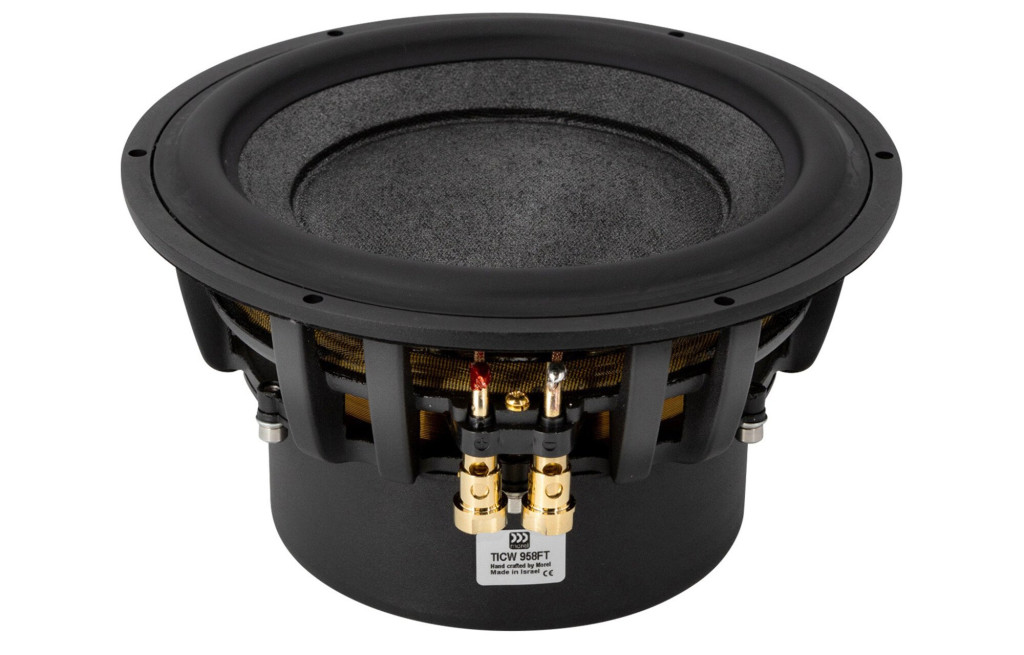

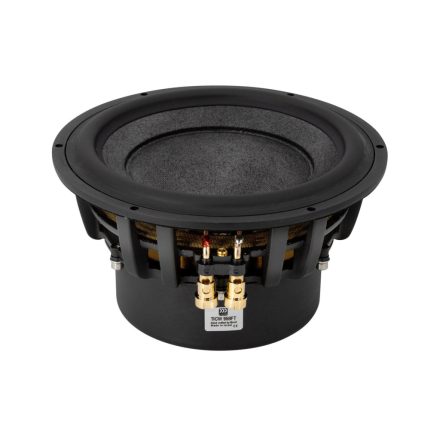

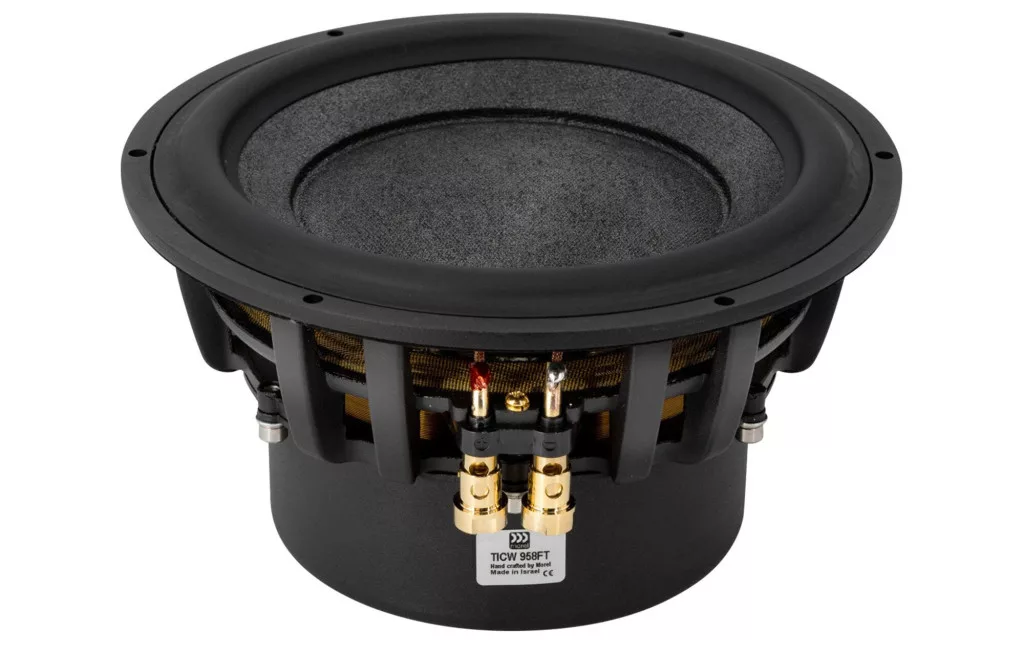

TiCW958Ft Titanium Series 9" Subwoofer 8 Ohm

The Morel TiCW958Ft is a 9 inch woofer that has a titanium coil bobbin and a 5.1 inch Hexatech aluminum voice coil. It has a nominal power handling of 500W and a transient power of 1500W. It has a sensitivity of 85 dB SPL and a frequency response of 26Hz to 3000Hz.

To create their Titanium Ultimate high fidelity 9" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel uses a high flux double magnet system.

Speed-robbing energy storage is reduced to an insanely low 0.62 mH through the combination of the titanium former and a copper-sleeved pole piece. Trapped air within the subwoofer is virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.
