Ultimate UW1258 12" Subwoofer

And now…the Ultimate 12" subwoofer. Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver. Extra-large diameter 5" voice coil, free-breathing cast frame, and symmetrical suspension system guarantee the ultimate in subwoofer performance.

Highlights

• Uniflow™ aluminum diecast chassis
• High-flux double ferrite magnet system
• 5.1" Hexatech™ aluminum voice coil with 1-1/2" winding length
• Very high Xmax for extended bass response
• One piece paper cone/center dome
• Accucenter™ self-centering cone assembly
• PFS™ Progression Field Symmetry spider/surround engineering

Product details

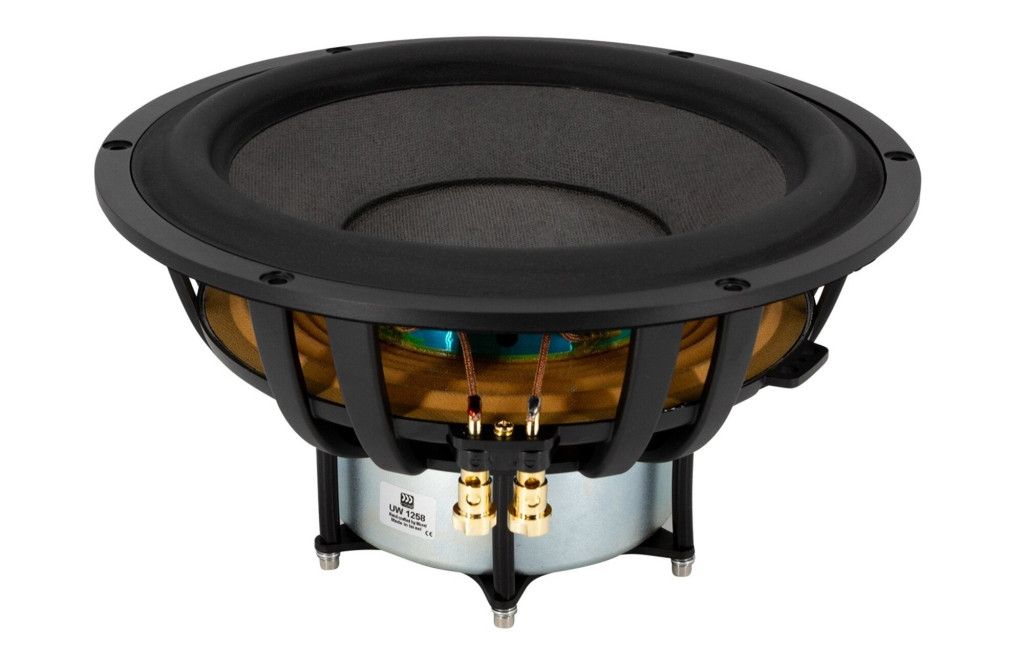

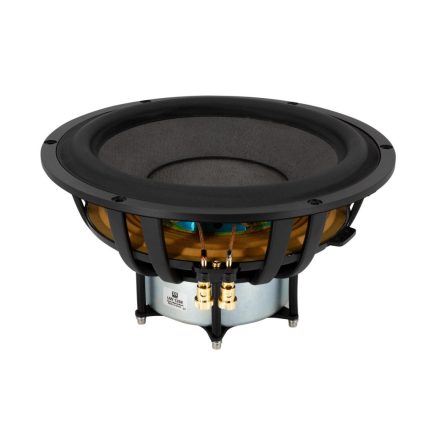

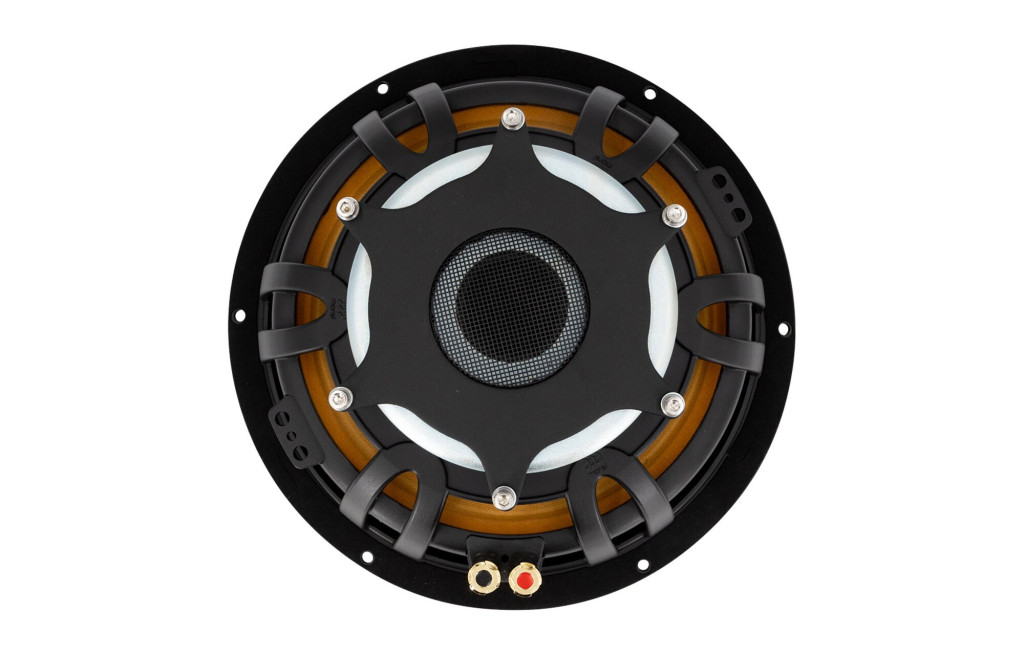

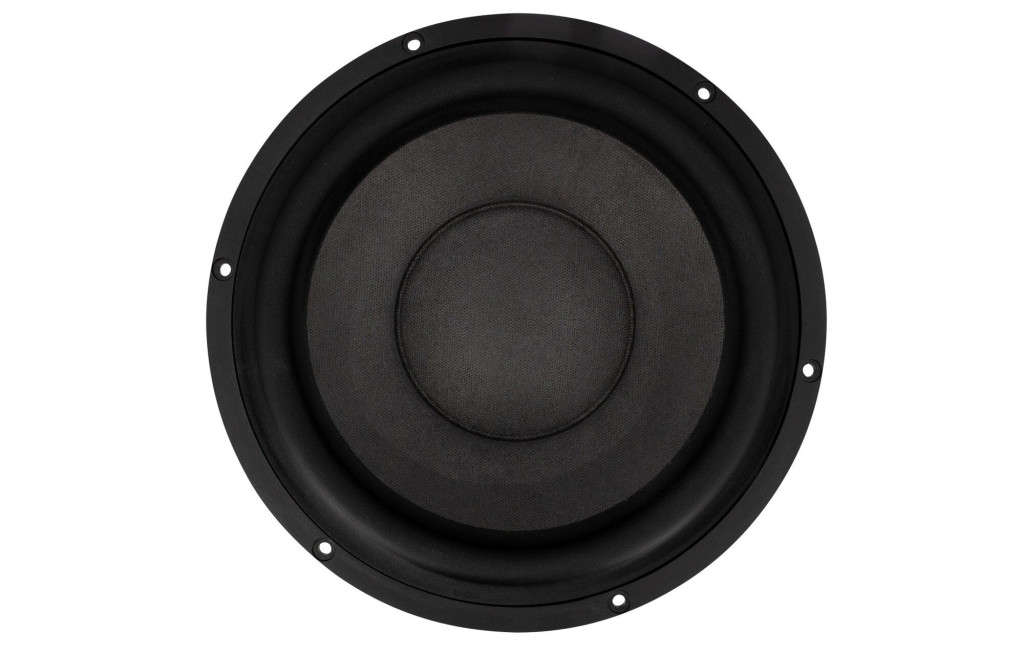

Morel Ultimate UW1258 12" Subwoofer

The Morel UW1258 is a 12" subwoofer with one piece paper cone. It has a nominal impedance of 8 Ω, resonance frequency of 21 Hz, sensitivity of 87 dB and equivalent volume of 138 l. The total Q factor is 0.43 and the power is 800 W (DIN). It has a Uniflow Aluminum diecast chassis and a high flux double Ferrite magnet system.

The Ultimate Subwoofer Line also includes other models such as the Classic Woofer which is a 10" paper/carbon cone with a nominal impedance of 4 Ω.
