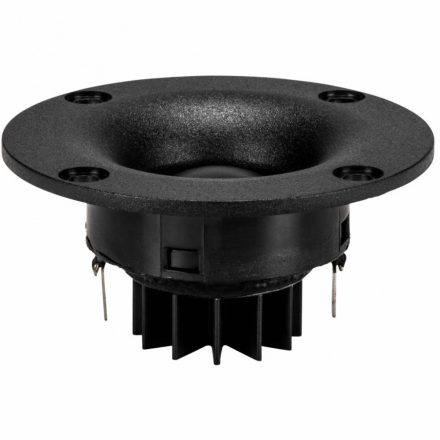

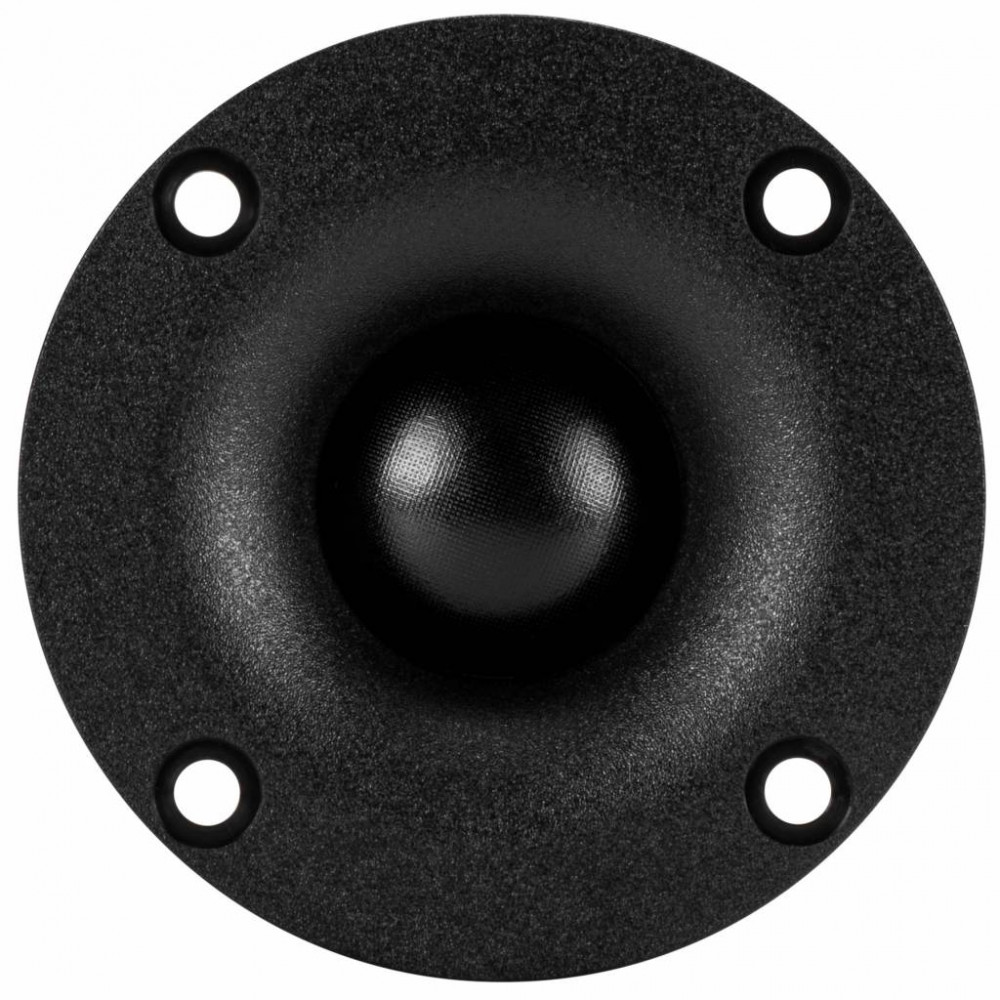

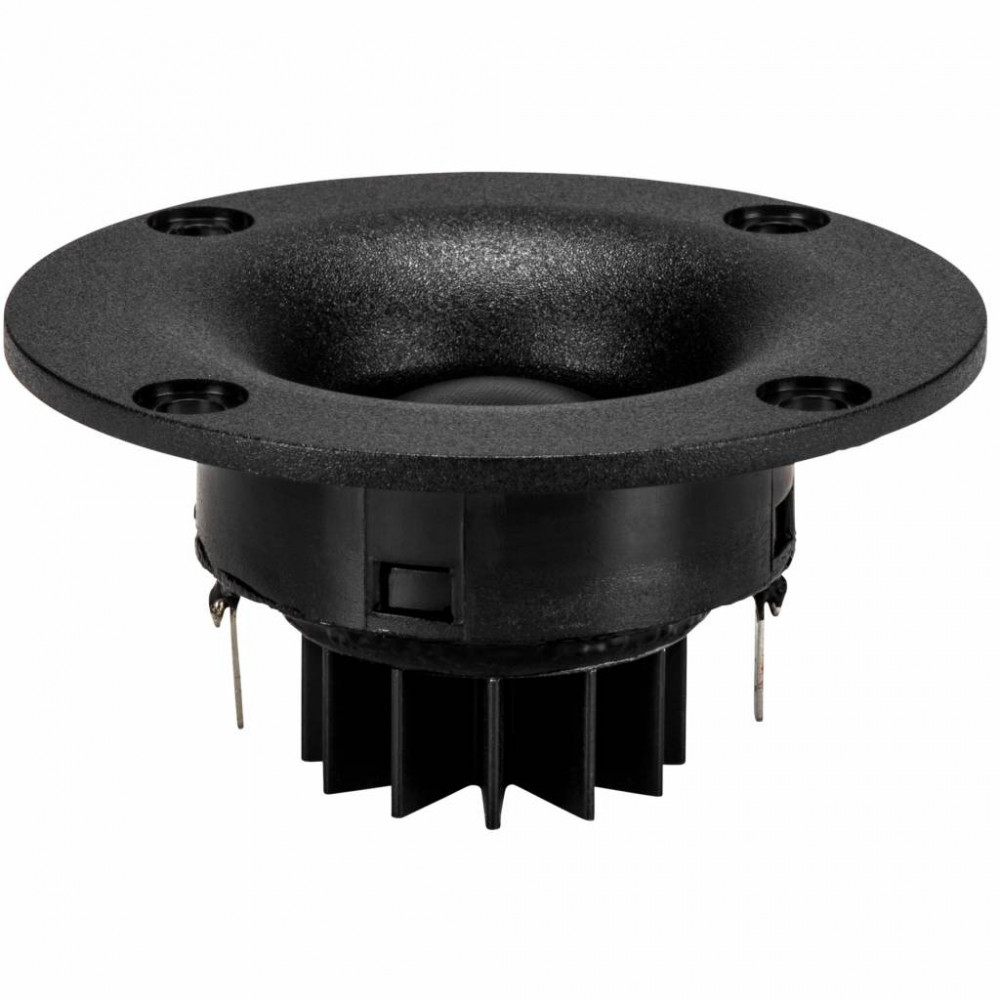

BC25SC08-04 1" Silk Dome Tweeter with Waveguide
BC25SC08-04 1" Silk Dome Tweeter with Waveguide
23.84 € excl. VAT

BC25SC08-04 1" Silk Dome Tweeter with Waveguide

BC25SC08-04 1" Silk Dome Tweeter with Waveguide
BC25SC08-04 1" Silk Dome Tweeter with Waveguide
BC25SC08-04 1" Silk Dome Tweeter with Waveguide
BC25SC08-04 1" Silk Dome Tweeter with Waveguide
BC25SC08-04 1" Silk Dome Tweeter with Waveguide
BC25SC08-04 1" Silk Dome Tweeter with Waveguide
BC25SC08-04 1" Silk Dome Tweeter with Waveguide
BC25SC08-04 1" Silk Dome Tweeter with Waveguide
Peerless
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Further data
Out of stock - orderable
23.84 € excl. VAT
Details
Tweeter Type: Soft Dome
Tweeter Series: BC Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 100 Watts
Impedance (Z): 4 ohms
Sensitivity: 98.8 dB 1W/1m

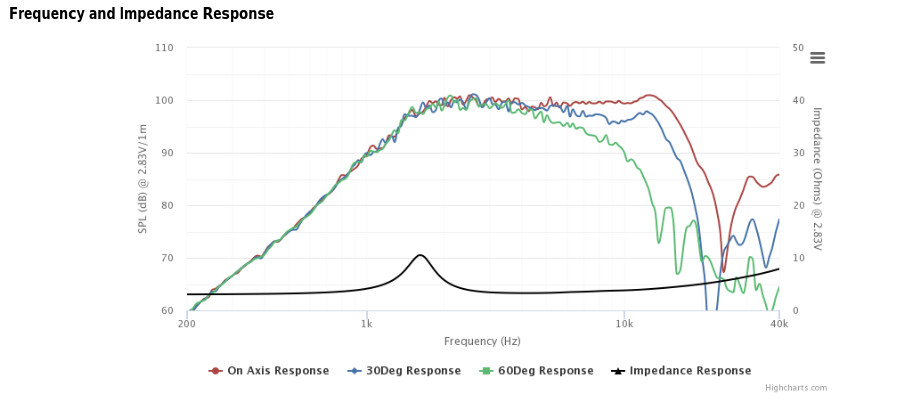

Frequency Response: 2500 to 18,000 Hz
Resonant Frequency (Fs): 1,660 Hz
DC Resistance (Re): 2.8 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 4.9
Electromagnetic Q (Qes): 1.53
Info
Article No.
PEE-BC25SC08-04
