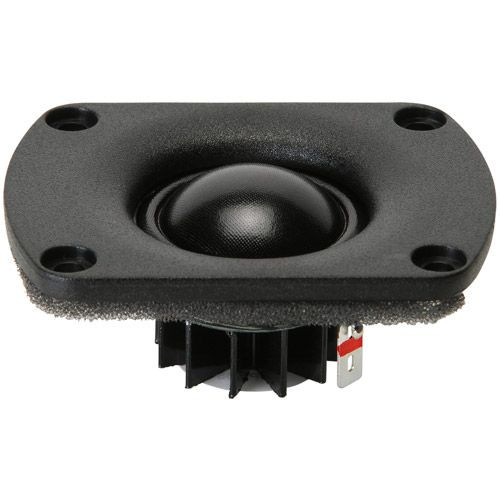

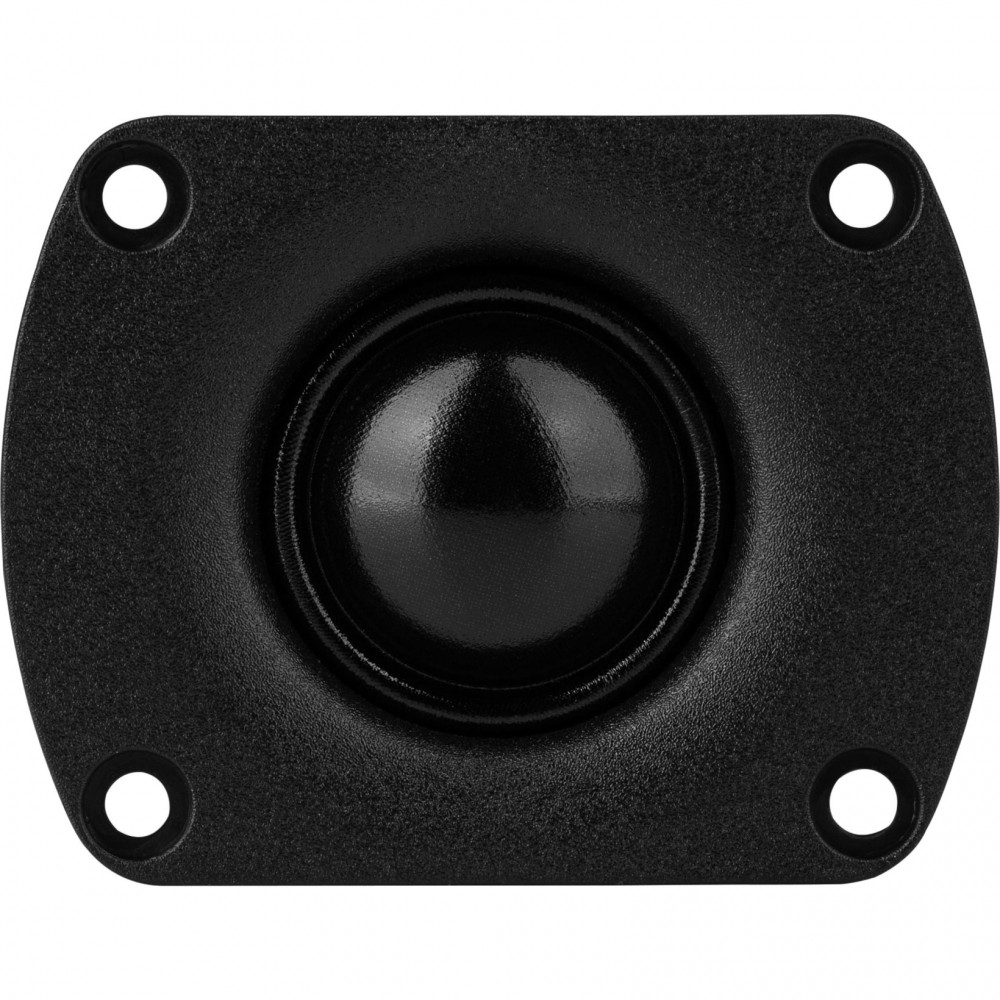

BC25SC55-04 1" Square Frame Tweeter

Name: BC25SC55-04 1" Square Frame Tweeter
Brand: PeerlessbyTymphany
SKU: PEE-BC25SC55-04
Price: 24.96 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Out of stock - orderable

19.65 € excl. VAT

Details

Tweeter Type: Soft Dome

Tweeter Series: BC Series

Cone / Dome Diameter: 1"

Power Handling (RMS): 25 Watts

Impedance (Z): 4 ohms

Sensitivity: 94 dB 1W/1m

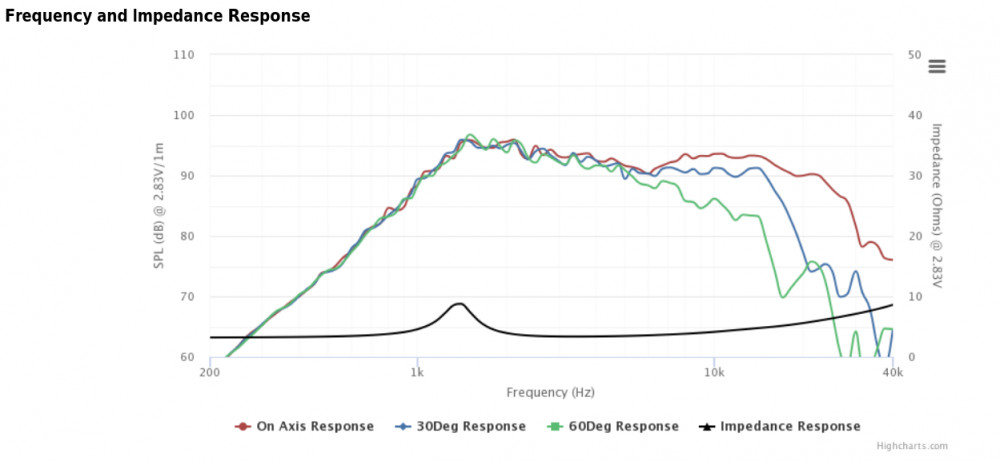

Frequency Response: 2200 to 28,000 Hz

Resonant Frequency (Fs): 1,320 Hz

DC Resistance (Re): 3 ohms

Voice Coil Inductance (Le): 0.02 mH

Mechanical Q (Qms): 3.82

Electromagnetic Q (Qes): 1.83

Total Q (Qts): 1.24
