Tweeter Type: Soft Dome
Tweeter Series: D Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 100 Watts
Impedance (Z): 6 ohms
Sensitivity: 91.1 dB 1W/1m

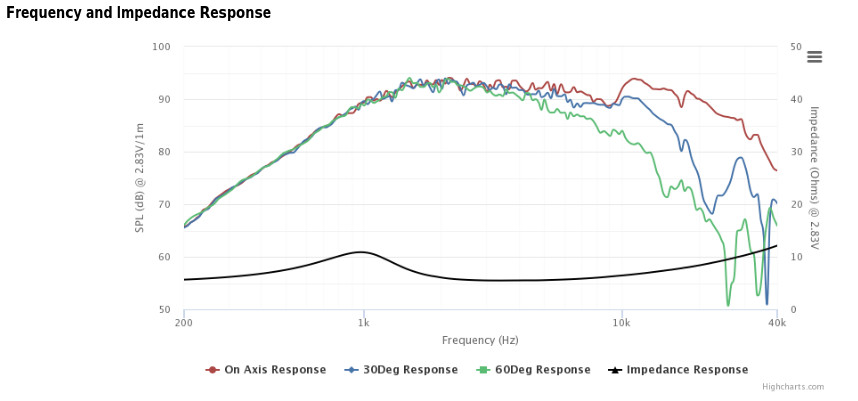

Frequency Response: 2500 to 20,000 Hz
Resonant Frequency (Fs): 1,657 Hz
DC Resistance (Re): 4.9 ohms
Voice Coil Inductance (Le): 0.04 mH
Mechanical Q (Qms): 1.21
Electromagnetic Q (Qes): 1.01
Total Q (Qts): 0.55
