Tweeter Type: Soft Dome
Tweeter Series: DX Series
Cone / Dome Diameter: 3/4"
Power Handling (RMS): 60 Watts
Impedance (Z): 4 ohms
Sensitivity: 86.9 dB 1W/1m

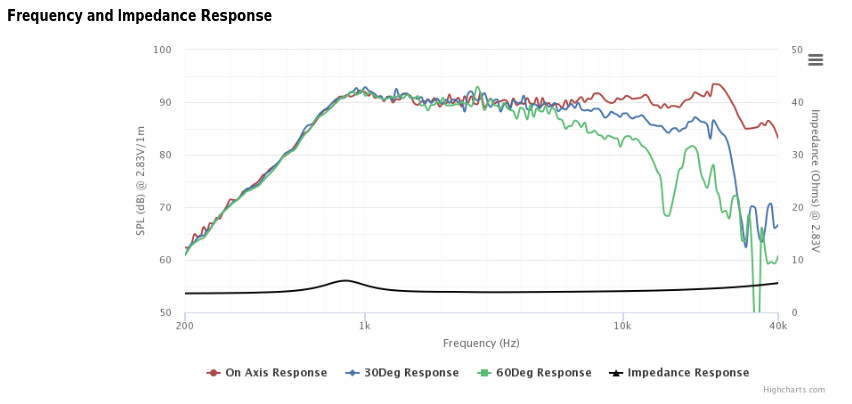

Frequency Response: 2500 to 20,000 Hz
Resonant Frequency (Fs): 824 Hz
DC Resistance (Re): 2.81 ohms
Voice Coil Inductance (Le): 0.01 mH
Mechanical Q (Qms): 2.24
Electromagnetic Q (Qes): 2.93
Total Q (Qts): 1.27
