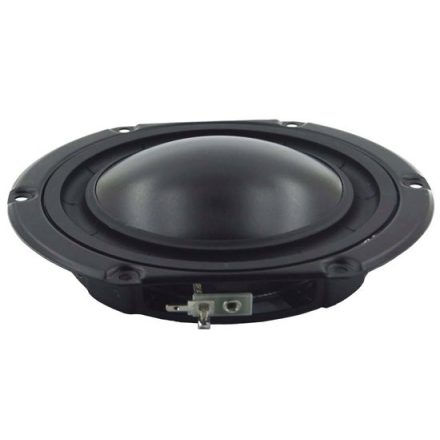

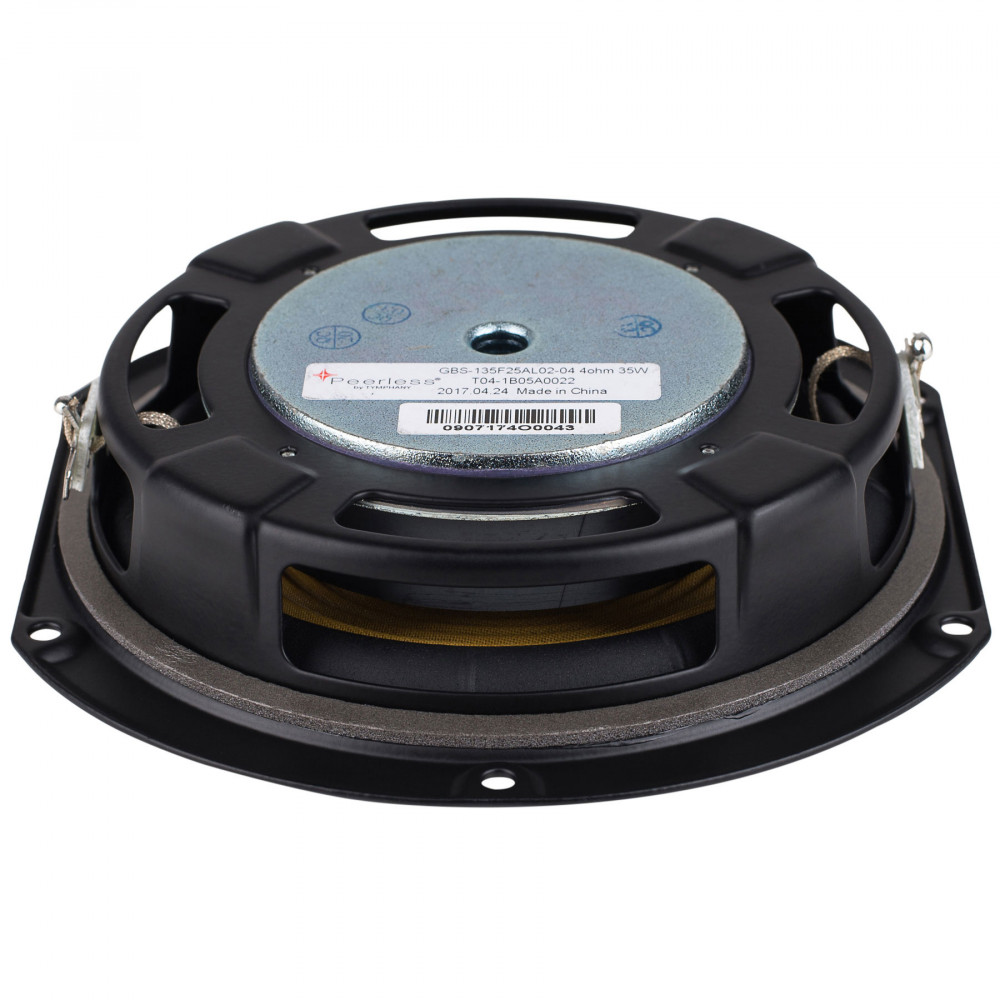

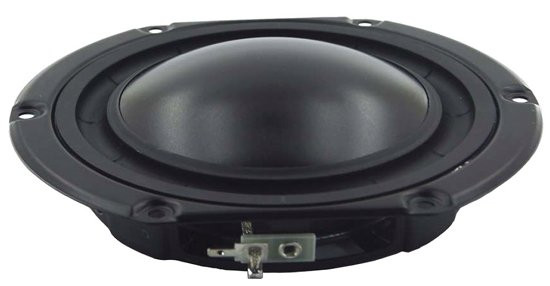

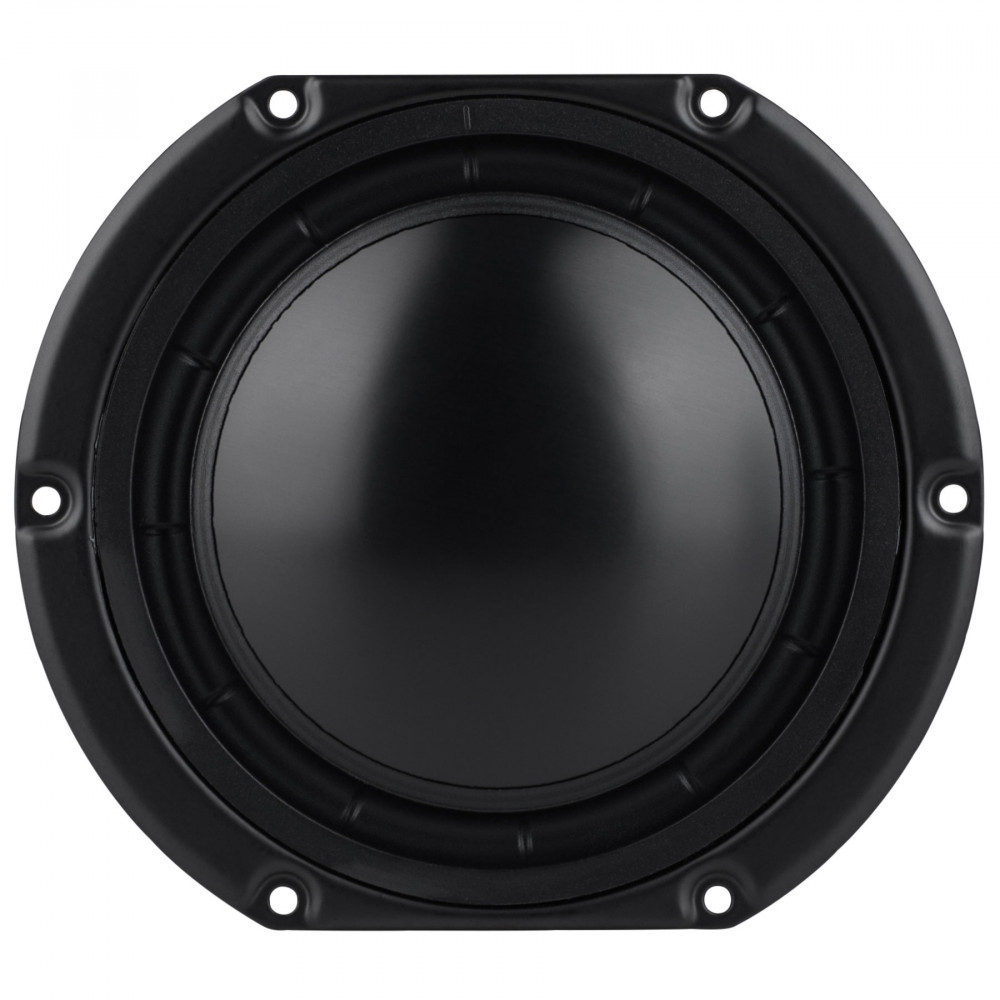

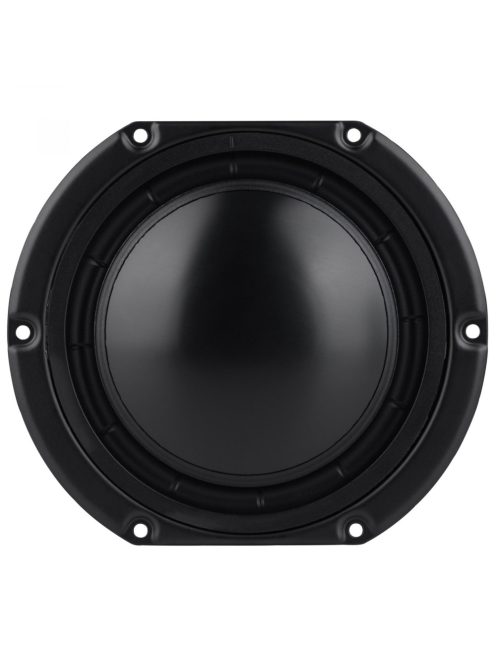

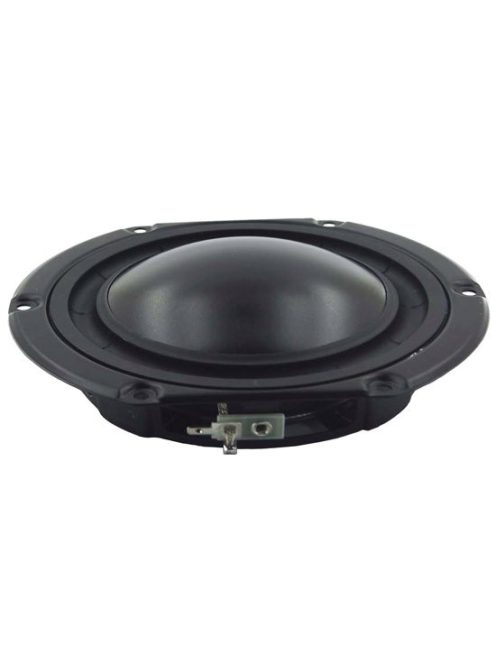

GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer

Name: GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
Brand: PeerlessbyTymphany
SKU: PEE-GBS-135F25AL02-04
Price: 45.72 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Out of stock - orderable

36.00 € excl. VAT

Details

Woofer Type: Subwoofer

Nominal Diameter: 5-1/4"

Power Handling (RMS): 35 Watts

Power Handling (max): 70 Watts

Impedance (Z): 4 ohms

Sensitivity: 88.45 dB 1W/1m

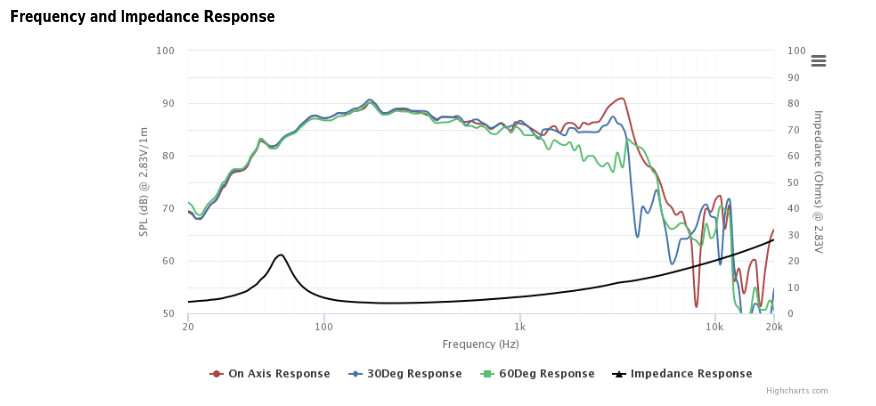

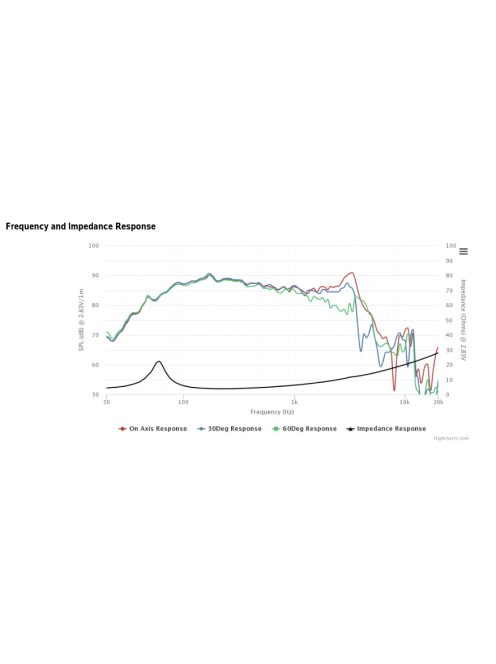

Frequency Response: 55 to 3,500 Hz

Voice Coil Diameter: 1"

DC Resistance (Re): 3.28 ohms

Voice Coil Inductance (Le): 0.21 mH

Resonant Frequency (Fs): 63 Hz

Mechanical Q (Qms): 4.12

Electromagnetic Q (Qes): 0.66

Total Q (Qts): 0.57

Diaphragm Mass Inc. Airload (Mms): 12.3g

Surface Area of Cone (Sd): 85.22 cm²

BL Product (BL): 4.92 Tm

Compliance Equivalent Volume (Vas): 0.189 ft.³

Maximum Linear Excursion (Xmax): 3.3 mm

Cone / Diaphragm Material: Aluminum

Surround Material: Rubber

Basket / Frame Material: Steel

Magnet Material: Ferrite

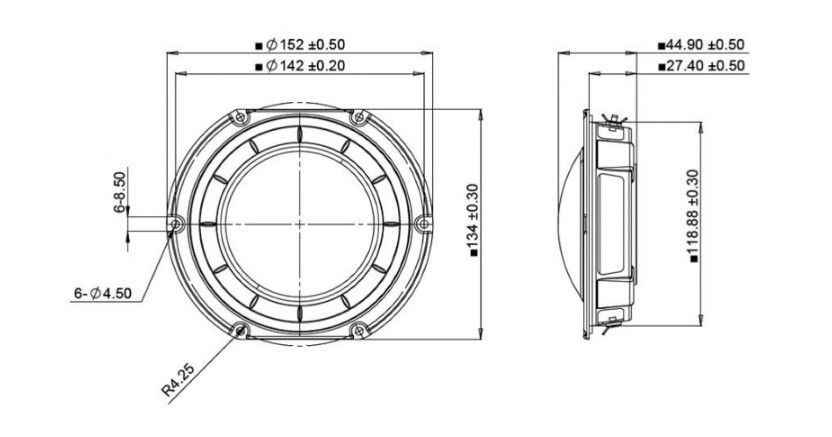

Overall Outside Diameter: 6" across flats: 5,25”

Overall Depth: 1.07"

Baffle Cutout Diameter: 4.68"

# Mounting Holes: 6

Info

Article No.

PEE-GBS-135F25AL02-04
