Tweeter Type: Soft Dome
Tweeter Series: OX Series

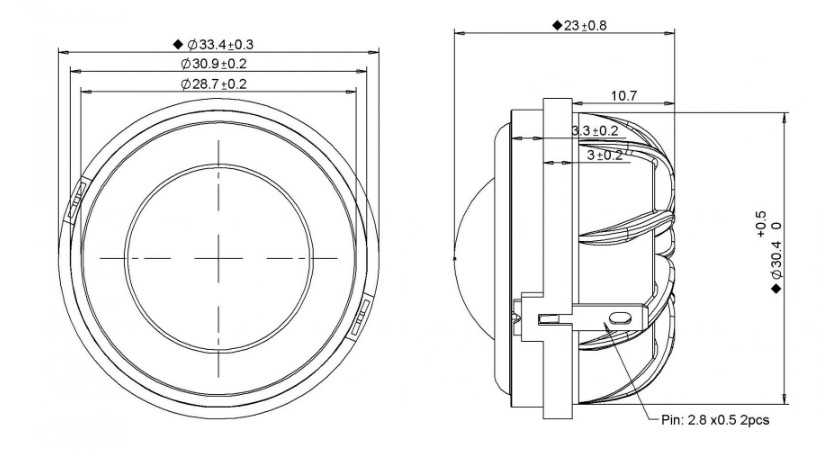

Cone / Dome Diameter: 3/4"
Power Handling (RMS): 20 Watts
Impedance (Z): 4 ohms
Sensitivity: 90 dB 1W/1m

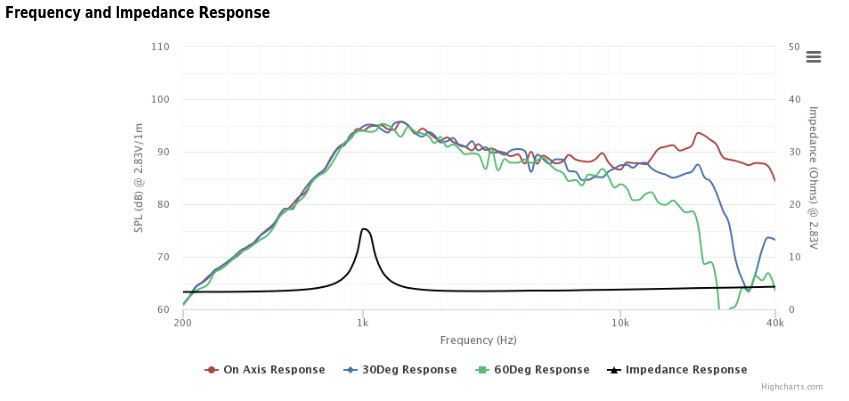

Frequency Response: 2200 to 28,000 Hz
Resonant Frequency (Fs): 1,060 Hz
DC Resistance (Re): 3.20 ohms
Voice Coil Inductance (Le): 0.01 mH
Mechanical Q (Qms): 7.72
Electromagnetic Q (Qes): 1.70
Total Q (Qts): 1.39
