Woofer Type: Woofer
Nominal Diameter: 2"
Power Handling (RMS): 7 Watts
Power Handling (max): 14 Watts
Impedance (Z): 4 ohms
Sensitivity: 82.2 dB 1W/1m

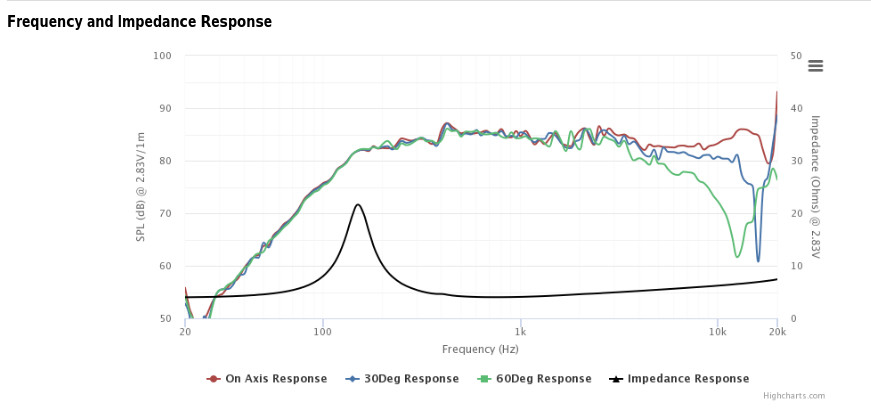

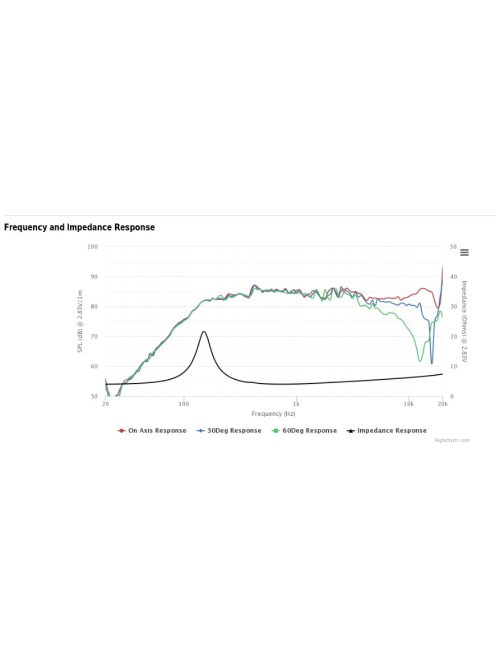

Frequency Response: 150 to 20,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 3.8 ohms
Voice Coil Inductance (Le): 0.03 mH
Resonant Frequency (Fs): 147.5 Hz
Mechanical Q (Qms): 3.06
Electromagnetic Q (Qes): 0.7
Total Q (Qts): 0.57
Diaphragm Mass Inc. Airload (Mms): 1.5g
Mechanical Compliance of Suspension (Cms): 0.76 mm/N
Surface Area of Cone (Sd): 13 cm²
BL Product (BL): 2.8 Tm
Compliance Equivalent Volume (Vas): 0.01 ft.³
Maximum Linear Excursion (Xmax): 1.8 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium

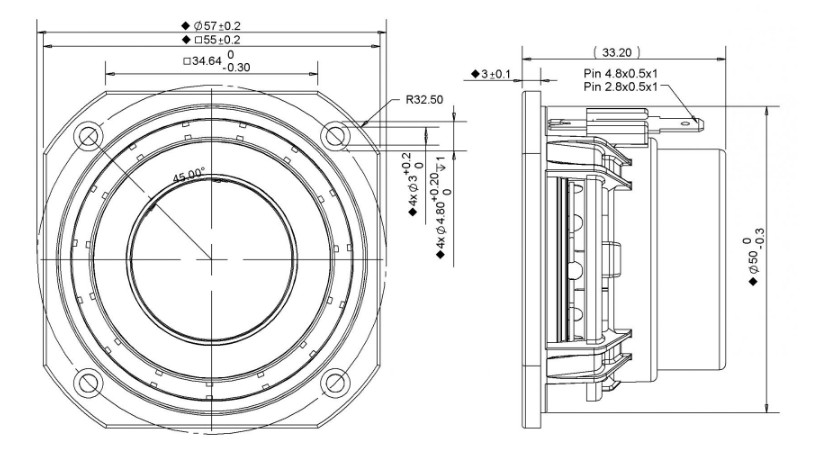

Overall Outside Diameter: 2.17"
Overall Depth: 1.31"
Baffle Cutout Diameter: 1.97"
# Mounting Holes: 4
