Woofer Type: Full-Range
Nominal Diameter: 2"
Power Handling (RMS): 7 Watts
Power Handling (max): 14 Watts
Impedance (Z): 4 ohms
Sensitivity: 82.2 dB 2.83V/1m
Frequency Response: 150 to 20,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 3.6 ohms
Voice Coil Inductance (Le): 0.03 mH
Resonant Frequency (Fs): 176 Hz
Mechanical Q (Qms): 5.6
Electromagnetic Q (Qes): 0.81
Total Q (Qts): 0.71
Diaphragm Mass Inc. Airload (Mms): 1.6g
Mechanical Compliance of Suspension (Cms): 0.5 mm/N
Surface Area of Cone (Sd): 15.2 cm²
BL Product (BL): 2.83 Tm
Compliance Equivalent Volume (Vas): 0.01 ft.³
Maximum Linear Excursion (Xmax): 1.65 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium

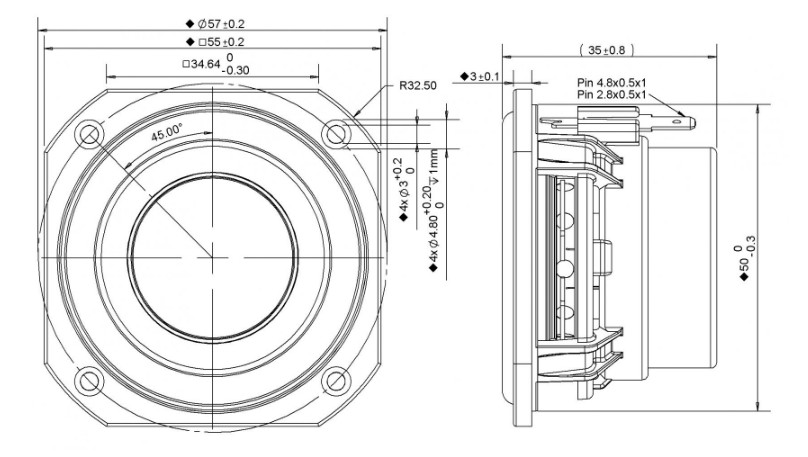

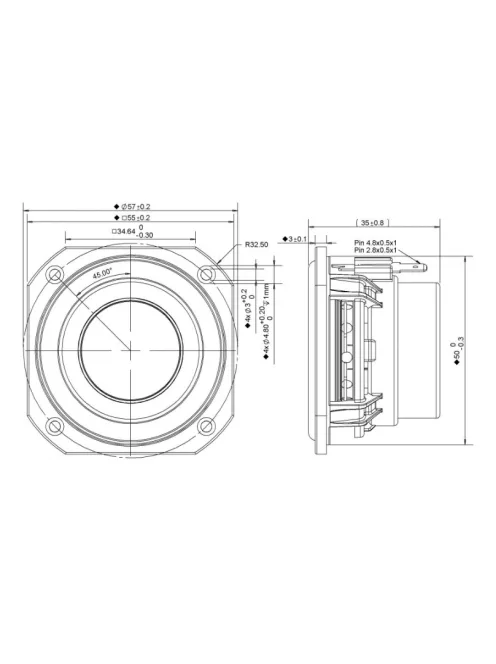

Overall Outside Diameter: 2.17"
Overall Depth: 1.38"
Baffle Cutout Diameter: 1.97"
# Mounting Holes: 4
