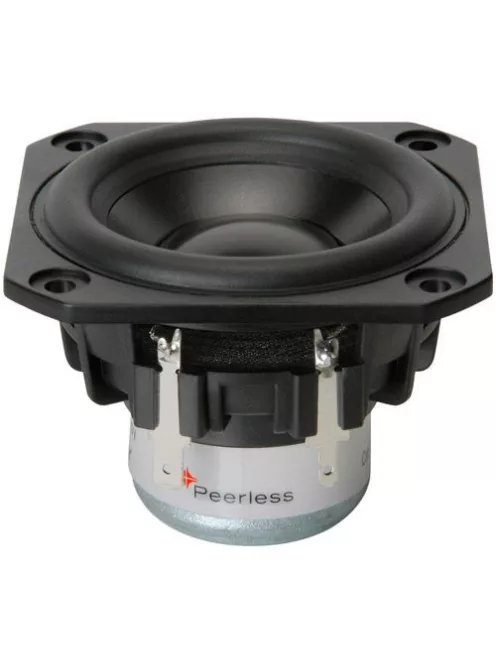

Woofer Type: Full-Range
Nominal Diameter: 2-1/2"
Power Handling (RMS): 25 Watts
Impedance (Z): 8 ohms
Sensitivity: 82.2 dB 2.83V/1m

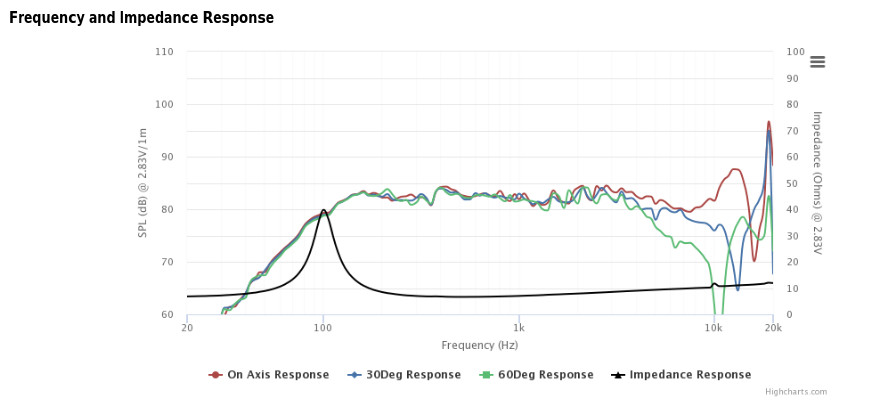

Frequency Response: 100 to 10,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le): 0.05 mH
Resonant Frequency (Fs): 111 Hz
Mechanical Q (Qms): 5.4
Electromagnetic Q (Qes): 0.83
Total Q (Qts): 0.72
Diaphragm Mass Inc. Airload (Mms): 2.03g
Mechanical Compliance of Suspension (Cms): 1.02 mm/N
Surface Area of Cone (Sd): 22.2 cm²
BL Product (BL): 3.27 Tm
Compliance Equivalent Volume (Vas): 0.03 ft.³
Maximum Linear Excursion (Xmax): 2.05 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium

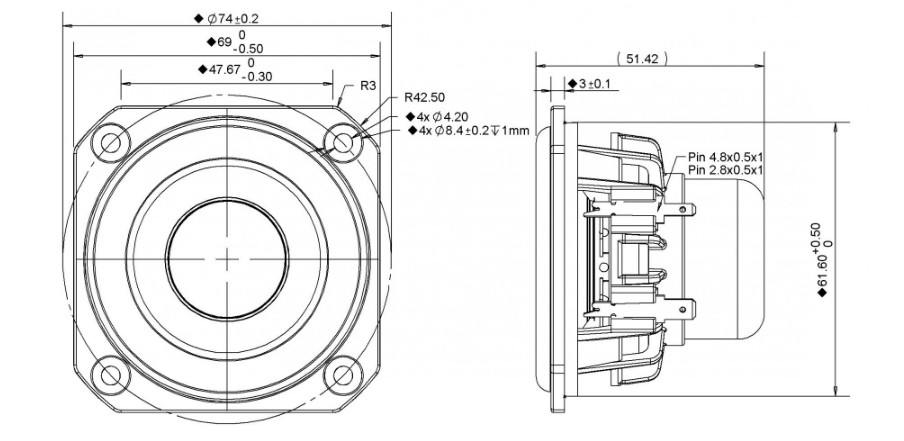

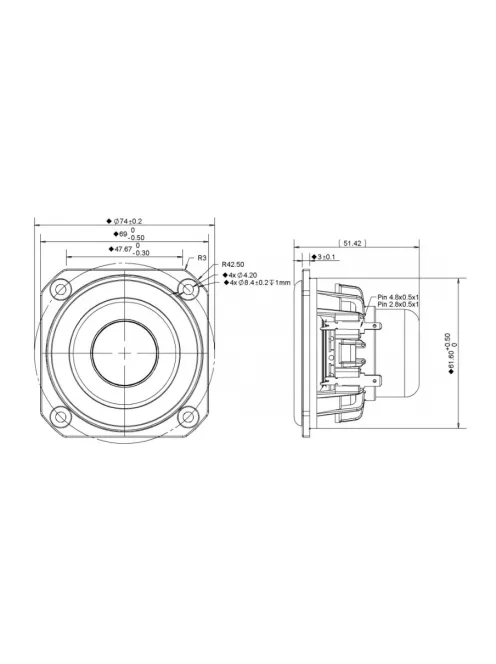

Overall Outside Diameter: 2.72"
Overall Depth: 2.02"
Baffle Cutout Diameter: 2.43"
# Mounting Holes: 4
