Woofer Type: Full Range
Nominal Diameter: 3"
Power Handling (RMS): 12 Watts
Power Handling (max): 24 Watts
Impedance (Z): 8 ohms
Sensitivity: 83.6 dB 2.83V/1m

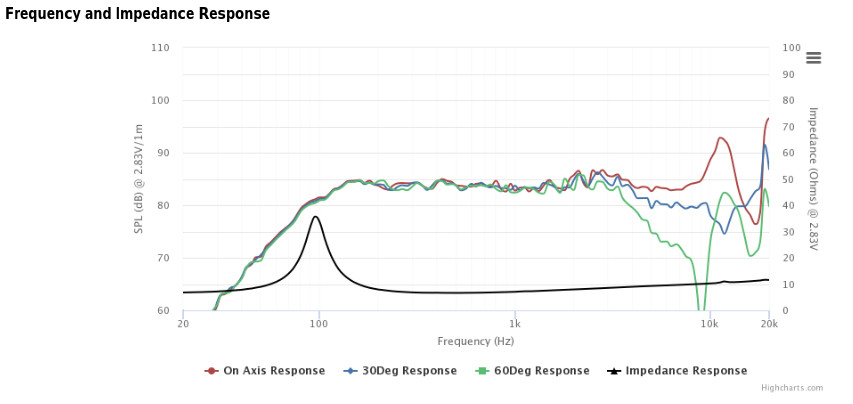

Frequency Response: 100 to 15,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le): 0.05 mH
Resonant Frequency (Fs): 102 Hz
Mechanical Q (Qms): 5.1
Electromagnetic Q (Qes): 0.89
Total Q (Qts): 0.76
Diaphragm Mass Inc. Airload (Mms): 2.56g
Mechanical Compliance of Suspension (Cms): 0.9 mm/N
Surface Area of Cone (Sd): 27.3 cm²
BL Product (BL): 3.43 Tm
Compliance Equivalent Volume (Vas): 0.03 ft.³
Maximum Linear Excursion (Xmax): 2.05 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium

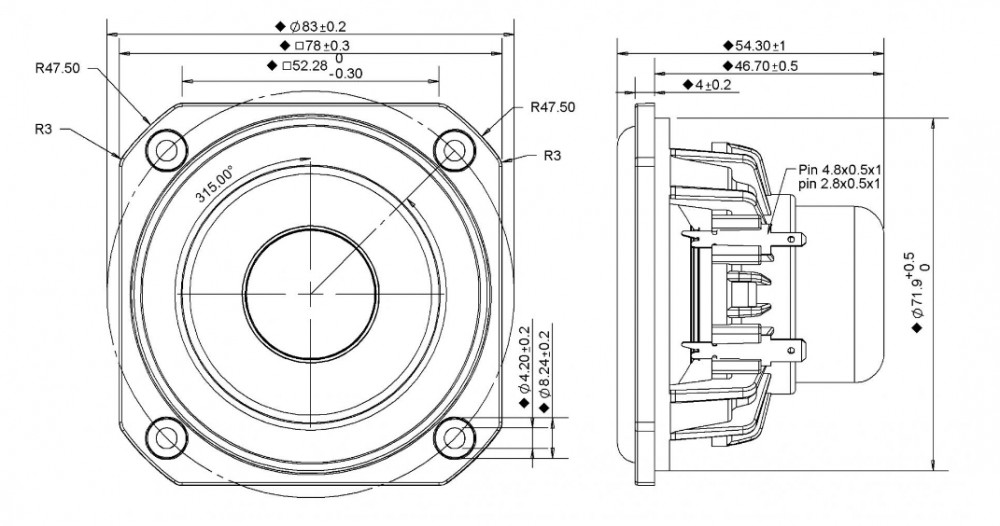

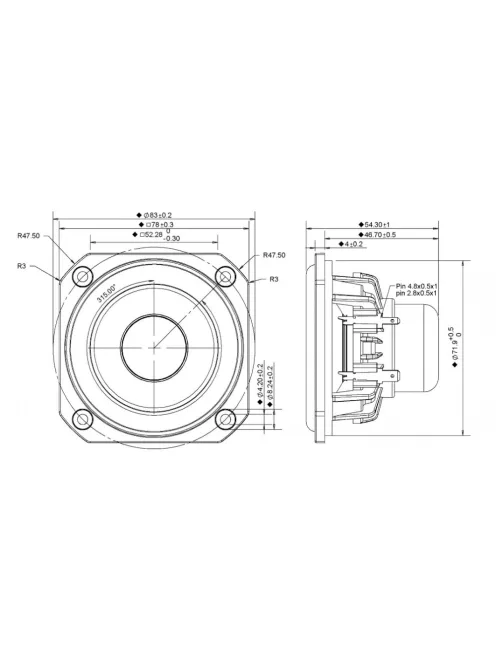

Overall Outside Diameter: 3.07"
Overall Depth: 2.138"
Baffle Cutout Diameter: 2.83"
# Mounting Holes: 4
