Woofer Type: Midwoofer
Nominal Diameter: 6-1/2”
Power Handling (RMS): 60 Watts
Power Handling (max): 110 Watts
Impedance (Z): 8 Ohms
Sensitivity: 88.2 dB 2.83V/1m

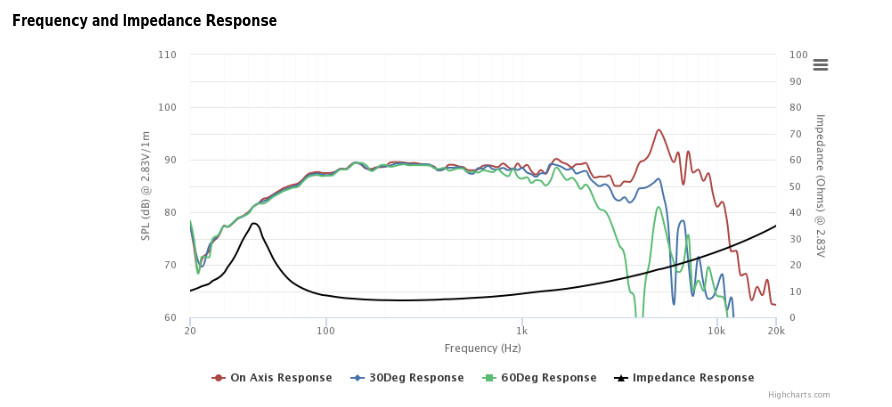

Frequency Response: 40 to 4,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 6 ohms
Voice Coil Inductance (Le): 0.38 mH
Resonant Frequency (Fs): 45 Hz
Mechanical Q (Qms): 2.74
Electromagnetic Q (Qes): 0.55
Total Q (Qts): 0.46
Diaphragm Mass Inc. Airload (Mms): 11.5g
Mechanical Compliance of Suspension (Cms): 1.1 mm/N
Surface Area of Cone (Sd): 141 cm²
BL Product (BL): 5.98 Tm
Compliance Equivalent Volume (Vas): 1.09 ft.³
Maximum Linear Excursion (Xmax): 3.46 mm
Cone / Diaphragm Material: Coated Paper
Surround Material: Rubber
Basket / Frame Material: Steel
Magnet Material: Ferrite

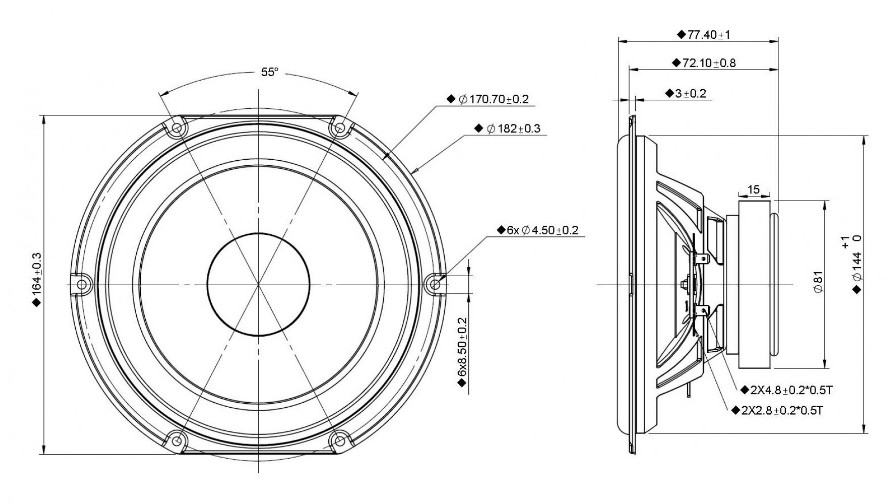

Overall Outside Diameter: 7.17"
Overall Depth: 2.72"
Baffle Cutout Diameter: 5.71"
# Mounting Holes: 6
