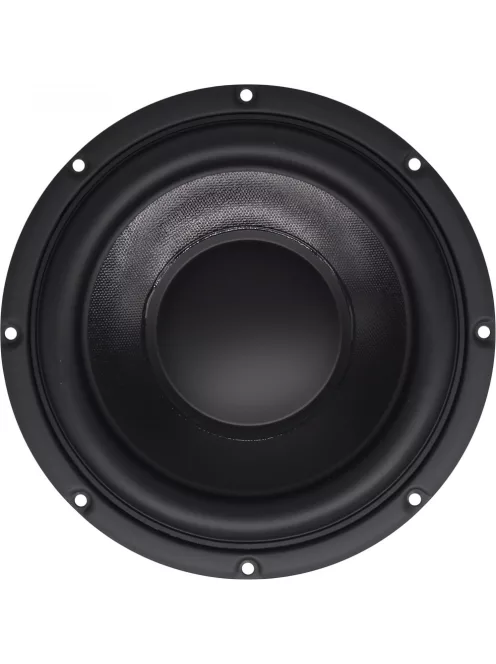

Woofer Type: Subwoofer
Nominal Diameter: 8"
Power Handling (RMS): 110 Watts
Power Handling (max): 220 Watts
Impedance (Z): 8 ohms
Sensitivity: 87.2 dB 2.83V/1m

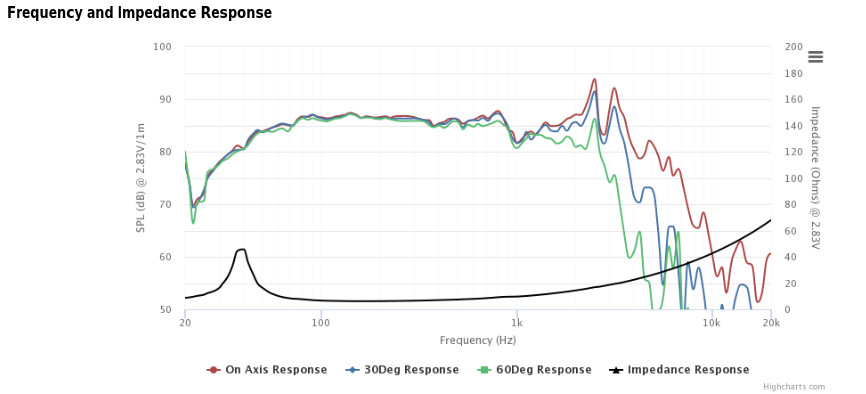

Frequency Response: 36.5 to 2,000Hz
Voice Coil Diameter: 1.5"
DC Resistance (Re): 5.5 ohms
Voice Coil Inductance (Le): 0.78 mH
Resonant Frequency (Fs): 42 Hz
Mechanical Q (Qms): 5.7
Electromagnetic Q (Qes): 0.75
Total Q (Qts): 0.66
Diaphragm Mass Inc. Airload (Mms): 34.8g
Mechanical Compliance of Suspension (Cms): 0.41 mm/N
Surface Area of Cone (Sd): 213.8 cm²
BL Product (BL): 8.26 Tm
Compliance Equivalent Volume (Vas): 0.93ft.³
Maximum Linear Excursion (Xmax): 8.41 mm
Cone / Diaphragm Material: Coated Paper
Surround Material: Rubber
Basket / Frame Material: Steel
Magnet Material: Ferrite

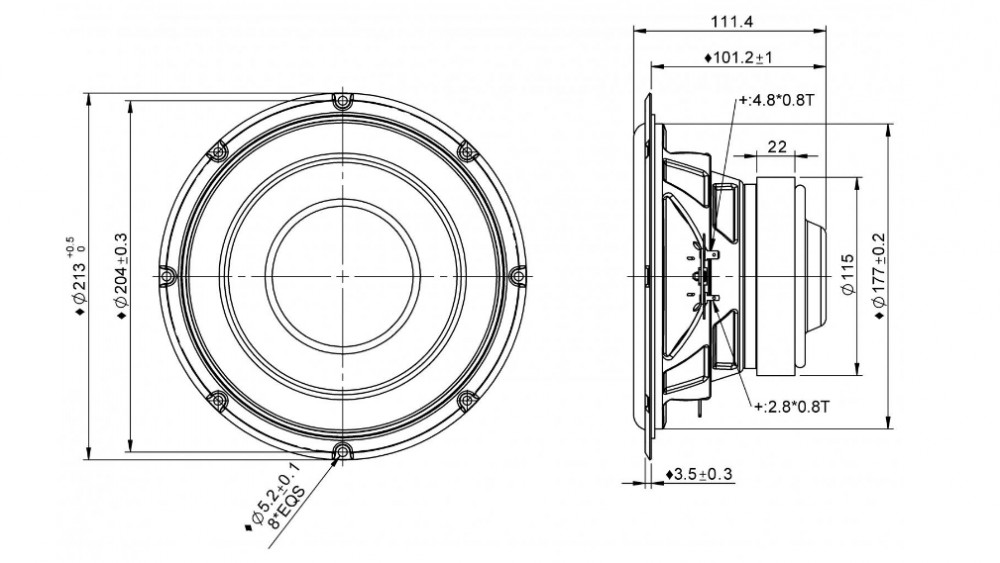

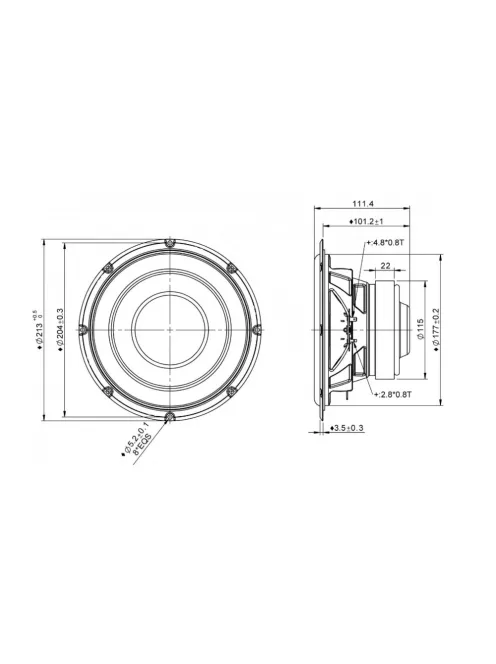

Overall Outside Diameter: 8.44"
Overall Depth: 2.09"
Baffle Cutout Diameter: 6.79"
# Mounting Holes: 8
