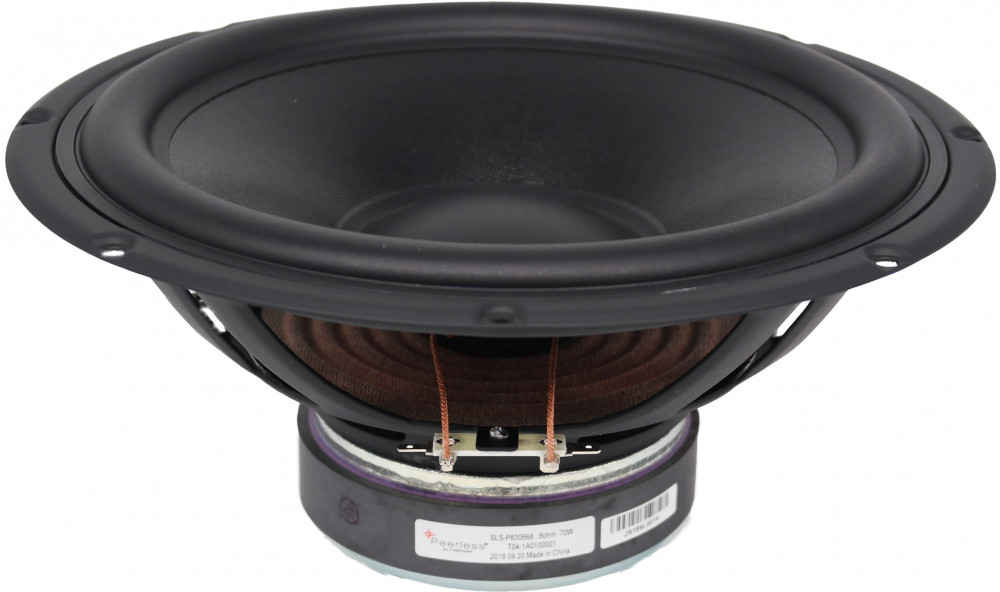

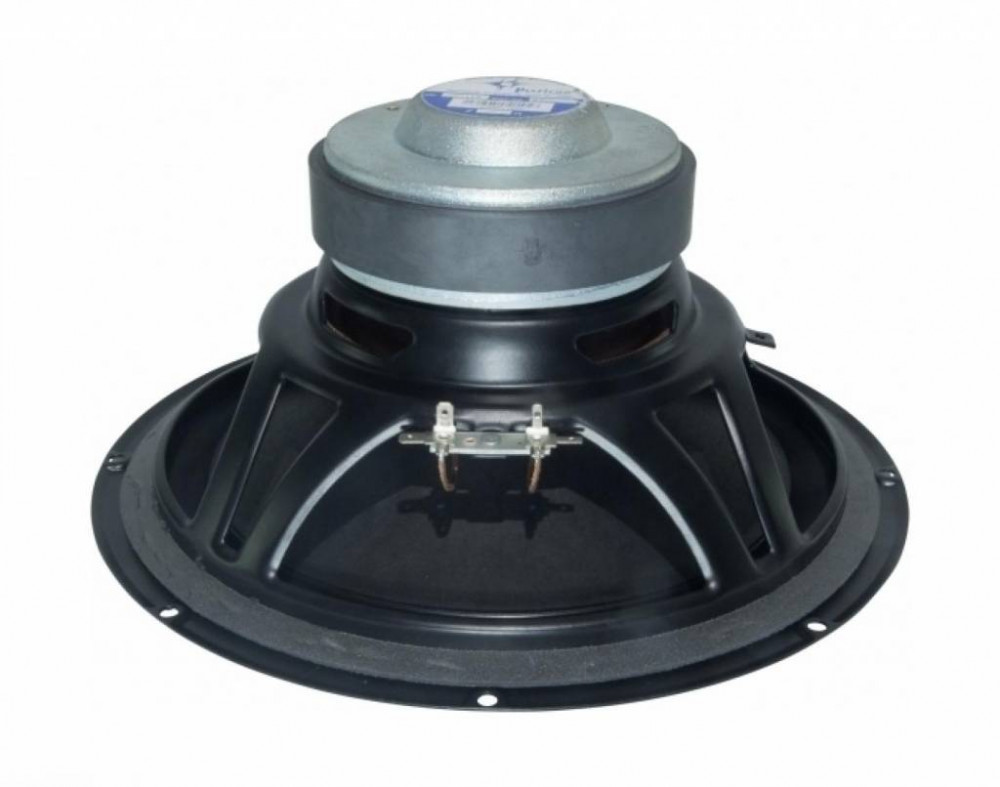

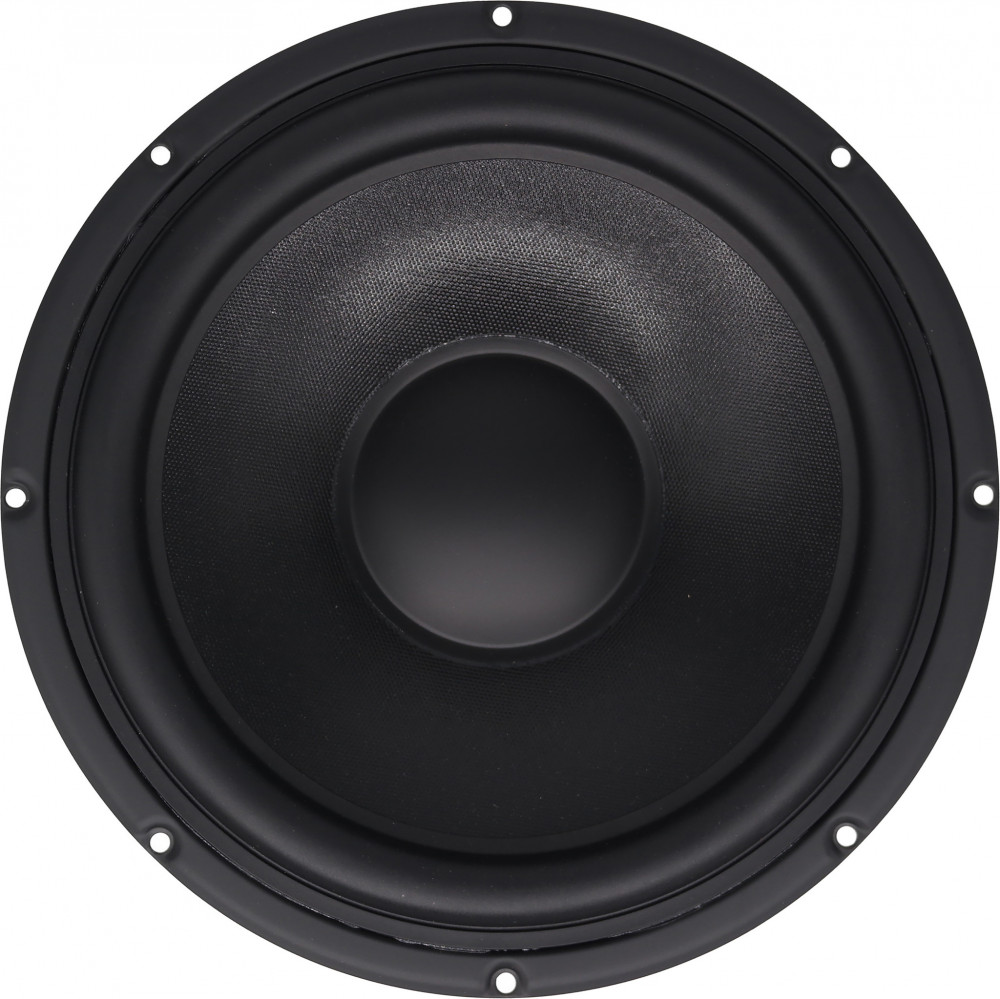

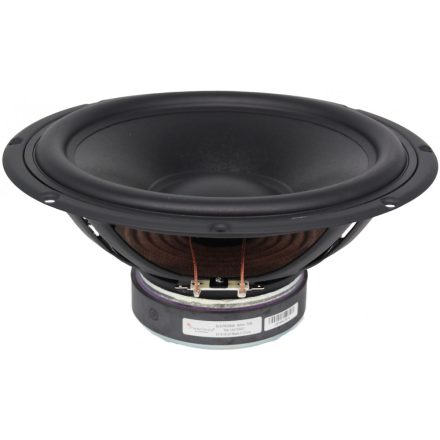

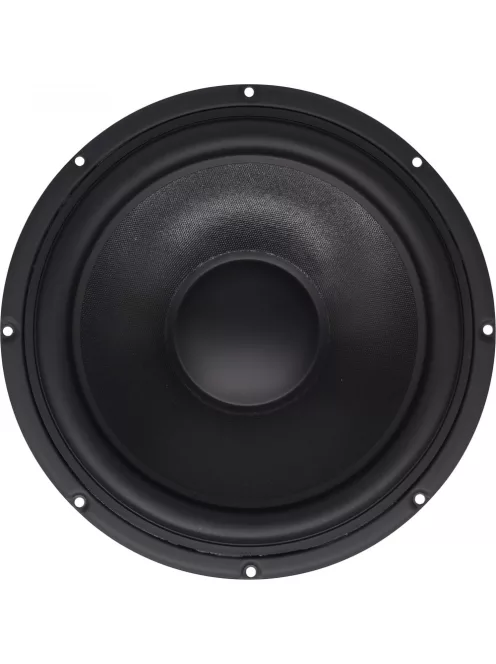

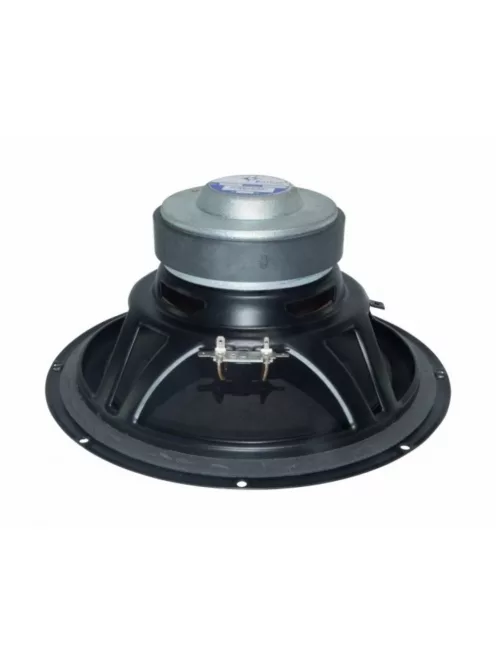

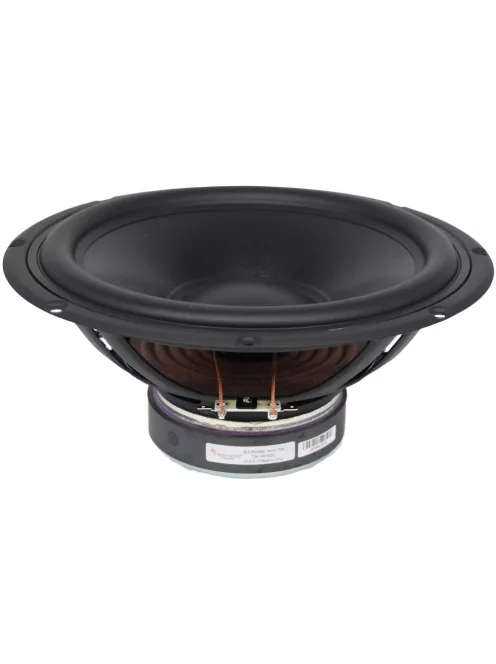

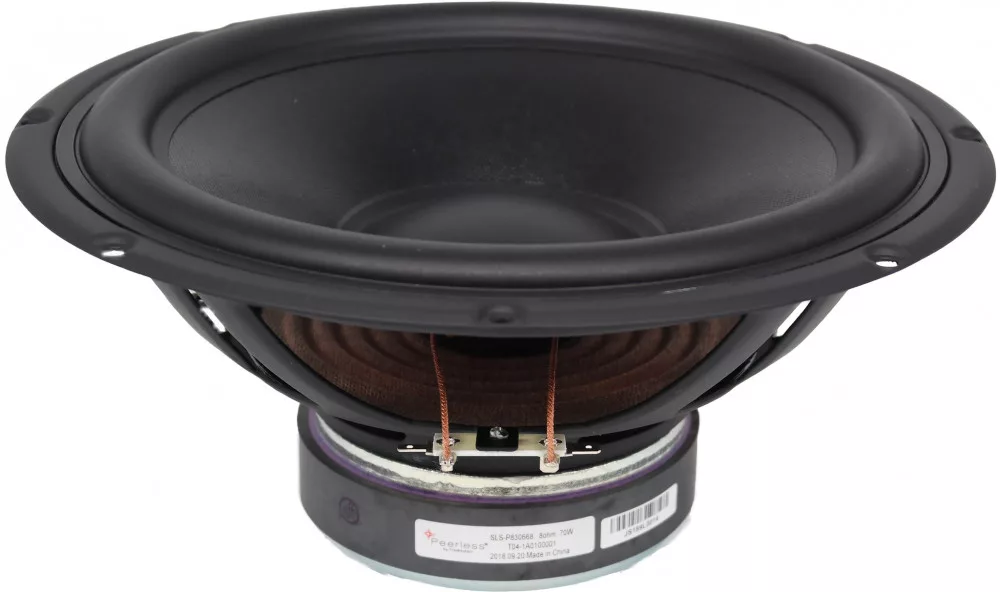

SLS-P830668 10" Paper Cone SLS Subwoofer

66.99 € excl. VAT

SLS-P830668 10" Paper Cone SLS Subwoofer

Name: SLS-P830668 10" Paper Cone SLS Subwoofer
Brand: PeerlessbyTymphany
SKU: PEE-SLS-P830668
Price: 85.08 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Out of stock - orderable

66.99 € excl. VAT

Details

Woofer Type: Subwoofer

Nominal Diameter: 10"

Power Handling (RMS): 70 Watts

Power Handling (max): 140 Watts

Impedance (Z): 8 ohms

Sensitivity: 87.9 dB 2.83V/1m

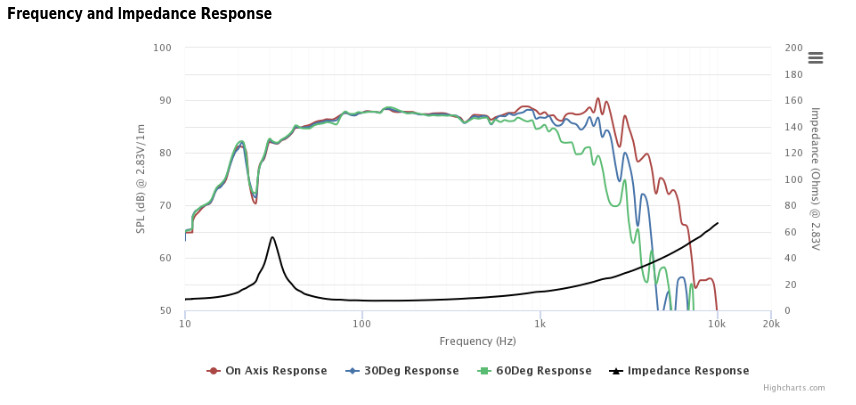

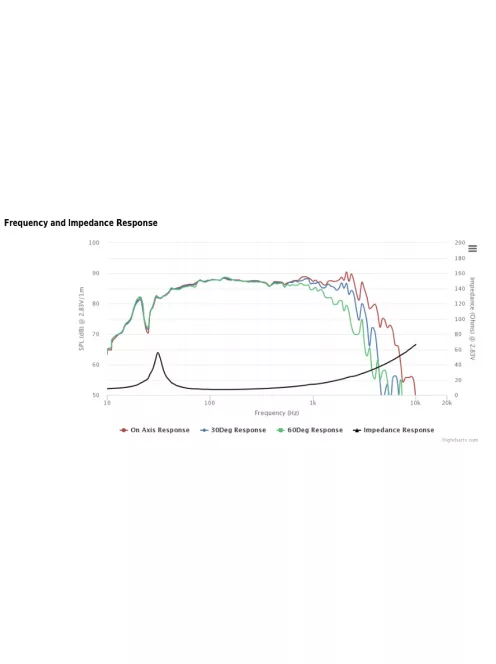

Frequency Response: 30 to 2,000Hz

Voice Coil Diameter: 1.5"

DC Resistance (Re): 5.6 ohms

Voice Coil Inductance (Le): 1.37 mH

Resonant Frequency (Fs): 32 Hz

Mechanical Q (Qms): 7.1

Electromagnetic Q (Qes): 0.59

Total Q (Qts): 0.55

Diaphragm Mass Inc. Airload (Mms): 56.28g

Mechanical Compliance of Suspension (Cms): 0.43 mm/N

Surface Area of Cone (Sd): 346.4 cm²

BL Product (BL): 10.42 Tm

Compliance Equivalent Volume (Vas): 2.57 ft.³

Maximum Linear Excursion (Xmax): 8.3 mm

Cone / Diaphragm Material: Coated Paper

Surround Material: Rubber

Basket / Frame Material: Steel

Magnet Material: Ferrite

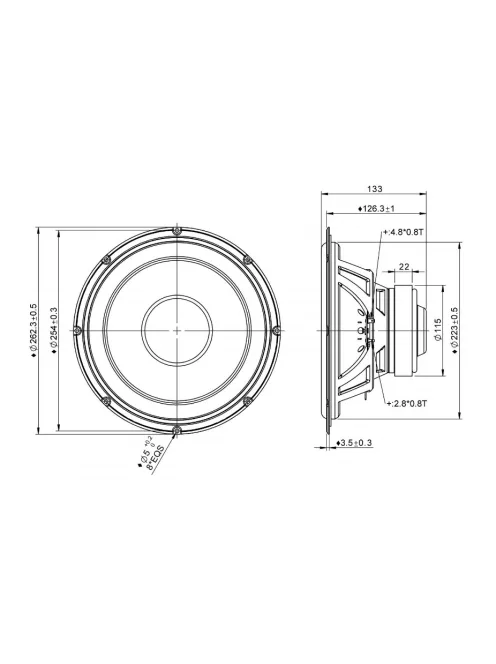

Overall Outside Diameter: 10"

Overall Depth: 5.24"

Baffle Cutout Diameter: 8.9"

# Mounting Holes: 8
