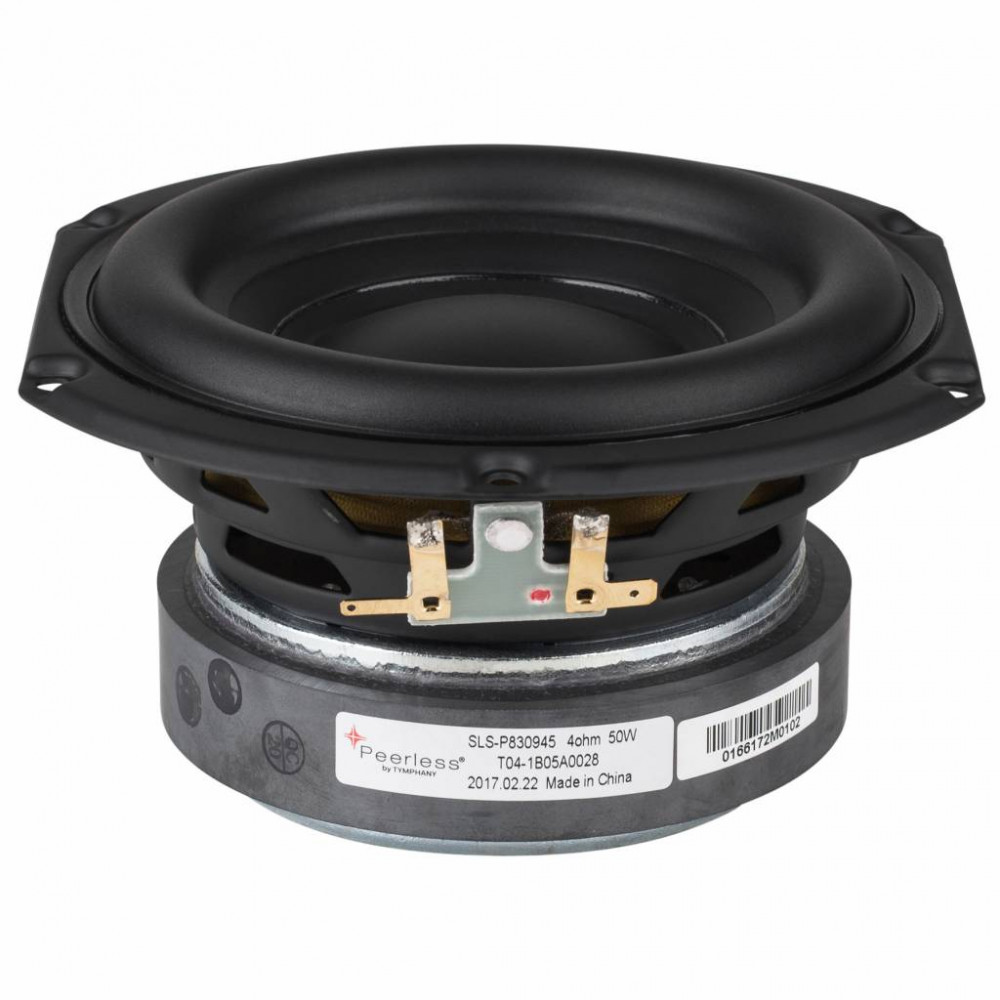

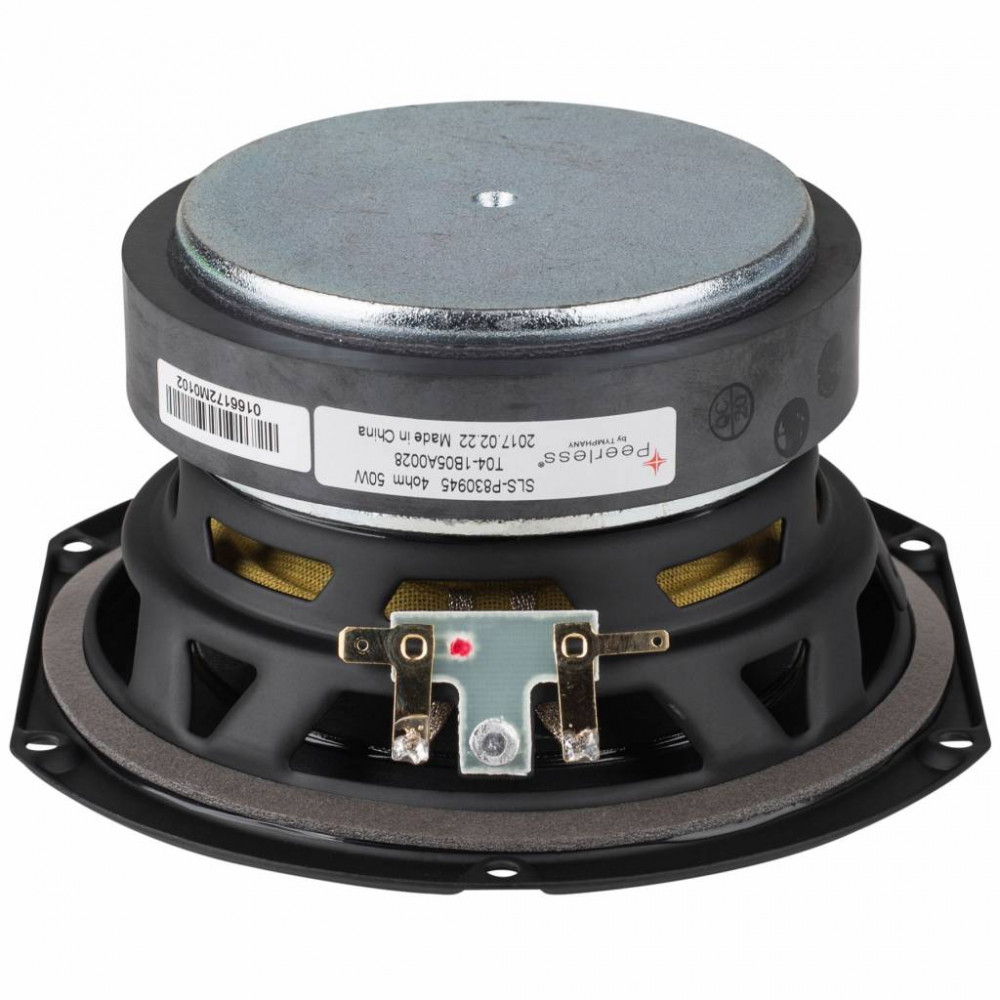

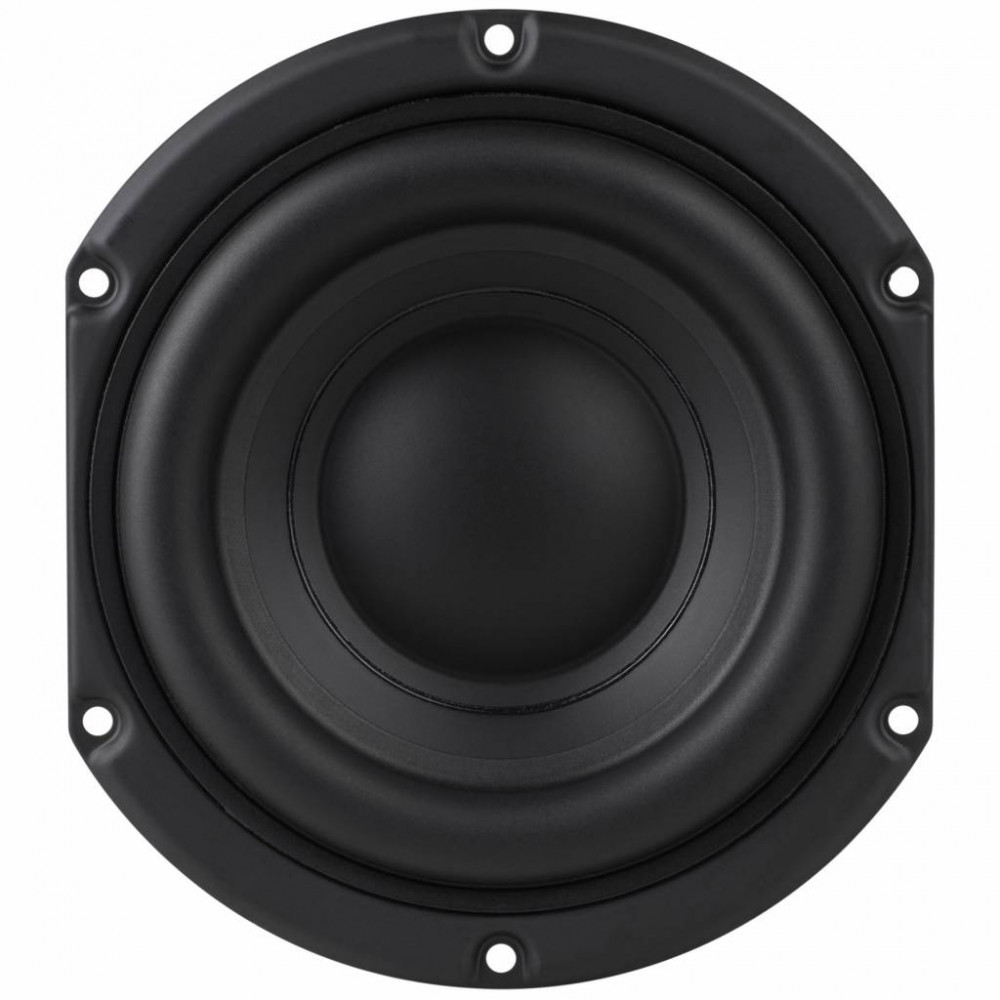

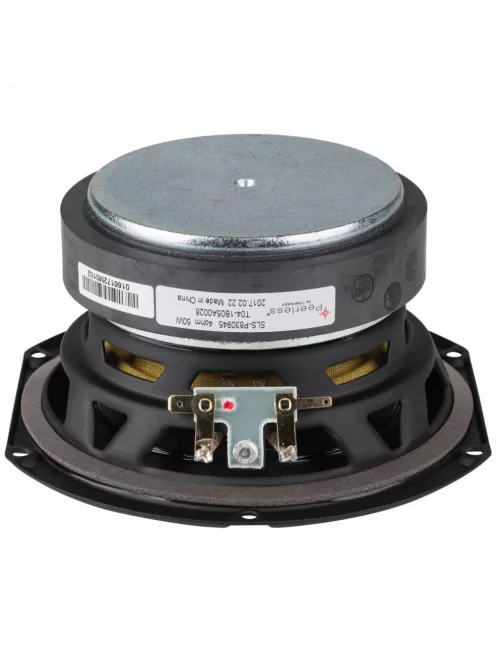

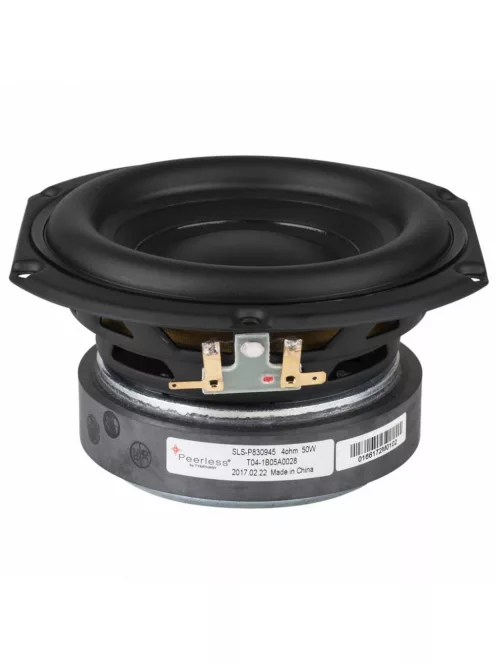

SLS-P830945 5-1/4" Paper Cone Woofer

46.05 € excl. VAT

SLS-P830945 5-1/4" Paper Cone Woofer

Name: SLS-P830945 5-1/4" Paper Cone Woofer
Brand: PeerlessbyTymphany
SKU: PEE-SLS-P830945
Price: 58.48 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Out of stock - orderable

46.05 € excl. VAT

Details

Woofer Type: Woofer

Nominal Diameter: 5-1/2"

Power Handling (RMS): 50 Watts

Power Handling (max): 100 Watts

Impedance (Z): 4 ohms

Sensitivity: 88.36 dB 2.83V/1m

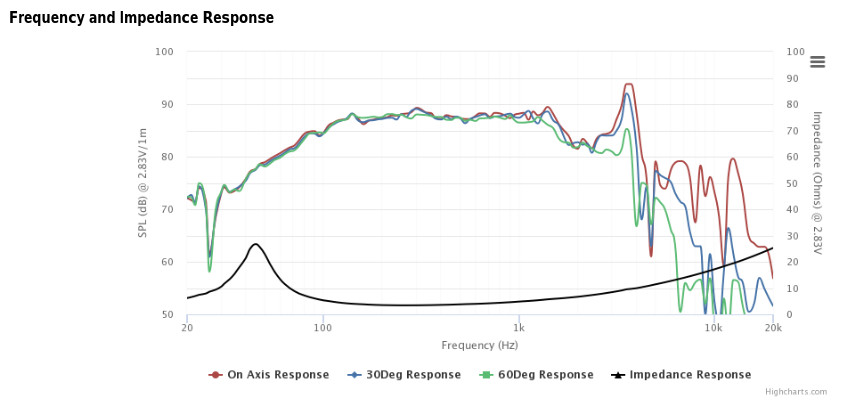

Frequency Response: 40 to 1,500Hz

Voice Coil Diameter: 1.3"

DC Resistance (Re): 2.71 ohms

Voice Coil Inductance (Le): 0.20 mH

Resonant Frequency (Fs): 51.49 Hz

Mechanical Q (Qms): 3.95

Electromagnetic Q (Qes): 0.40

Total Q (Qts): 0.36

Diaphragm Mass Inc. Airload (Mms): 15.9g

Mechanical Compliance of Suspension (Cms): 0.601 mm/N

Surface Area of Cone (Sd): 83.3 cm²

BL Product (BL): 5.9 Tm

Compliance Equivalent Volume (Vas): 0.21 ft.³

Maximum Linear Excursion (Xmax): 5 mm

Cone / Diaphragm Material: Paper

Surround Material: Foam

Basket / Frame Material: Aluminum

Magnet Material: Ferrite

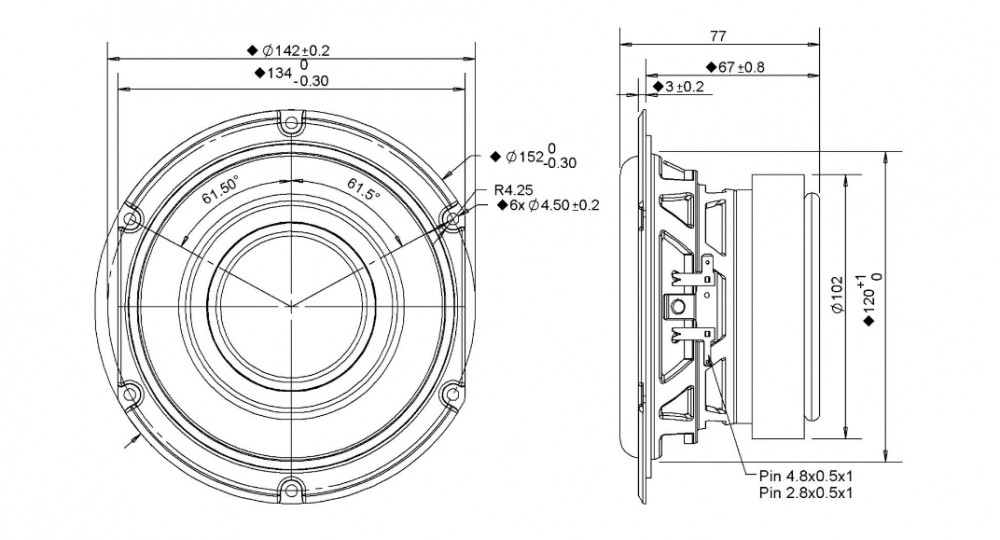

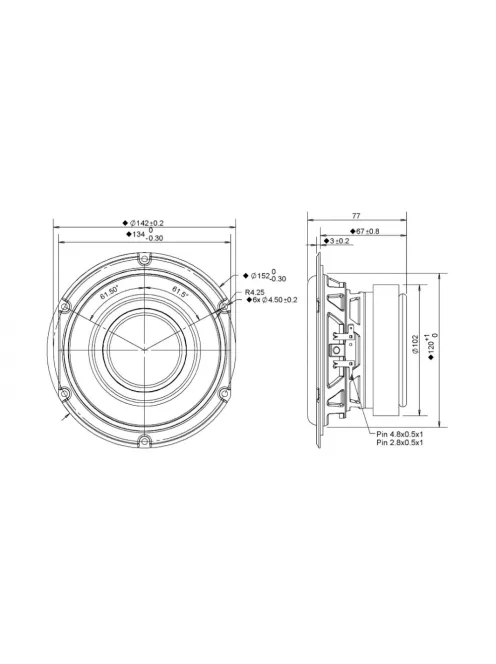

Overall Outside Diameter: 5.6"

Overall Depth: 2.64"

Baffle Cutout Diameter: 4.72"

# Mounting Holes: 6
