Woofer Type: Subwoofer
Nominal Diameter: 15"
Power Handling (RMS): 3,500 Watts
Power Handling (max): 5,000 Watts
Impedance (Z): 8+8 ohms
Sensitivity: 88.7 dB 2.83V/1m
Frequency Response: 10 to 500 Hz
Voice Coil Diameter: 7.4"
DC Resistance (Re): 3.2 ohms
Voice Coil Inductance (Le): 3.31 mH
Resonant Frequency (Fs): 25.3 Hz
Mechanical Q (Qms): 11.39
Electromagnetic Q (Qes): 0.5
Total Q (Qts): 0.48
Diaphragm Mass Inc. Airload (Mms): 576.8g
Mechanical Compliance of Suspension (Cms): 0.068 mm/N
Surface Area of Cone (Sd): 774.4 cm²
BL Product (BL): 24.18 Tm
Compliance Equivalent Volume (Vas): 2.05 ft.³
Maximum Linear Excursion (Xmax): 10.4 mm
Cone / Diaphragm Material: Paper / Carbon Fiber
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil FormerFiberglass
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite

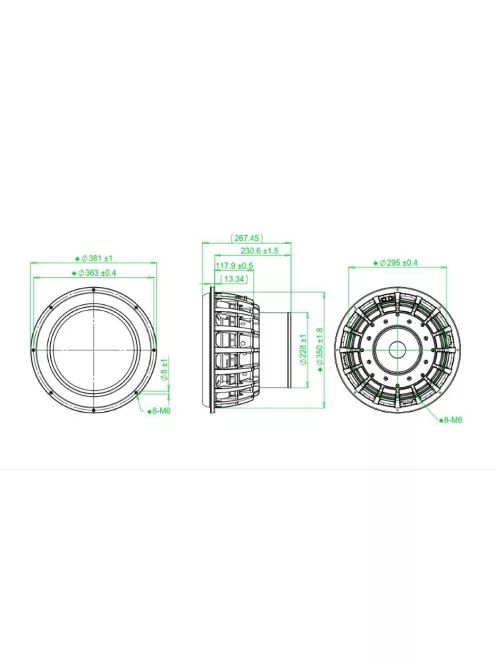

Overall Outside Diameter: 15"
Overall Depth: 9.17"
Baffle Cutout Diameter: 13.7"
# Mounting Holes: 8
