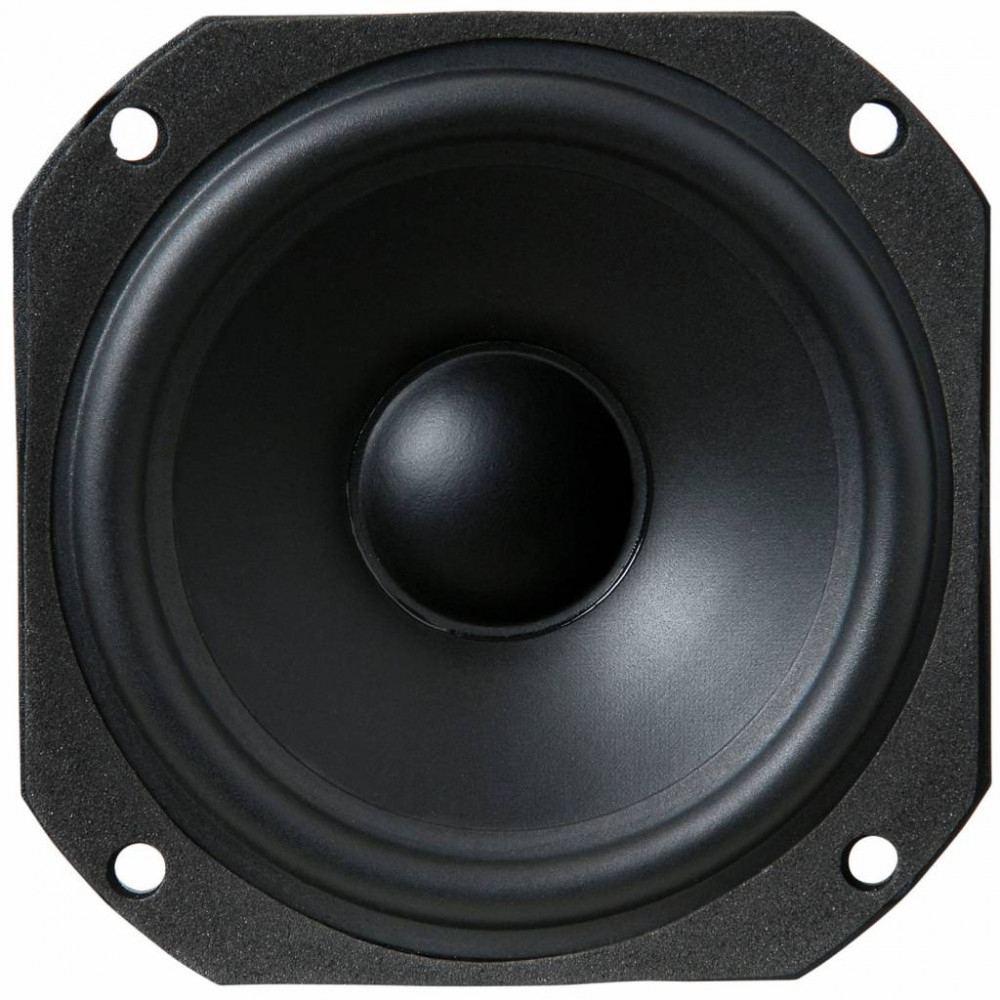

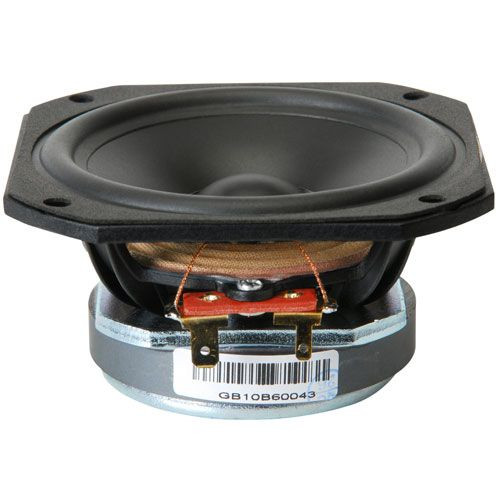

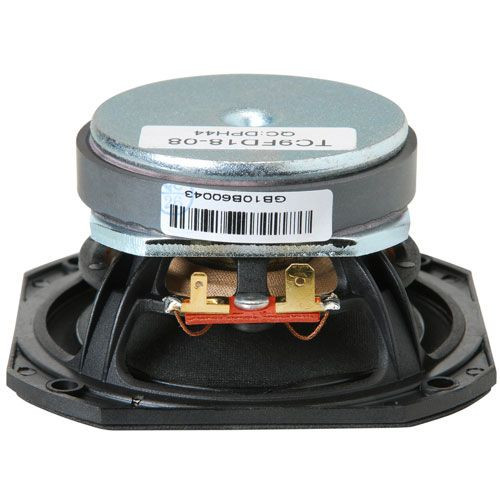

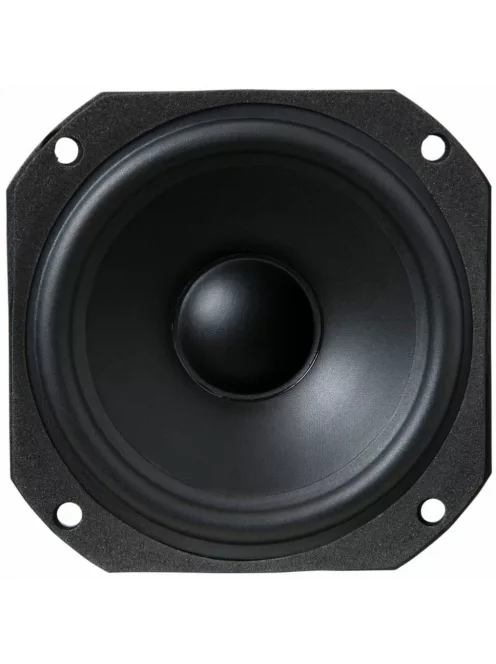

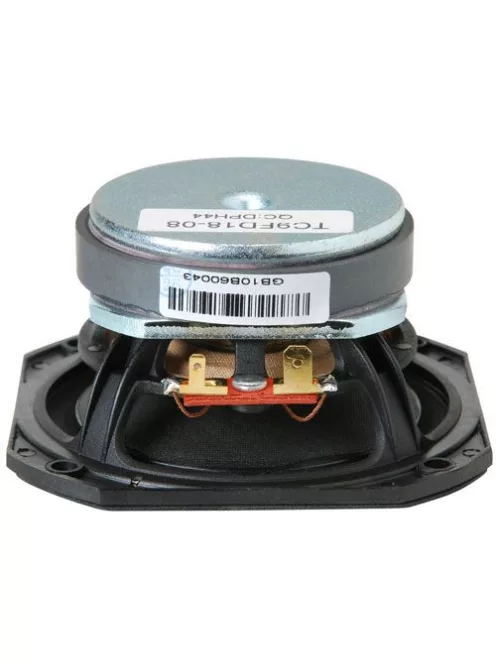

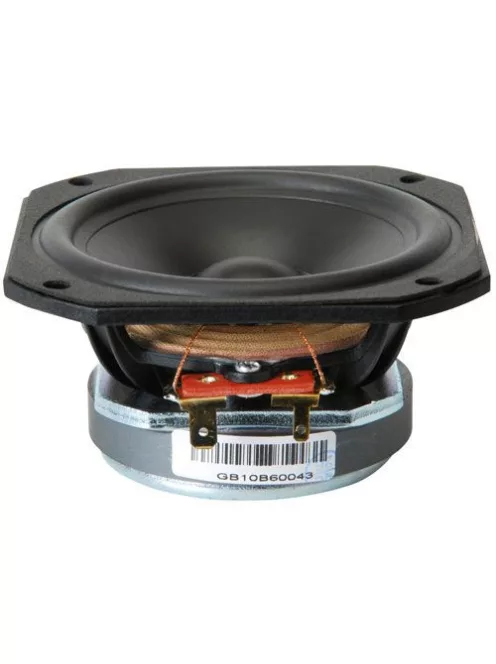

TC9FD18-08 3-1/2" Full Range Paper Cone Woofer

30.54 € excl. VAT

TC9FD18-08 3-1/2" Full Range Paper Cone Woofer

Name: TC9FD18-08 3-1/2" Full Range Paper Cone Woofer
Brand: PeerlessbyTymphany
SKU: PEE-TC9FD18-08
Price: 38.79 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Out of stock - orderable

30.54 € excl. VAT

Details

Woofer Type: Full-range

Nominal Diameter: 3-1/2"

Power Handling (RMS): 30 Watts

Power Handling (max): 60 Watts

Impedance (Z): 8 Ohms

Sensitivity: 83.5 dB 1W/1m

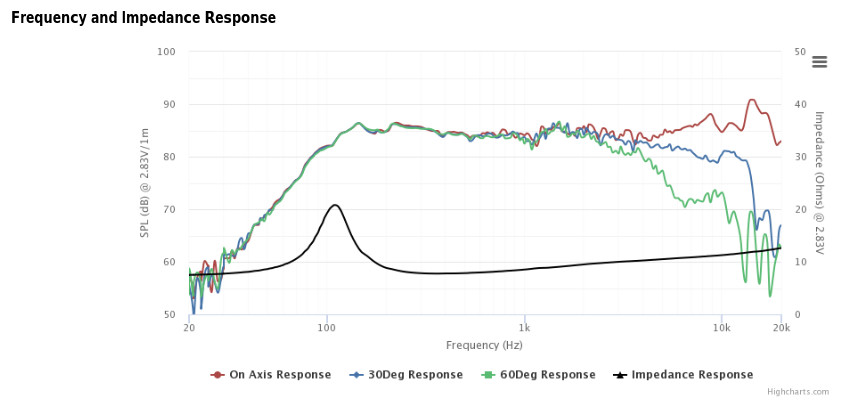

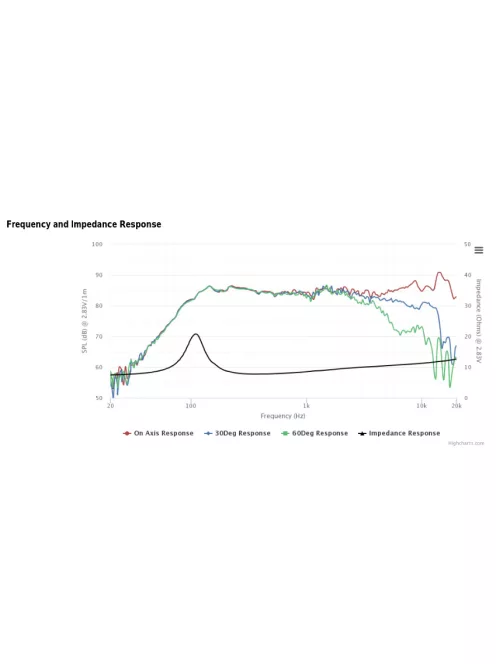

Frequency Response: 100 to 20,000Hz

Voice Coil Diameter: 0.75"

DC Resistance (Re): 6.3 ohms

Voice Coil Inductance (Le): 0.05 mH

Resonant Frequency (Fs): 125 Hz

Mechanical Q (Qms): 2.7

Electromagnetic Q (Qes): 1.33

Total Q (Qts): 0.89

Diaphragm Mass Inc. Airload (Mms): 2.43g

Mechanical Compliance of Suspension (Cms): 0.67 mm/N

Surface Area of Cone (Sd): 36.3 cm²

BL Product (BL): 3.01 Tm

Compliance Equivalent Volume (Vas): 0.04 ft.³

Maximum Linear Excursion (Xmax): 2.55 mm

Cone / Diaphragm Material: Paper

Surround Material: Rubber

Basket / Frame Material: Polymer

Magnet Material: Ferrite

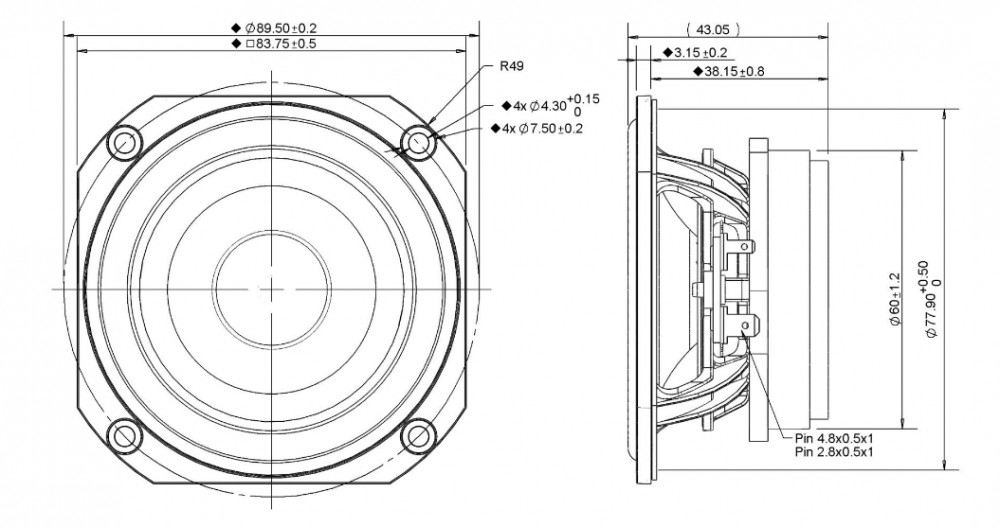

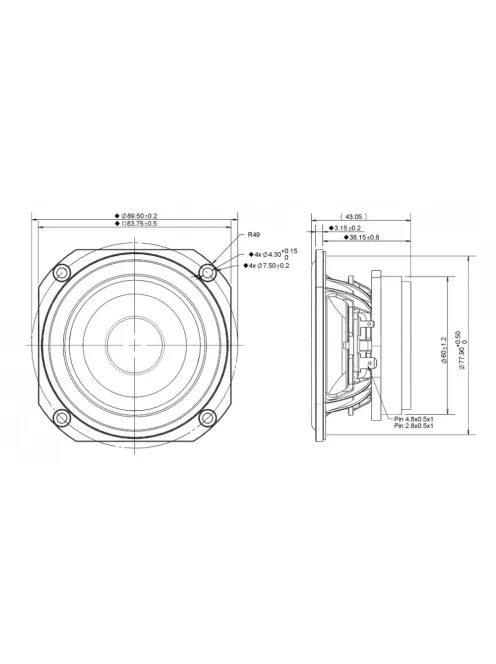

Overall Outside Diameter: Diagonal: 3.62", Across flats: 3.3"

Overall Depth: 1.69"

Baffle Cutout Diameter: 3"

Bolt Circle Diameter: 3.5"

# Mounting Holes: 4
