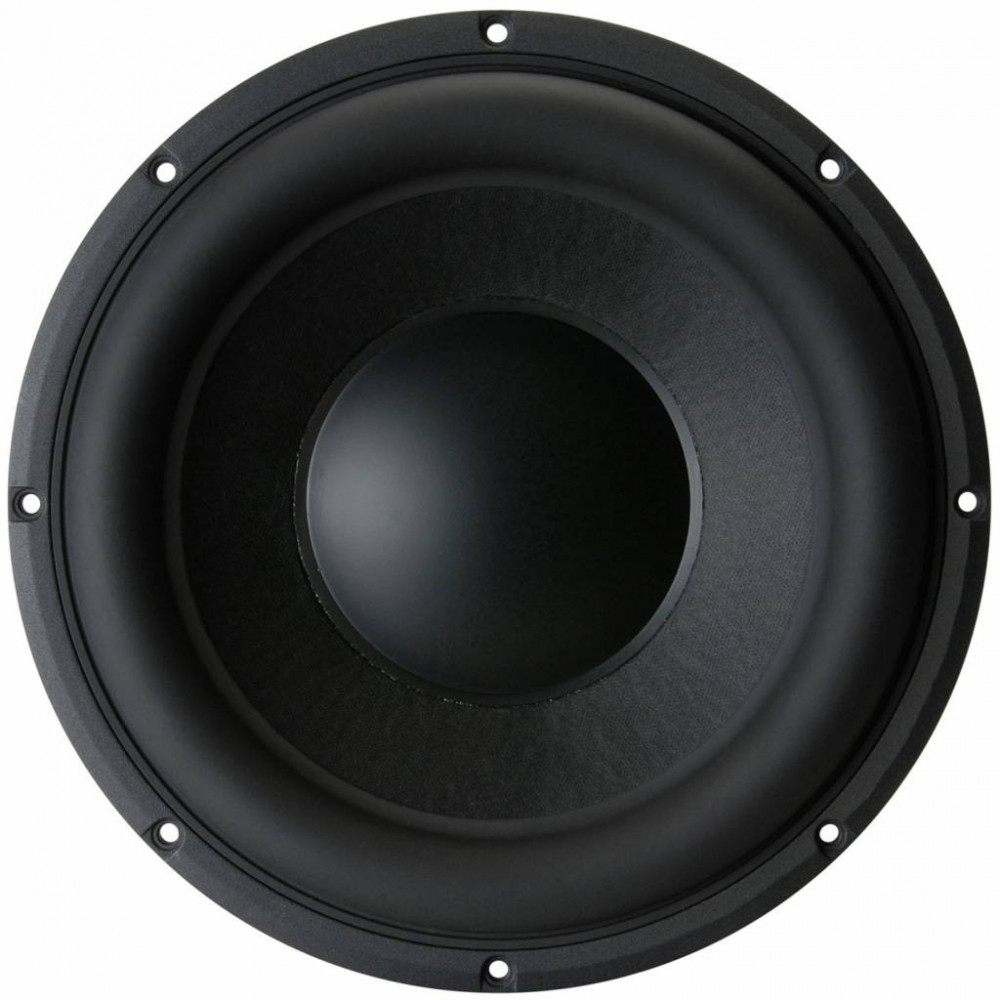

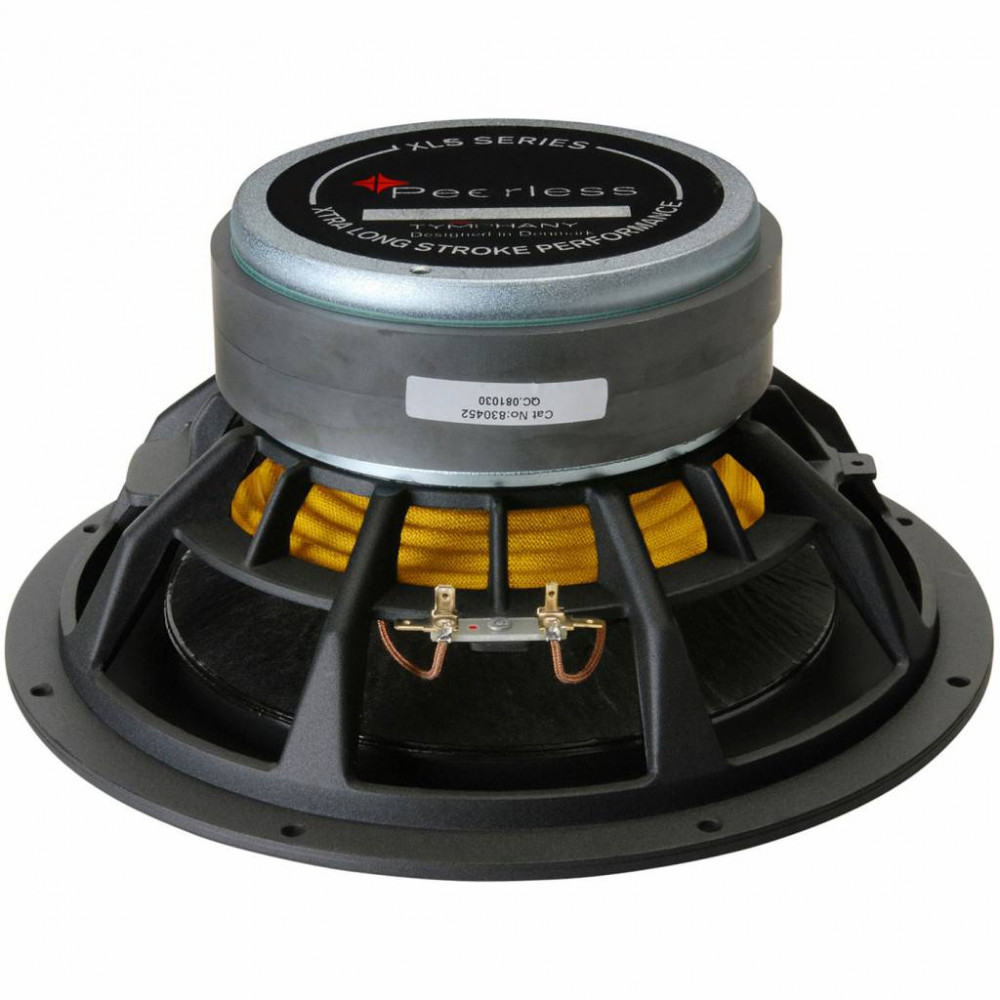

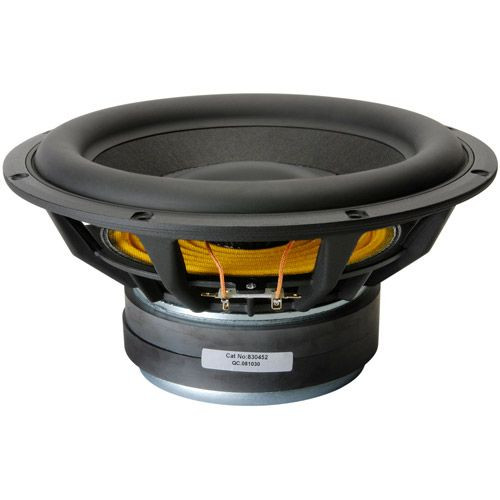

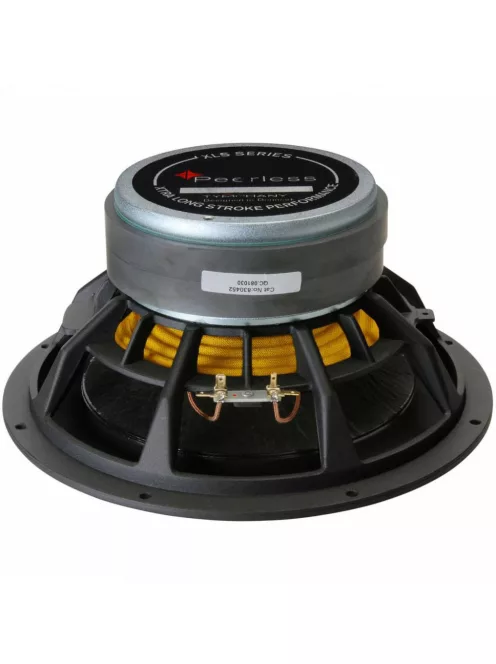

Woofer Type: Subwoofer
Nominal Diameter: 10"
Power Handling (RMS): 150 Watts
Power Handling (max): 300 Watts
Impedance (Z): 4 ohms
Sensitivity: 86.6 dB 2.83V/1m

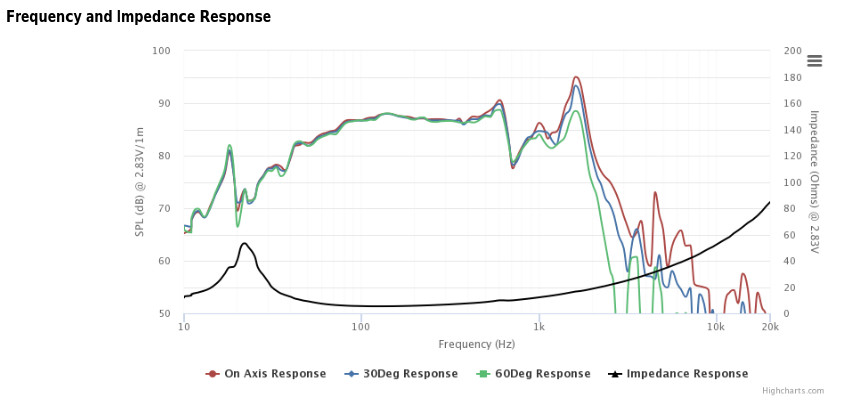

Frequency Response: 19 to 700Hz
Voice Coil Diameter: 2"
DC Resistance (Re): 3.6 ohms
Voice Coil Inductance (Le): 0.99 mH
Resonant Frequency (Fs): 22 Hz
Mechanical Q (Qms): 3.86
Electromagnetic Q (Qes): 0.24
Total Q (Qts): 0.23
Diaphragm Mass Inc. Airload (Mms): 136.6g
Mechanical Compliance of Suspension (Cms): 0.39 mm/N
Surface Area of Cone (Sd): 349.7 cm²
BL Product (BL): 16.75 Tm
Compliance Equivalent Volume (Vas): 2.36 ft.³
Maximum Linear Excursion (Xmax): 12.5 mm
Cone / Diaphragm Material: Paper
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite

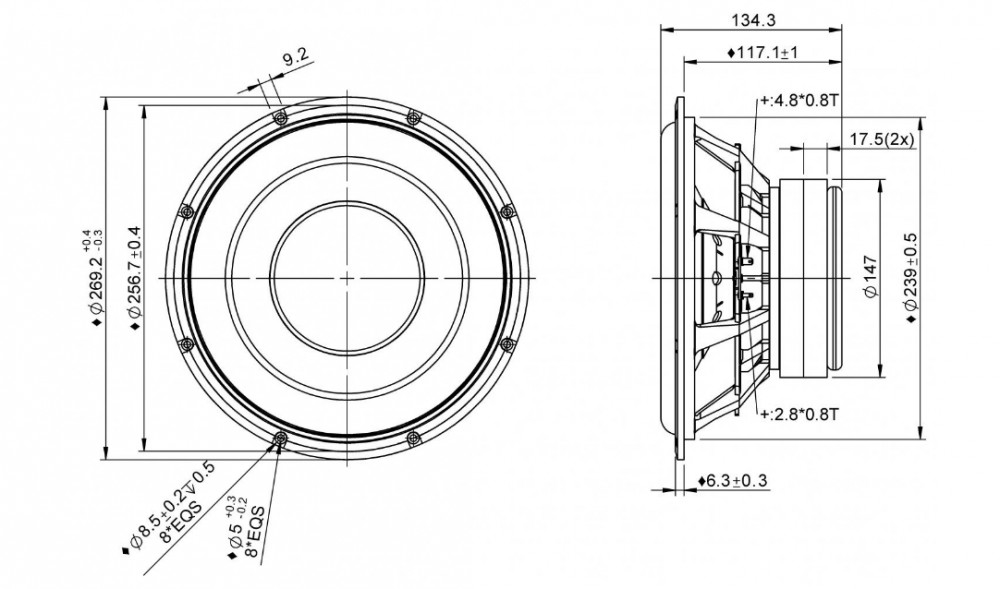

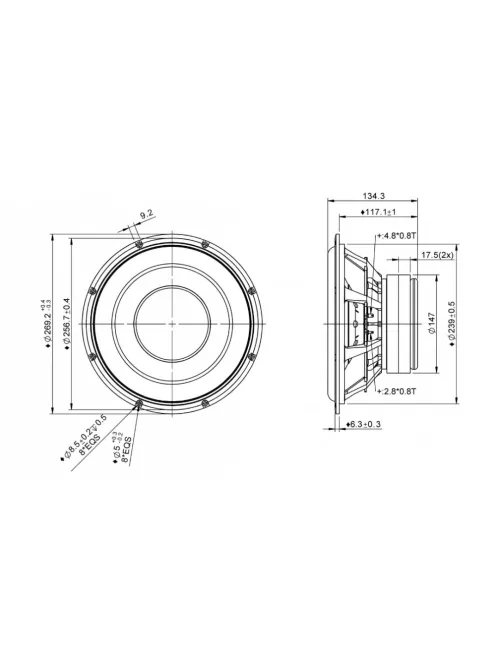

Overall Outside Diameter: 10.59"
Overall Depth: 4.88"
Baffle Cutout Diameter: 9.4"
# Mounting Holes: 6
