Tweeter Type: Ring Radiator
Tweeter Series: XT Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 100 Watts
Impedance (Z): 4 ohms
Sensitivity: 90.14 dB 1W/1m

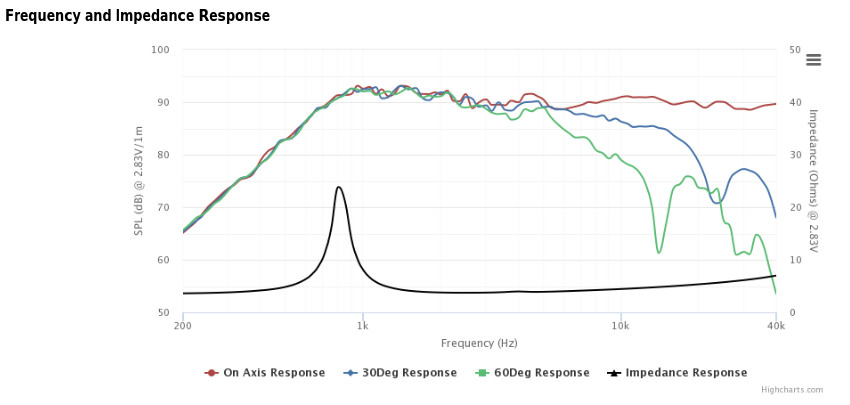

Frequency Response: 1600 to 20,000 Hz
Resonant Frequency (Fs): 824 Hz
DC Resistance (Re): 3.13 ohms
Voice Coil Inductance (Le): 0.01 mH
Mechanical Q (Qms): 7.17
Electromagnetic Q (Qes): 1.07
Total Q (Qts): 0.93
