Woofer Type: Subwoofer
Nominal Diameter: 12"
Power Handling (RMS): 175 Watts
Power Handling (max): 350 Watts
Impedance (Z): 4 Ohms
Sensitivity: 88.6 dB 2.83V/1m

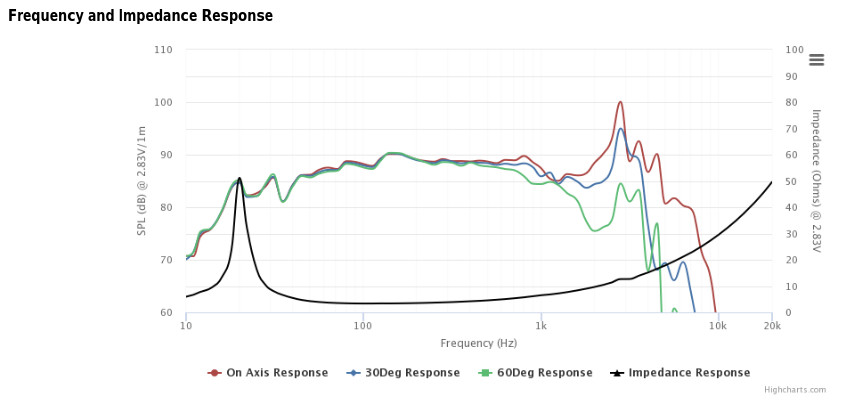

Frequency Response: 19 to 1,000Hz
Voice Coil Diameter: 2"
DC Resistance (Re): 2.5 ohms
Voice Coil Inductance (Le): 0.53 mH
Resonant Frequency (Fs): 22 Hz
Mechanical Q (Qms): 10.83
Electromagnetic Q (Qes): 0.4
Total Q (Qts): 0.39
Diaphragm Mass Inc. Airload (Mms): 131.4g
Mechanical Compliance of Suspension (Cms): 0.42 mm/N
Surface Area of Cone (Sd): 483.1 cm²
BL Product (BL): 10.58 Tm
Compliance Equivalent Volume (Vas): 4.8 ft.³
Maximum Linear Excursion (Xmax): 12.5 mm
Cone / Diaphragm Material: Aluminium
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite

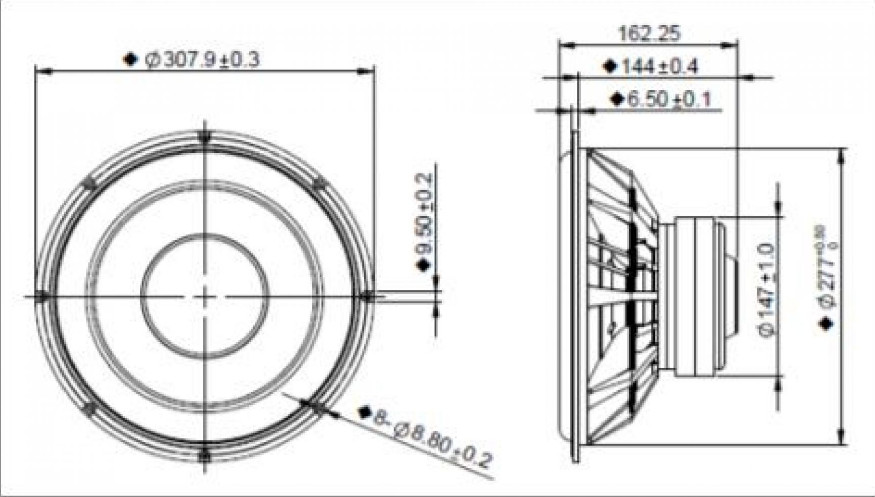

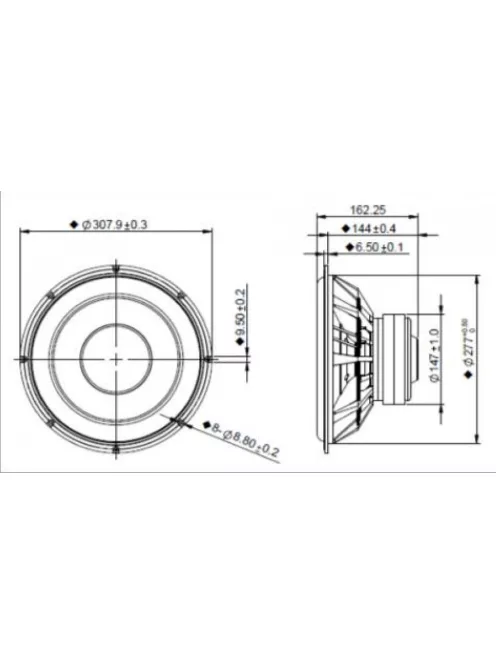

Overall Outside Diameter: 12.12"
Overall Depth: 6.38"
Baffle Cutout Diameter: 10.91"
# Mounting Holes: 6
