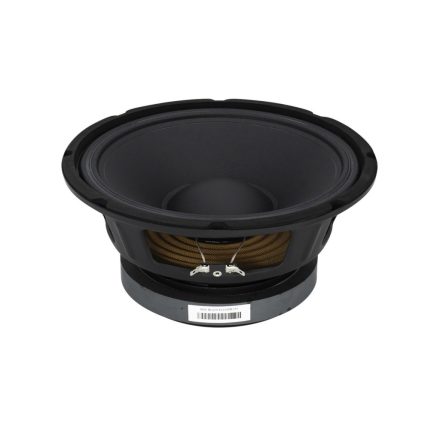

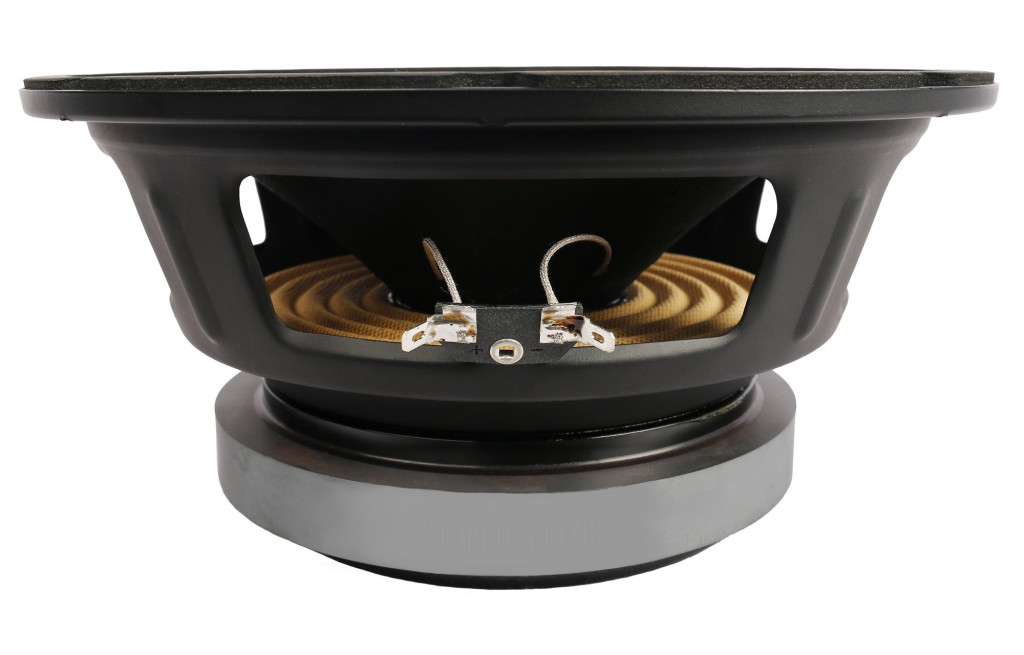

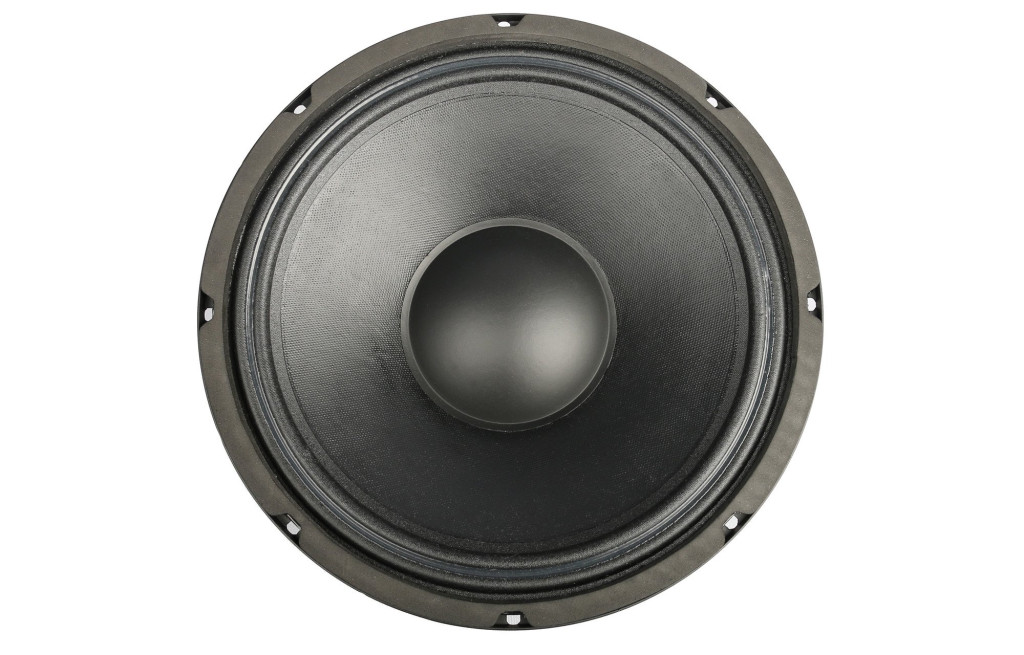

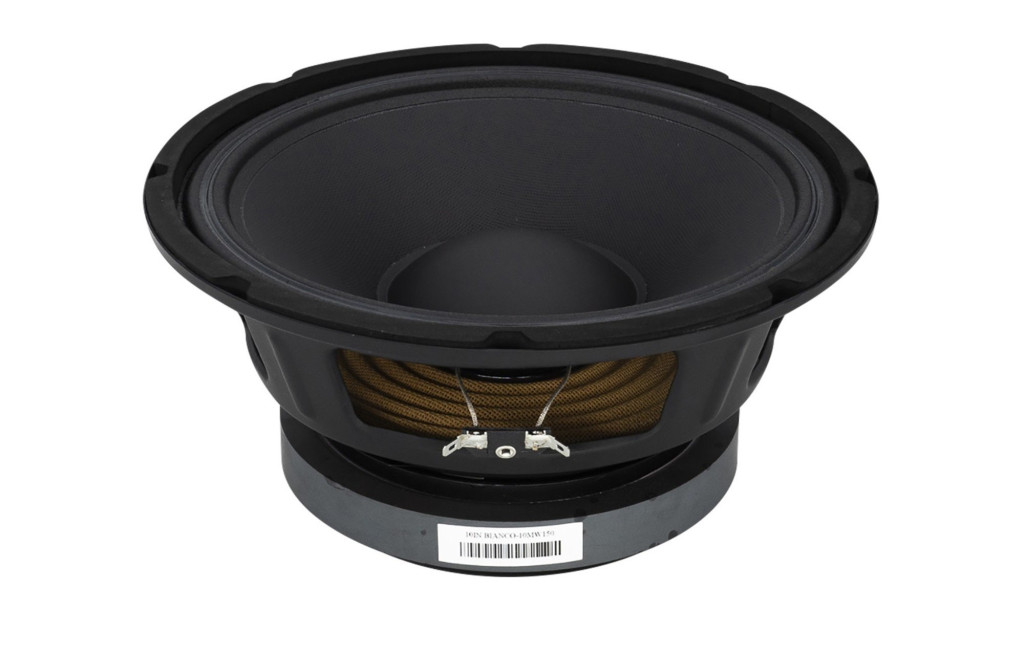

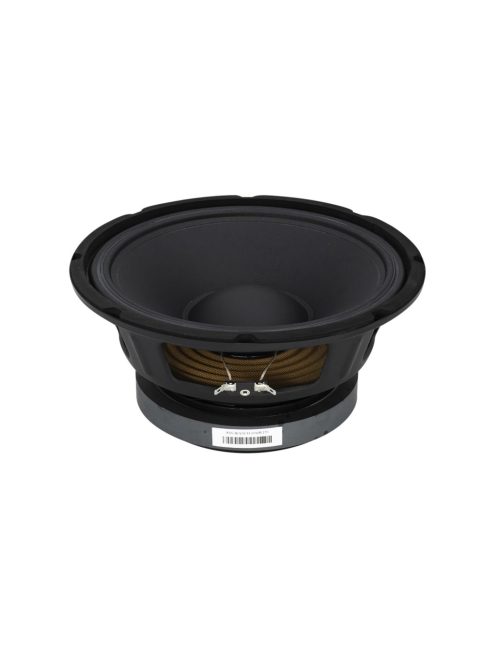

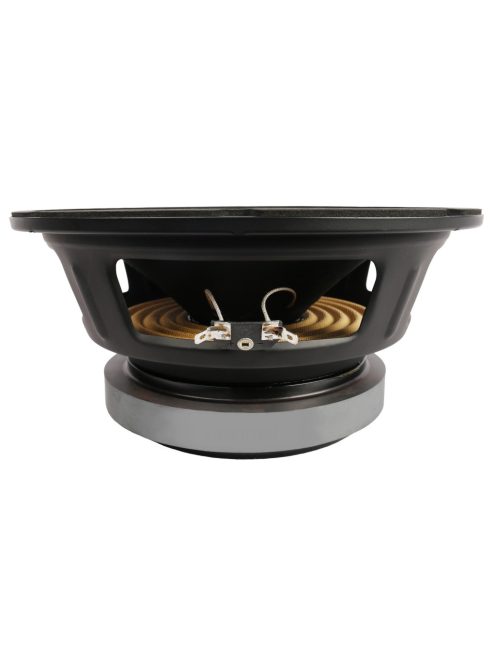

BIANCO-10MW150 Mid-range Woofer
BIANCO-10MW150 Mid-range Woofer
70.05 € excl. VAT

BIANCO-10MW150 Mid-range Woofer

BIANCO-10MW150 Mid-range Woofer
BIANCO-10MW150 Mid-range Woofer
BIANCO-10MW150 Mid-range Woofer
BIANCO-10MW150 Mid-range Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
SB Audience
Orderable
70.05 € excl. VAT
Details

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.



Highlights

  • Proprietary cone paper material with linter pulp
  • 2.4" voice coil with APC (Advanced Polymer Coating)
  • Vented pole piece for reduced compression
  • Minimum damping fiber glass voice coil former
  • Weather-proof coated cone paper
  • Long life silver lead wires



Product Details

SB Audience BIANCO-10MW150 Mid-range Woofer



SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.



There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

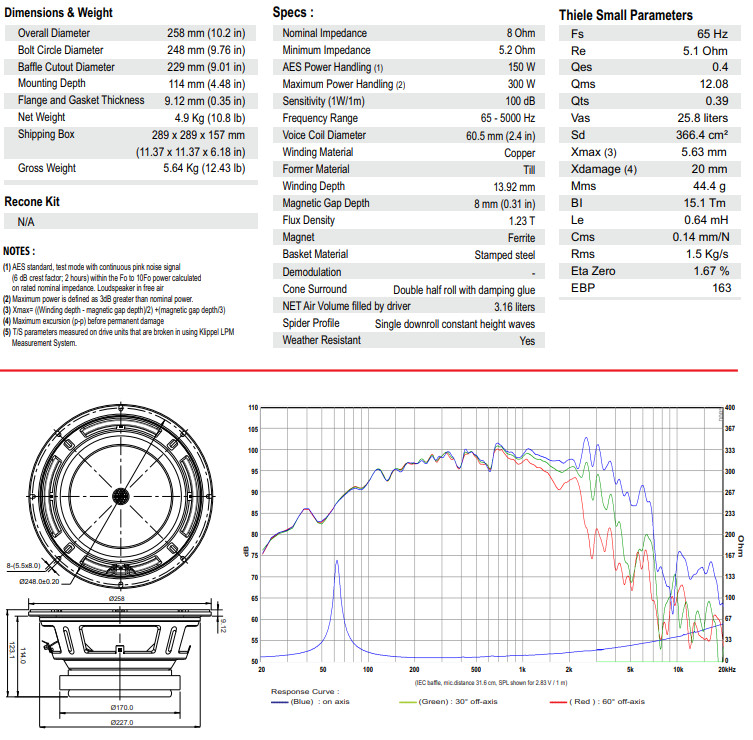

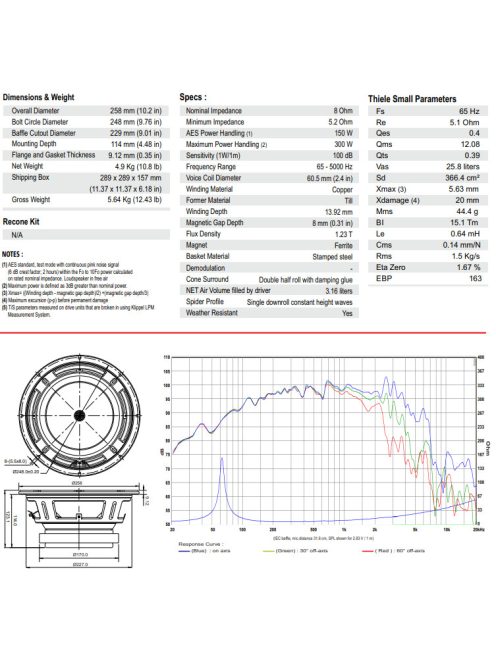

Specifications

Article numberBIANCO-10MW150
EAN8785256846252
Woofer SeriesSB Audience Bianco series
Woofer TypeMid-range
Power Handling (RMS)150W
Power Handling (max)300 W
Impedance (Z)8 Ohm
Sensitivity (SPL at 1m / 2.83V)100 dB
Frequency Response65 - 5000 Hz
Voice Coil Diameter60.5 mm (2.4 in)
DC Resistance (Re)5.1Ohm
Voice Coil Inductance (Le)0.64 mH
Resonant Frequency (Fs)65 Hz
Mechanical Q (Qms)12.08
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.39
Diaphragm Mass Inc. Airload (Mms)44.4 g
Mechanical Compliance of Suspension (Cms)0.14 mm/N
Surface Area of Cone (Sd)366.4cm²
BL Product (BL)15.1 Tm
Compliance Equivalent Volume (Vas)25.8liters
Maximum Linear Excursion (Xmax)5.63 mm
Driver's Mechanical Losses (Rms)1.5 Kg/s
Basket / Frame MaterialStamped steel
Magnet MaterialFerrite
Overall Outside Diameter258 mm (10.2 in)
Baffle Cutout Diameter229 mm (9.01 in)
Bolt Circle Diameter248 mm (9.76 in)
Info
Article No.
SAU-BIANCO-10MW150
