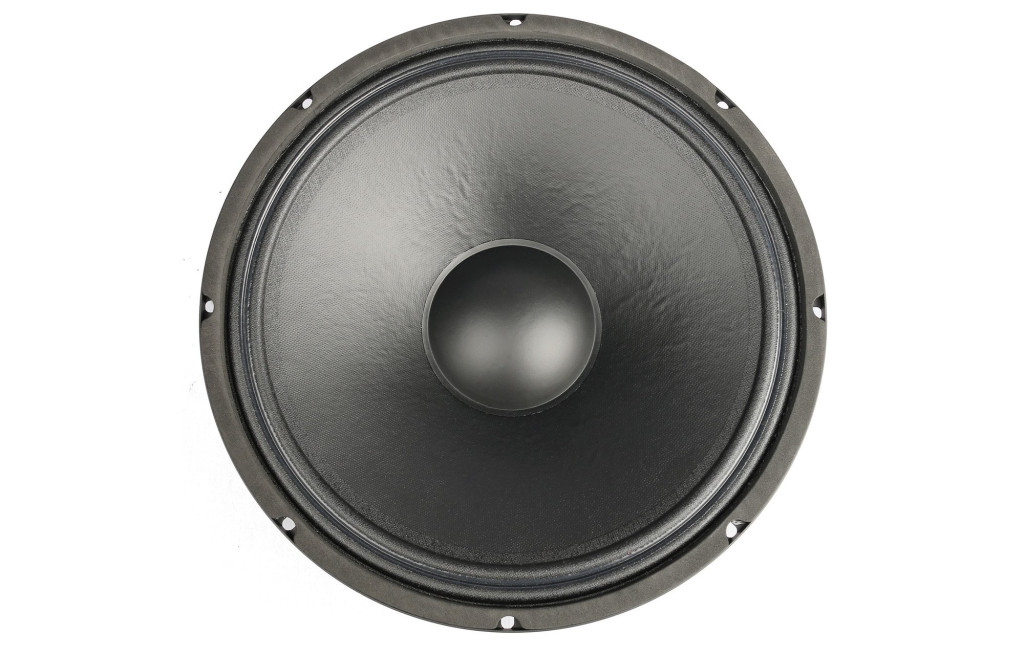

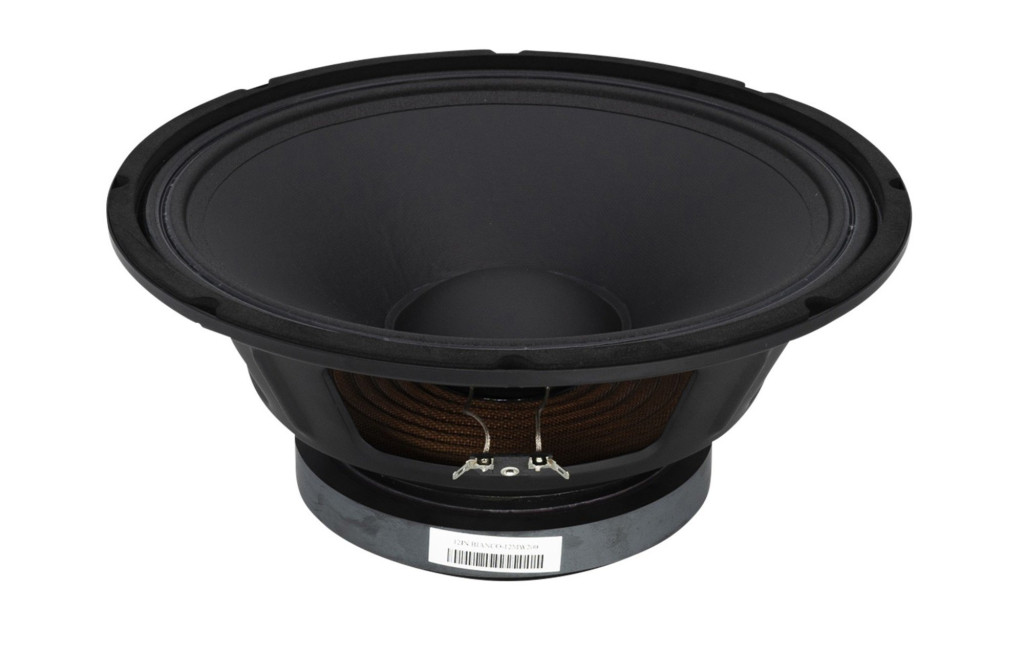

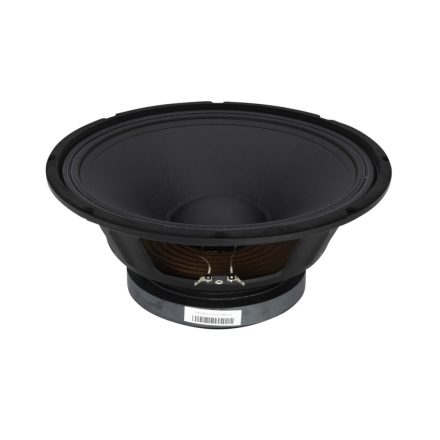

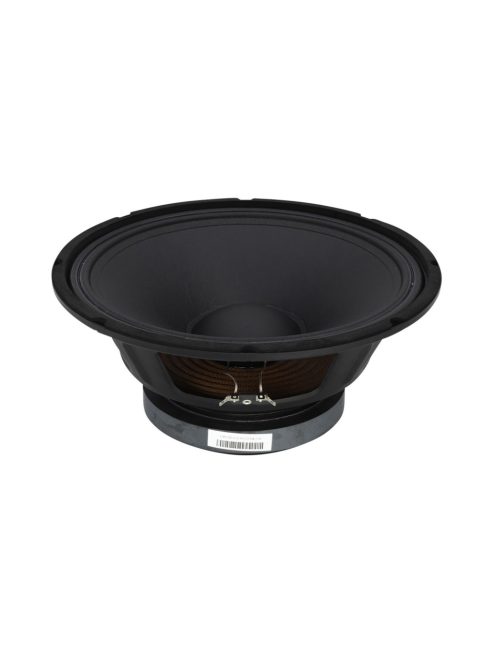

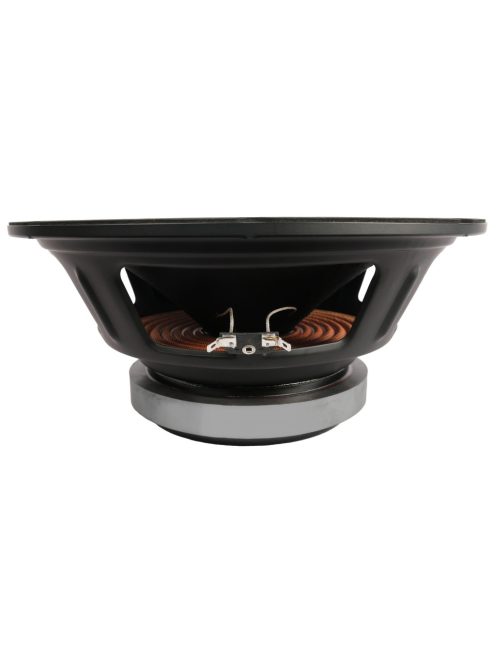

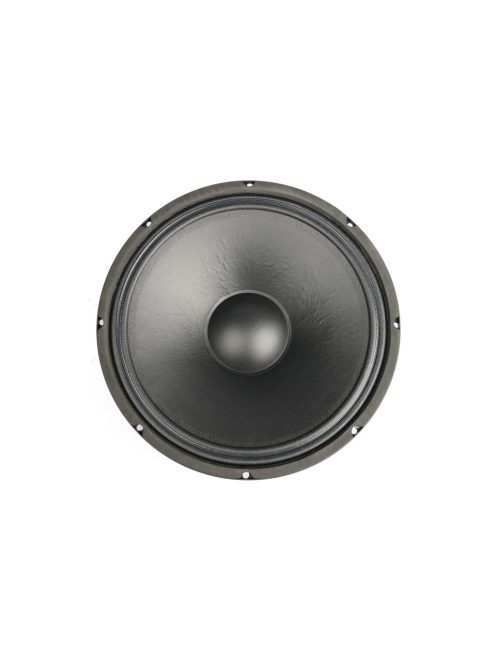

BIANCO-12MW200 Mid-range Woofer
BIANCO-12MW200 Mid-range Woofer
79.40 € excl. VAT

BIANCO-12MW200 Mid-range Woofer

BIANCO-12MW200 Mid-range Woofer
BIANCO-12MW200 Mid-range Woofer
BIANCO-12MW200 Mid-range Woofer
BIANCO-12MW200 Mid-range Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
SB Audience
Orderable
79.40 € excl. VAT
Details

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.



Highlights

  • Proprietary cone paper material with silk cotton tree and manila pulp
  • 2.4" voice coil with APC (Advanced Polymer Coating)
  • Vented pole piece for reduced compression
  • Minimum damping fiber glass voice coil former
  • Long life silver lead wires
  • Weather-proof coated cone paper



Product Details

SB Audience BIANCO-12MW200 Mid-range Woofer



SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.



There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

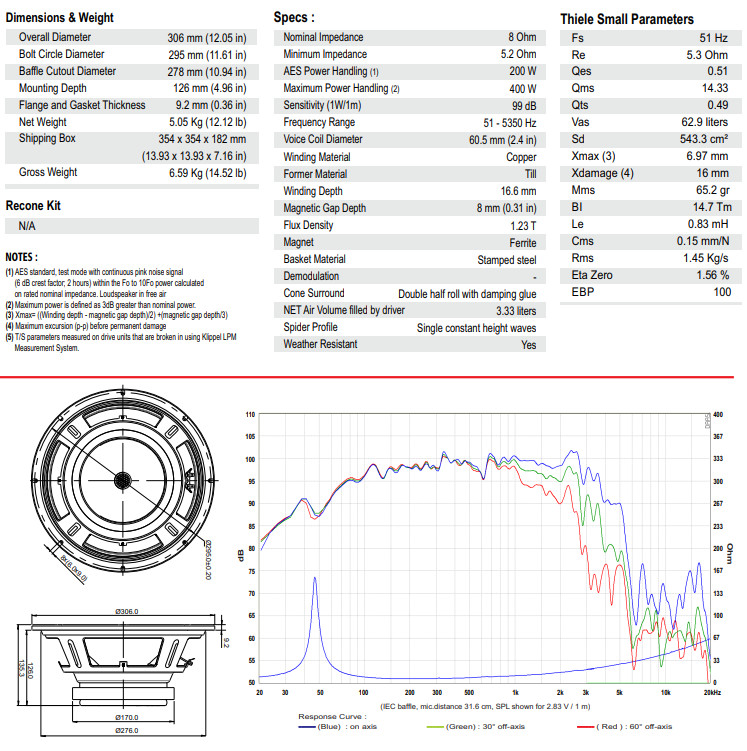

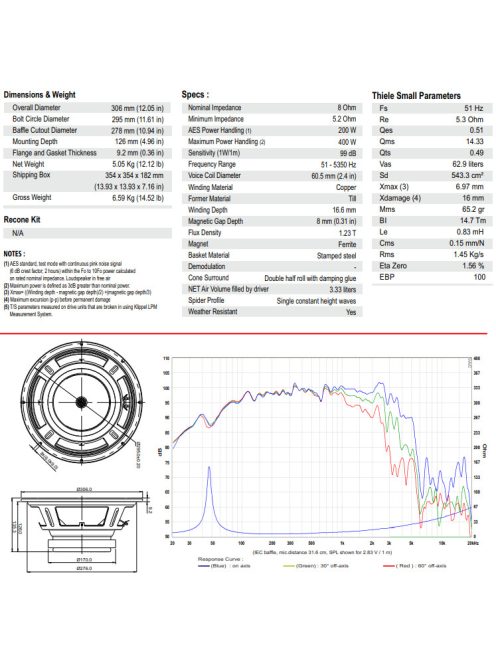

Specifications

Article numberBIANCO-12MW200
EAN8785256846276
Woofer SeriesSB Audience Bianco series
Woofer TypeMid-range
Power Handling (RMS)200 Watts
Power Handling (max)400 Watts
Sensitivity (SPL at 1m / 2.83V)99 dB
Frequency Response51 - 5350 Hz
Voice Coil Diameter60.5 mm (2.4 in)
DC Resistance (Re)5.2 Ohm
Voice Coil Inductance (Le)0.83mH
Resonant Frequency (Fs)51 Hz
Mechanical Q (Qms)14.33
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.49
Diaphragm Mass Inc. Airload (Mms)65.2gr
Mechanical Compliance of Suspension (Cms)0.15mm/N
Surface Area of Cone (Sd)543.3cm²
BL Product (BL)14.7 Tm
Compliance Equivalent Volume (Vas)62.9liters
Maximum Linear Excursion (Xmax)6.97 mm
Voice Coil Wire MaterialCopper
