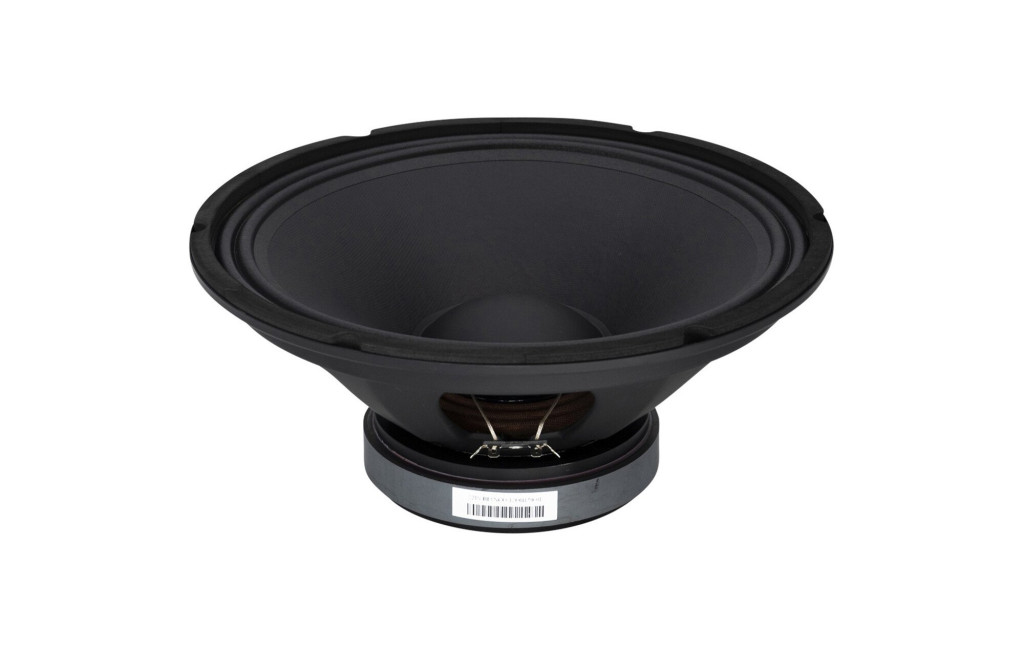

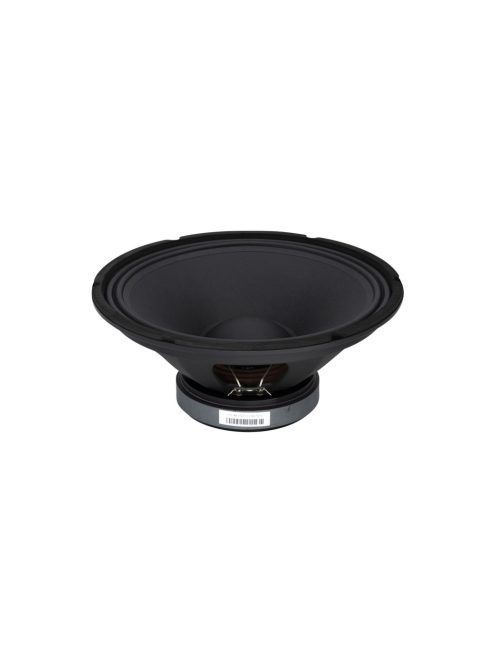

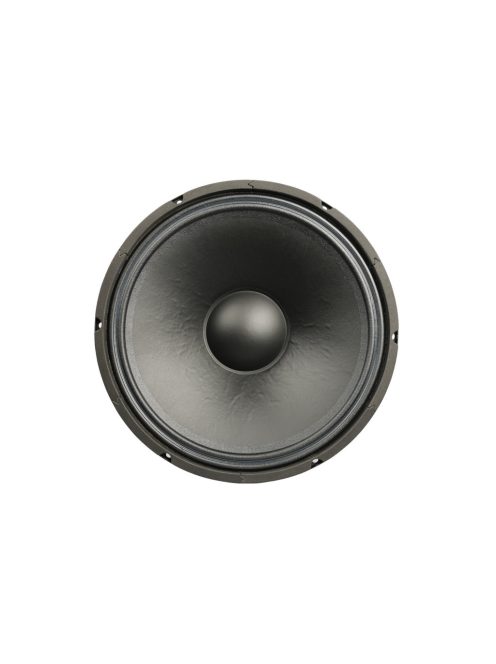

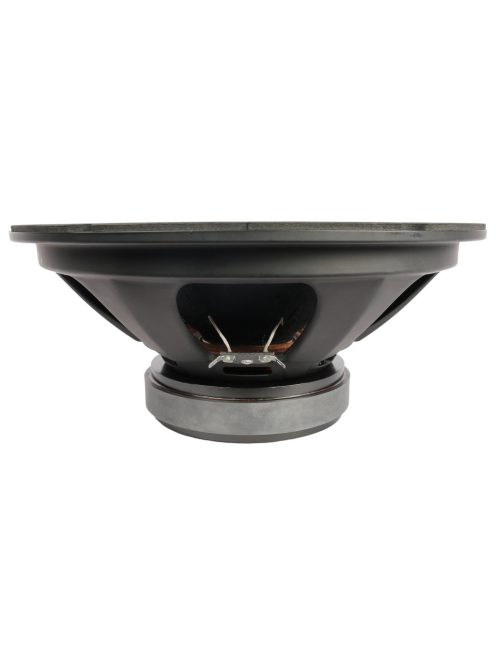

BIANCO-12OB150-01 Open Baffle Woofer
BIANCO-12OB150-01 Open Baffle Woofer
76.42 € excl. VAT

BIANCO-12OB150-01 Open Baffle Woofer

BIANCO-12OB150-01 Open Baffle Woofer
BIANCO-12OB150-01 Open Baffle Woofer
BIANCO-12OB150-01 Open Baffle Woofer
BIANCO-12OB150-01 Open Baffle Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
SB Audience
Orderable
76.42 € excl. VAT
Details

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.



Highlights

  • Proprietary cone paper material with silk cotton tree and manila pulp
  • Minimum damping fiber glass voice coil former
  • 2.4" voice coil
  • Long life silver lead wires
  • Weather-proof coated cone paper
  • Designed for open baffle applications
  • Vented pole piece for reduced compression



Product Details

SB Audience BIANCO-12OB150-01 Open Baffle Woofer



SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.



There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

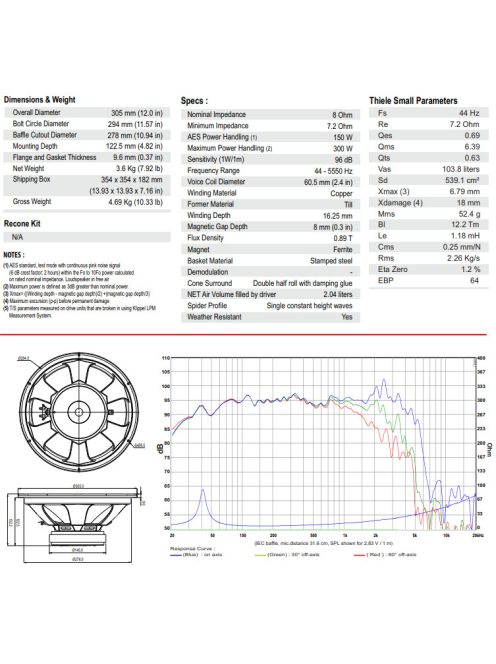

Specifications

Article numberBIANCO-12OB150-01
EAN8785256846474
Woofer SeriesSB Audience Bianco series
Woofer TypeOpen Baffle
Nominal Diameter12”
Power Handling (RMS)150 W
Power Handling (max)300 W
Impedance (Z)8 Ohm
Sensitivity (SPL at 1m / 2.83V)96 dB
Frequency Response44 - 5550 Hz
Voice Coil Diameter60.5 mm (2.4 in)
DC Resistance (Re)7.2 Ohm
Voice Coil Inductance (Le)1.18mH
Resonant Frequency (Fs)44 Hz
Mechanical Q (Qms)6.39
Electromagnetic Q (Qes)0.69
Total Q (Qts)0.63
Diaphragm Mass Inc. Airload (Mms)52.4g
Mechanical Compliance of Suspension (Cms)0.25mm/N
Surface Area of Cone (Sd)539.1cm²
BL Product (BL)12.2 Tm
Compliance Equivalent Volume (Vas)103.8liters
Maximum Linear Excursion (Xmax)6.79 mm
Driver's Mechanical Losses (Rms)2.26Kg/s
Basket / Frame MaterialStamped steel
Magnet MaterialFerrite
Overall Outside Diameter305 mm (12.0 in)
Baffle Cutout Diameter278 mm (10.94 in)
Bolt Circle Diameter294 mm (11.57 in)
Info
Article No.
SAU-BIANCO-12OB150-01
