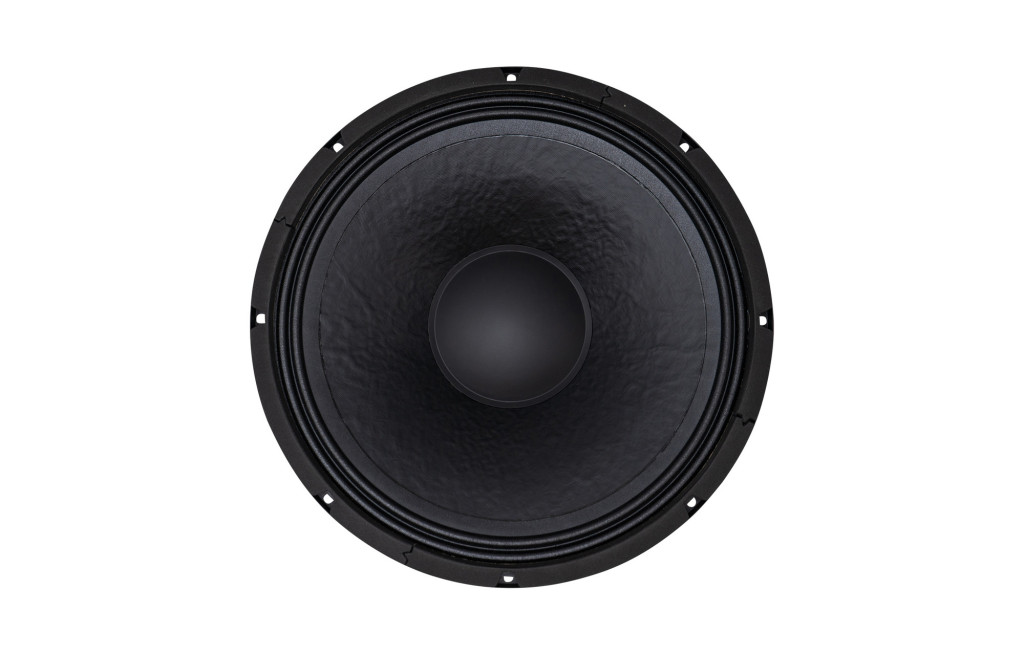

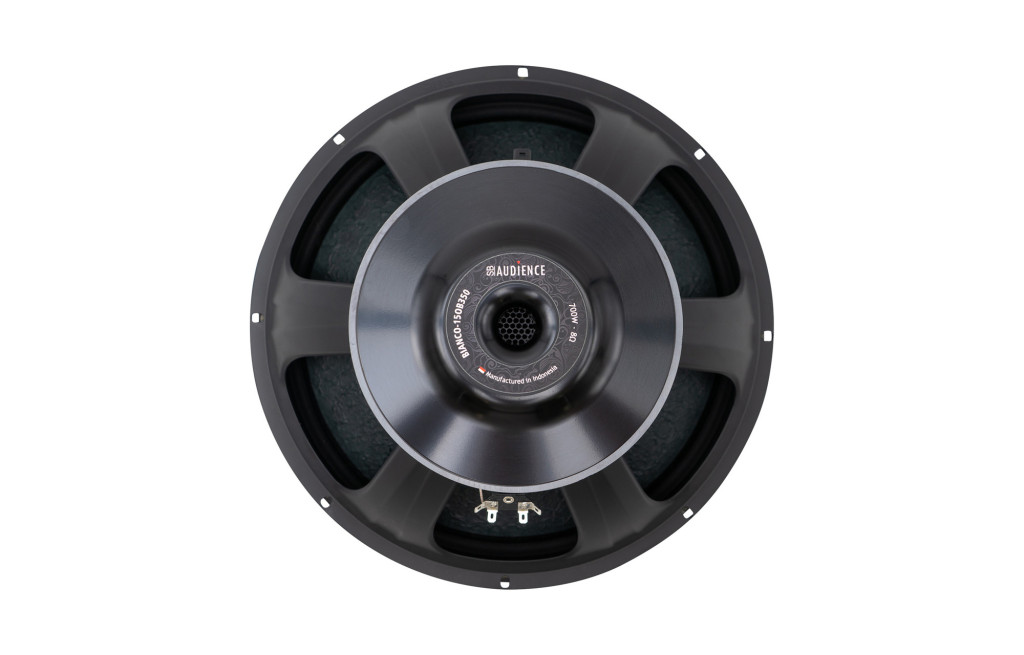

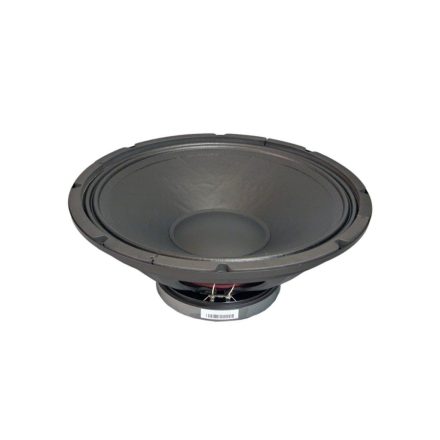

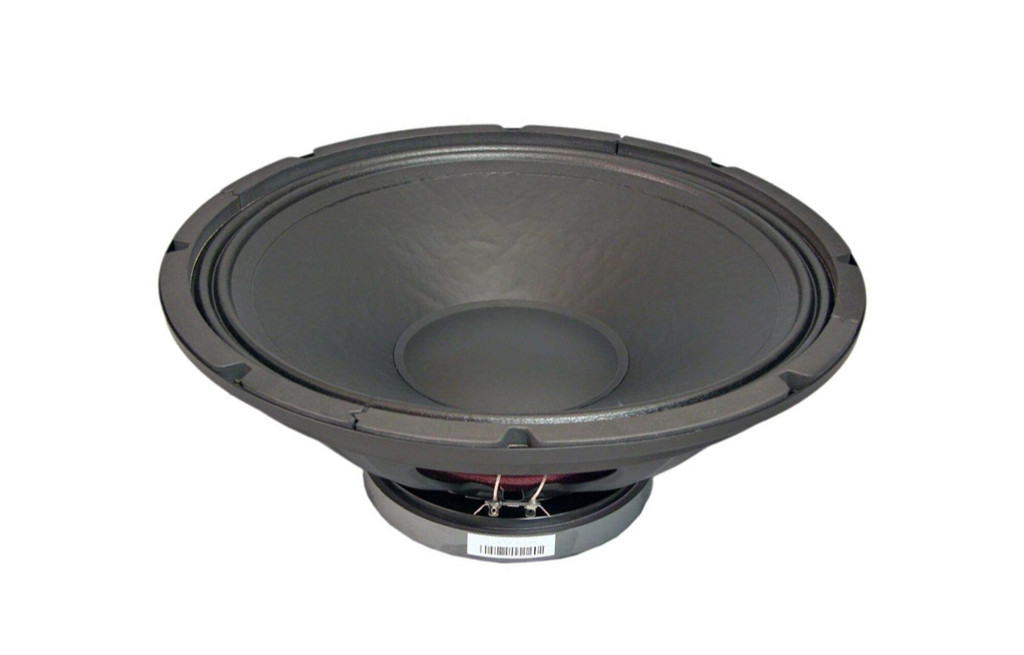

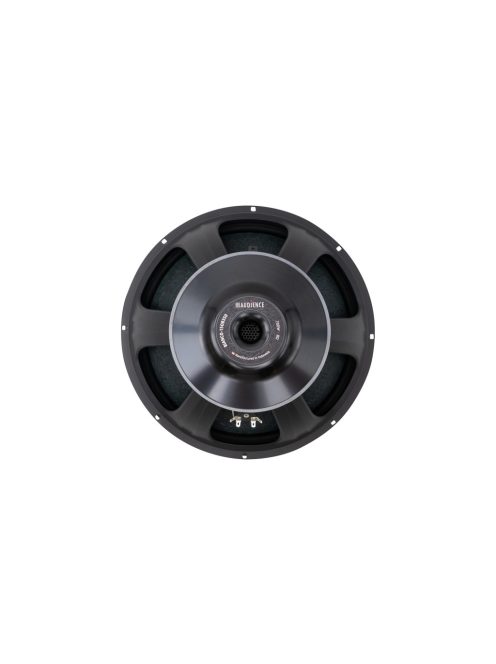

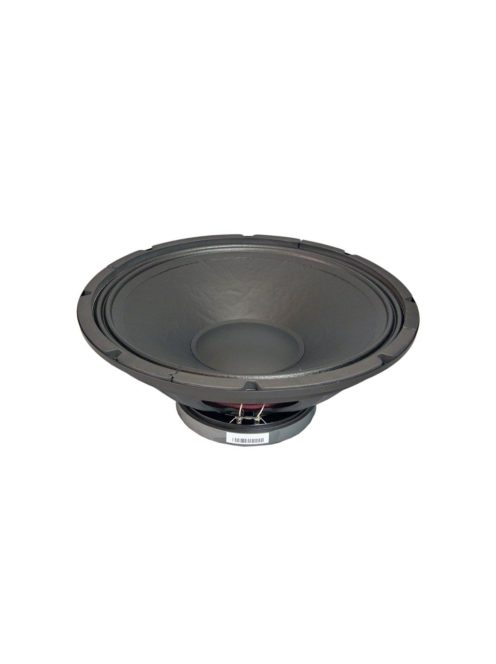

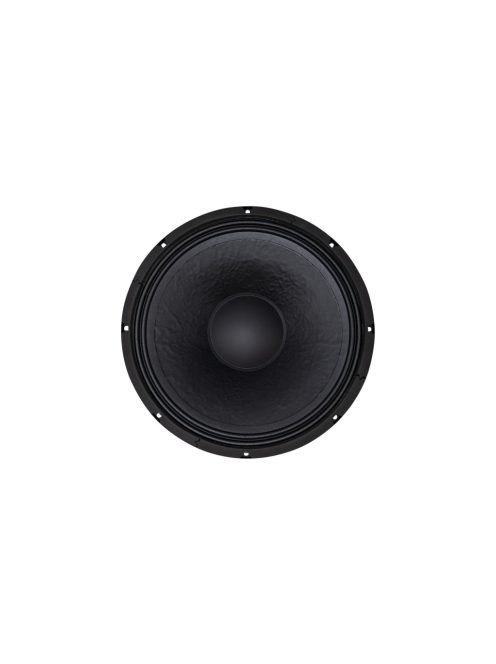

BIANCO-15OB350 Open Baffle Woofer
BIANCO-15OB350 Open Baffle Woofer
118.90 € excl. VAT

BIANCO-15OB350 Open Baffle Woofer

BIANCO-15OB350 Open Baffle Woofer
BIANCO-15OB350 Open Baffle Woofer
BIANCO-15OB350 Open Baffle Woofer
BIANCO-15OB350 Open Baffle Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
SB Audience
Orderable
118.90 € excl. VAT
Details

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.



Highlights

  • Proprietary cone paper material made in-house
  • Vented pole piece for reduced compression
  • Minimum damping fiber glass voice coil former
  • 2.5" voice coil
  • Long life silver lead wires
  • Weather-proof coated cone paper
  • Designed for open baffle applications



Product Details

SB Audience BIANCO-15OB350 Open Baffle Woofer



SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.



There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

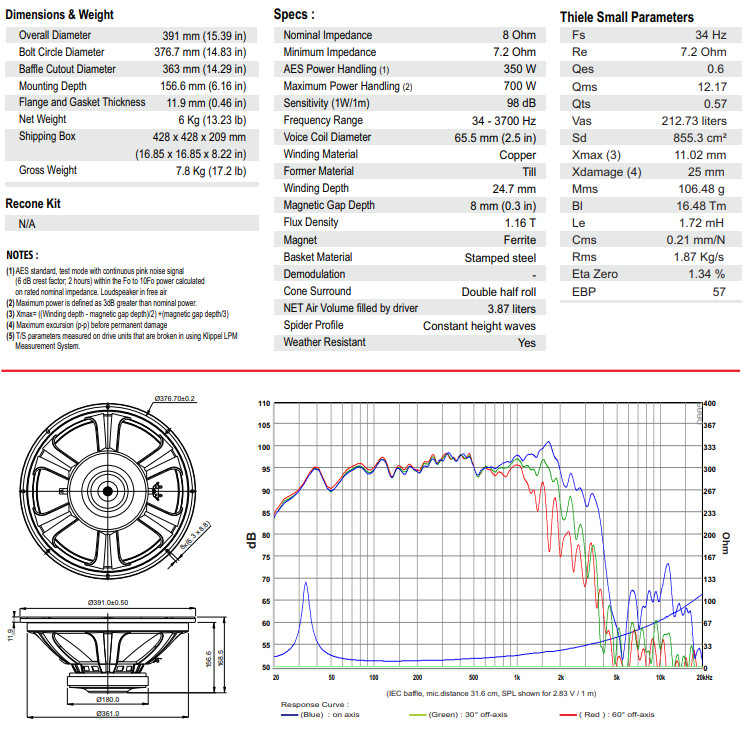

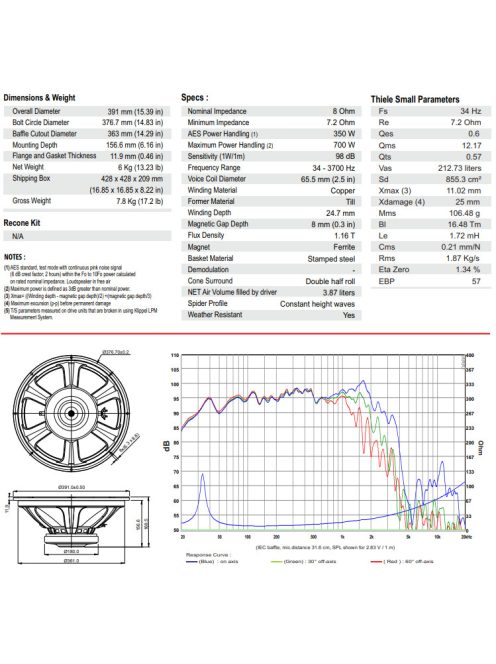

Specifications

Article numberBIANCO-15OB350
EAN8785256846481
Woofer SeriesSB Audience Bianco series
Woofer TypeOpen Baffle
Nominal Diameter15”
Power Handling (RMS)350W
Power Handling (max)700 W
Impedance (Z)8 Ohm
Sensitivity (SPL at 1m / 2.83V)98 dB
Frequency Response34 - 3700 Hz
Voice Coil Diameter65.5 mm (2.5 in)
DC Resistance (Re)7.2 Ohm
Voice Coil Inductance (Le)1.72mH
Resonant Frequency (Fs)34 Hz
Mechanical Q (Qms)12.17
Electromagnetic Q (Qes)0.6
Total Q (Qts)0.57
Diaphragm Mass Inc. Airload (Mms)106.48g
Mechanical Compliance of Suspension (Cms)0.21mm/N
Surface Area of Cone (Sd)855.3cm²
BL Product (BL)16.48 Tm
Compliance Equivalent Volume (Vas)212.73liters
Maximum Linear Excursion (Xmax)11.02 mm
Driver's Mechanical Losses (Rms)1.87Kg/s
Basket / Frame MaterialStamped steel
Magnet MaterialFerrite
Overall Outside Diameter391 mm (15.39 in)
Baffle Cutout Diameter363 mm (14.29 in)
Bolt Circle Diameter376.7 mm (14.83 in)
