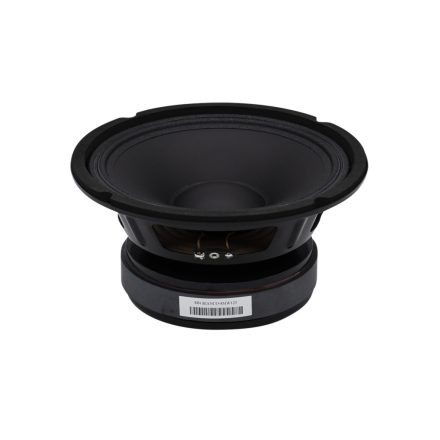

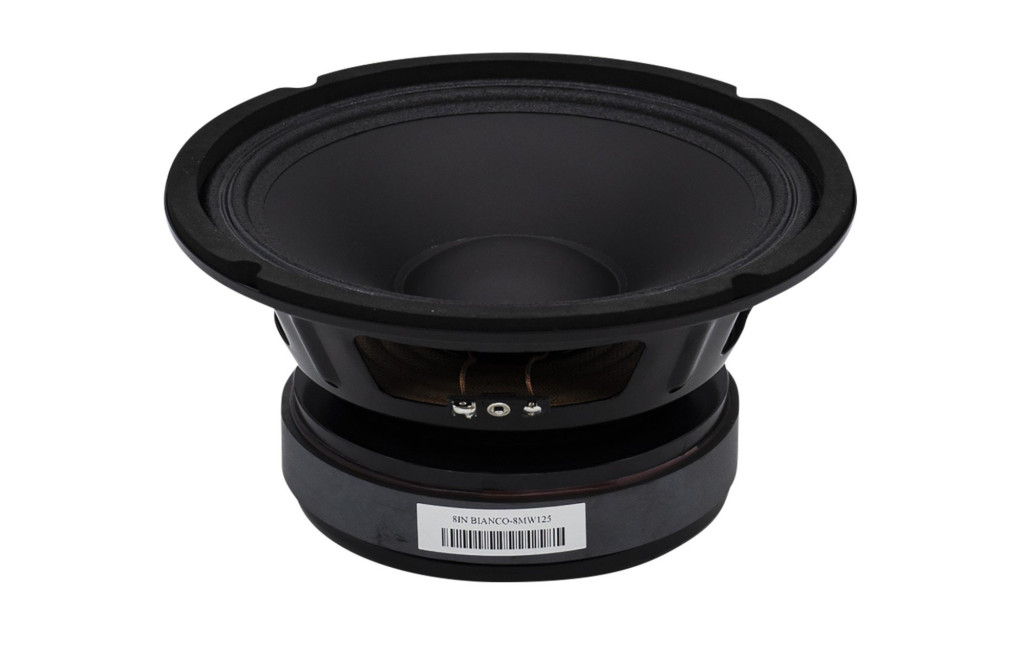

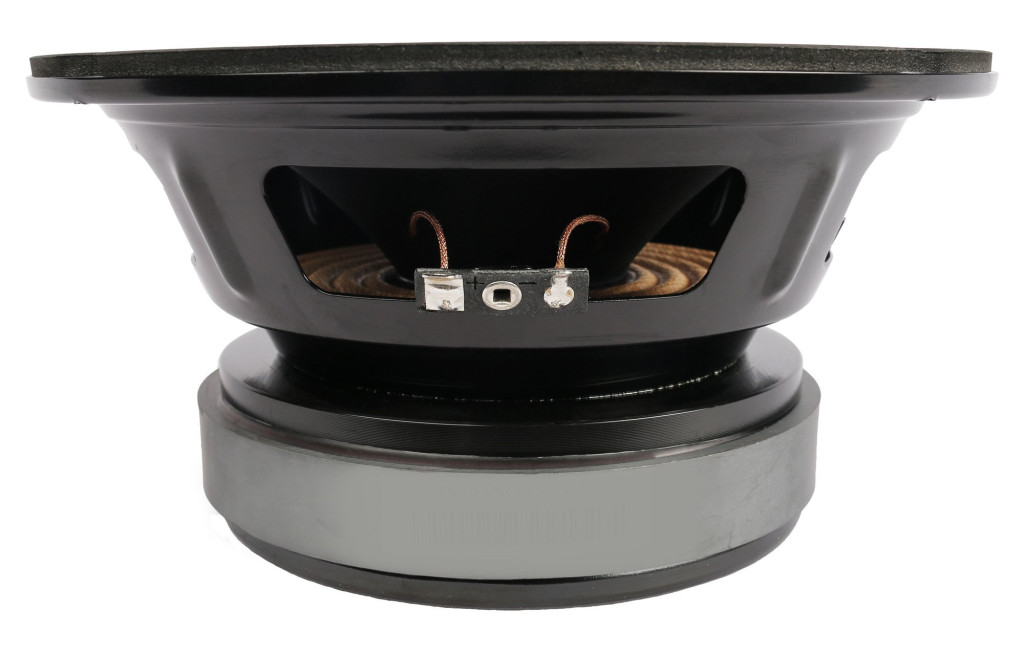

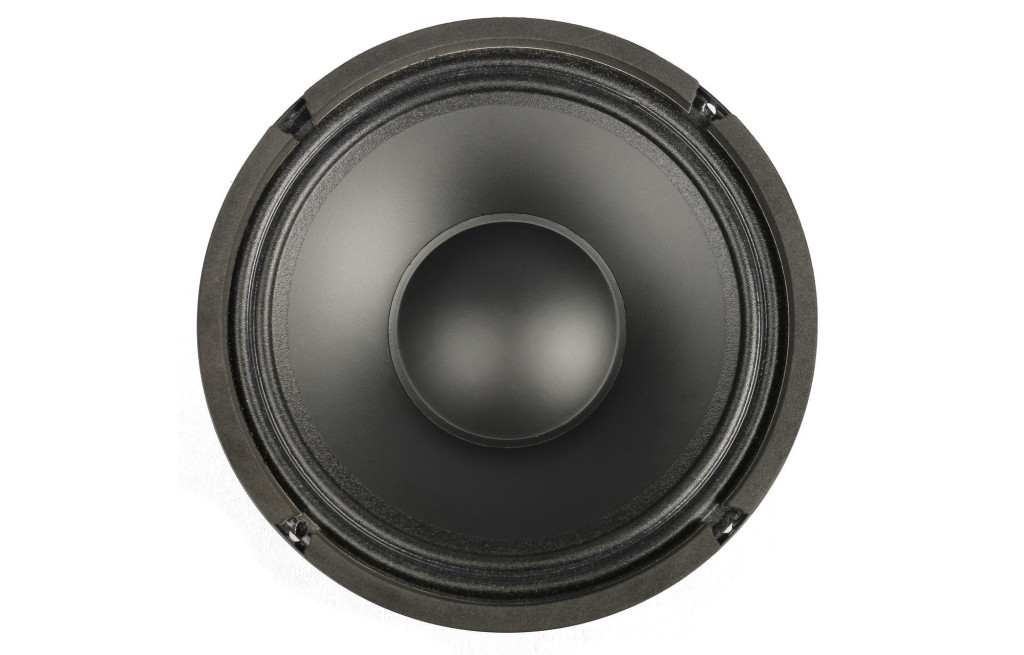

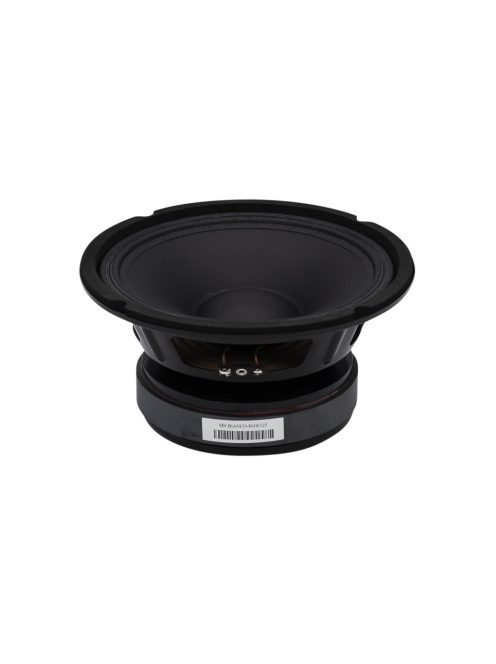

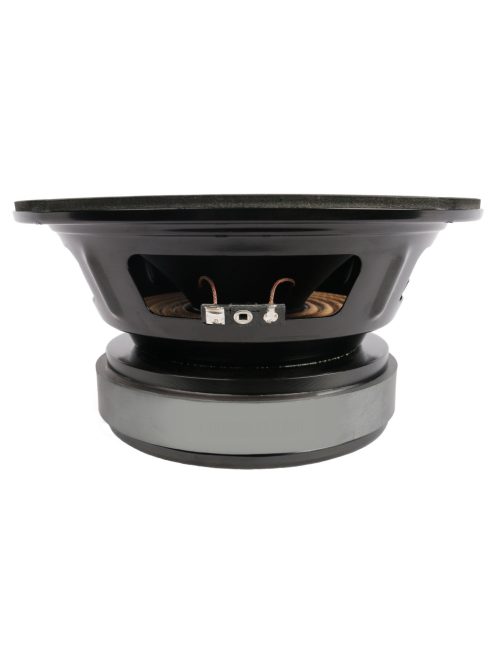

BIANCO-8MW125 Mid-range Woofer
BIANCO-8MW125 Mid-range Woofer
53.06 € excl. VAT

BIANCO-8MW125 Mid-range Woofer

BIANCO-8MW125 Mid-range Woofer
BIANCO-8MW125 Mid-range Woofer
BIANCO-8MW125 Mid-range Woofer
BIANCO-8MW125 Mid-range Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
SB Audience
Orderable
53.06 € excl. VAT
Details

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.



Highlights

  • Proprietary cone paper material made in-house
  • 2" voice coil with APC (Advanced Polymer Coating)
  • Vented pole piece for reduced compression
  • CCAW voice coil wire for reduced moving mass
  • Minimum damping fiber glass voice coil former
  • Long life silver lead wires



Product Details

SB Audience BIANCO-8MW125 Mid-range Woofer



SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.



There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

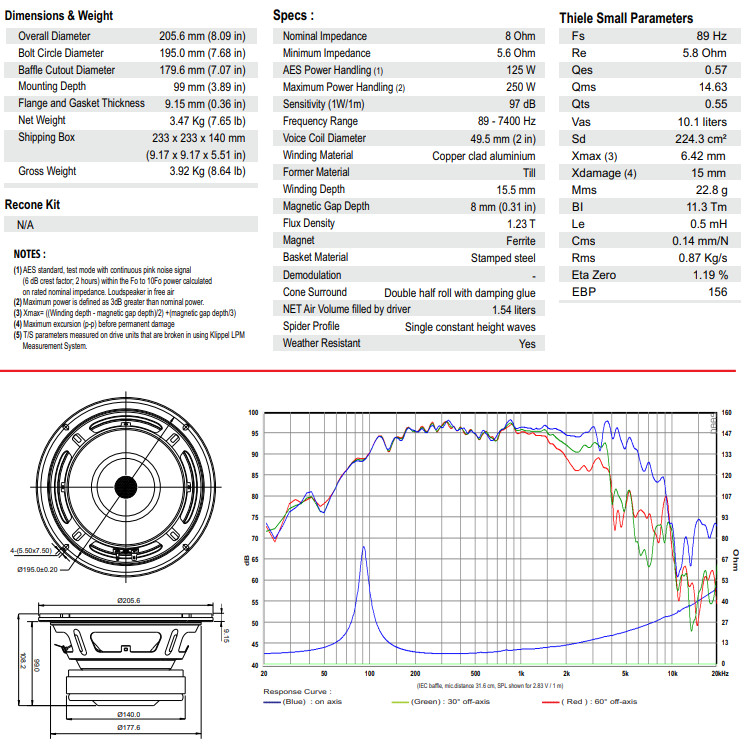

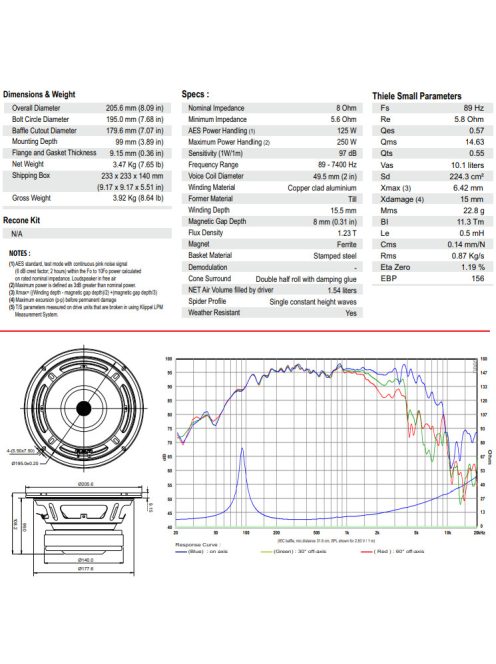

Specifications

Article numberBIANCO-8MW125
EAN8785256846238
Woofer SeriesSB Audience Bianco series
Woofer TypeMid-range
Nominal Diameter8”
Power Handling (max)250 W
Sensitivity (SPL at 1m / 2.83V)97 dB
Frequency Response89 - 7400 Hz
Voice Coil Diameter49.5 mm (2 in)
DC Resistance (Re)5.6 Ohm
Voice Coil Inductance (Le)0.5mH
Resonant Frequency (Fs)89 Hz
Mechanical Q (Qms)14.63
Electromagnetic Q (Qes)0.57
Total Q (Qts)0.55
Diaphragm Mass Inc. Airload (Mms)22.8g
Mechanical Compliance of Suspension (Cms)0.14mm/N
Surface Area of Cone (Sd)224.3cm²
BL Product (BL)11.3 Tm
Compliance Equivalent Volume (Vas)10.1liters
Maximum Linear Excursion (Xmax)6.42 mm
Driver's Mechanical Losses (Rms)0.87Kg/s
Basket / Frame MaterialStamped steel
Magnet MaterialFerrite
Overall Outside Diameter205.6 mm (8.09 in)
Baffle Cutout Diameter179.6 mm (7.07 in)
Bolt Circle Diameter195.0 mm (7.68 in)
