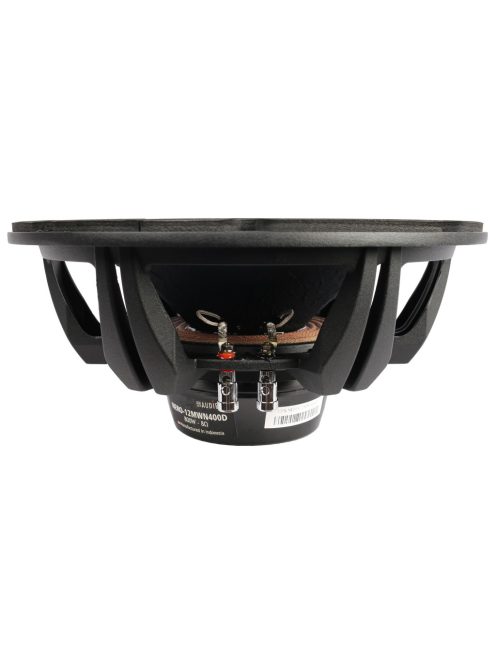

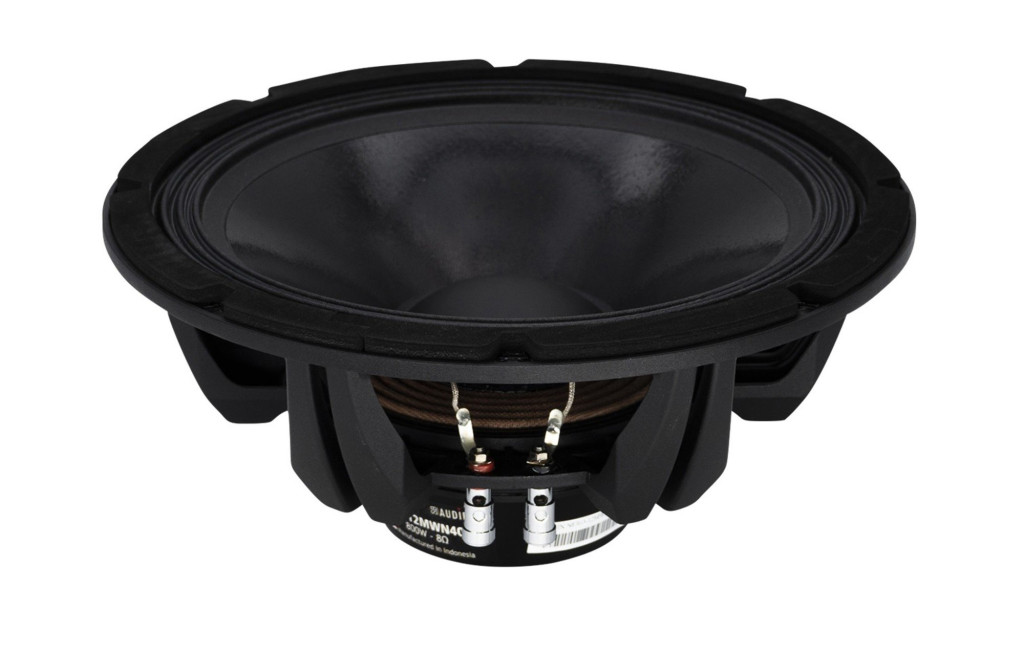

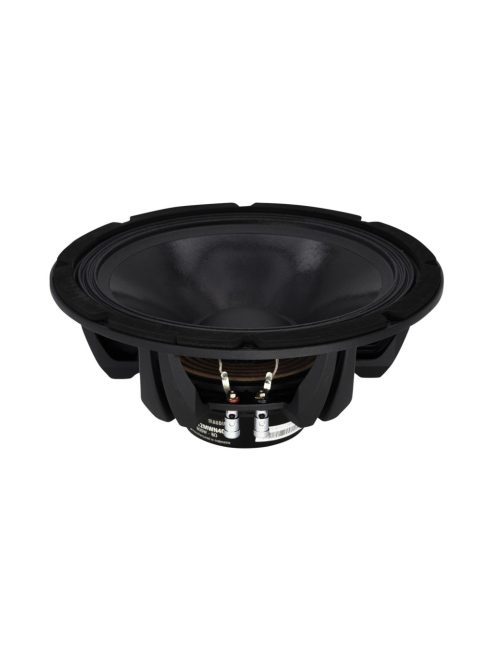

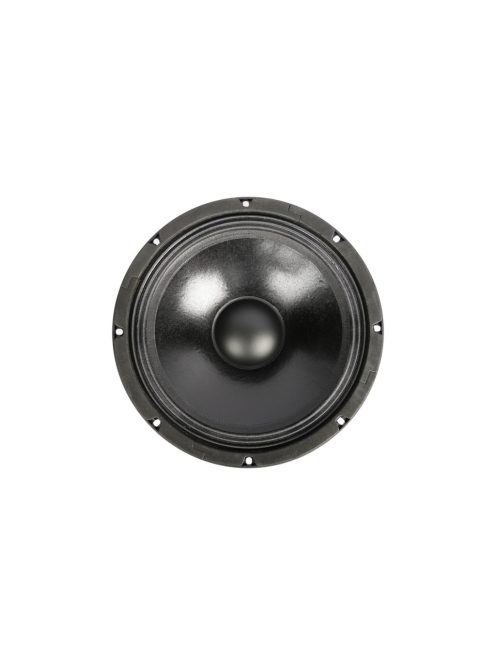

NERO-12MWN400D Mid-range Woofer
NERO-12MWN400D Mid-range Woofer
212.36 € excl. VAT

NERO-12MWN400D Mid-range Woofer

NERO-12MWN400D Mid-range Woofer
NERO-12MWN400D Mid-range Woofer
NERO-12MWN400D Mid-range Woofer
NERO-12MWN400D Mid-range Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
SB Audience
Orderable
212.36 € excl. VAT
Details

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.



Highlights

  • Proprietary cone paper material with manila pulp
  • Strong neodymium motor
  • 3" voice coil with APC (Advanced Polymer Coating)
  • Interleaved Sandwich Voice coil technology
  • Cast aluminium chassis
  • Minimum damping fiber glass voice coil former
  • Copper sleeve for low inductance and reduced distortion



Product Details

SB Audience NERO-12MWN400D Mid-range Woofer



SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.



There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

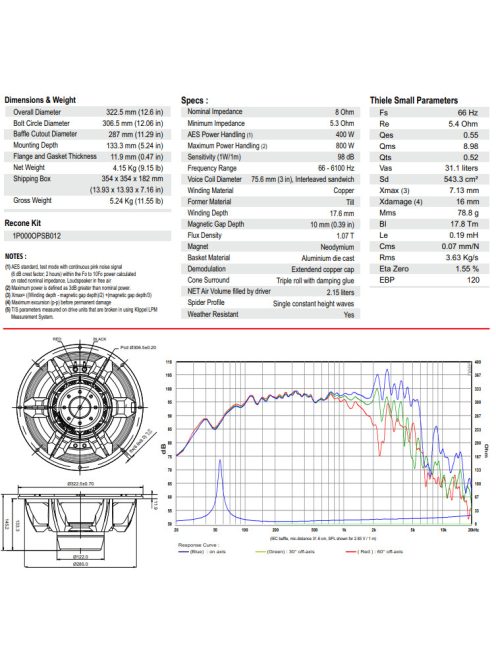

Specifications

Article numberNERO-12MWN400D
EAN8785256846290
Woofer SeriesSB Audience Nero series
Woofer TypeMid-range
Nominal Diameter12"
Power Handling (RMS)400 Watts
Power Handling (max)800 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)98 dB
Frequency Response66 - 6100 Hz
DC Resistance (Re)Re 5.4Ohm
Voice Coil Inductance (Le)0.19mH
Resonant Frequency (Fs)66 Hz
Mechanical Q (Qms)8.98
Electromagnetic Q (Qes)0.55
Total Q (Qts)0.52
Diaphragm Mass Inc. Airload (Mms)78.8g
Mechanical Compliance of Suspension (Cms)0.07mm/N
Surface Area of Cone (Sd)543.3cm²
BL Product (BL)17.8 Tm
Compliance Equivalent Volume (Vas)31.1liters
Maximum Linear Excursion (Xmax)7.13 mm
Basket / Frame MaterialAluminium die cast
Magnet MaterialNeodymium
